Extron electronics DTP T EU 332 User Manual page 11

Top
80.50 mm
(3.17")
Front

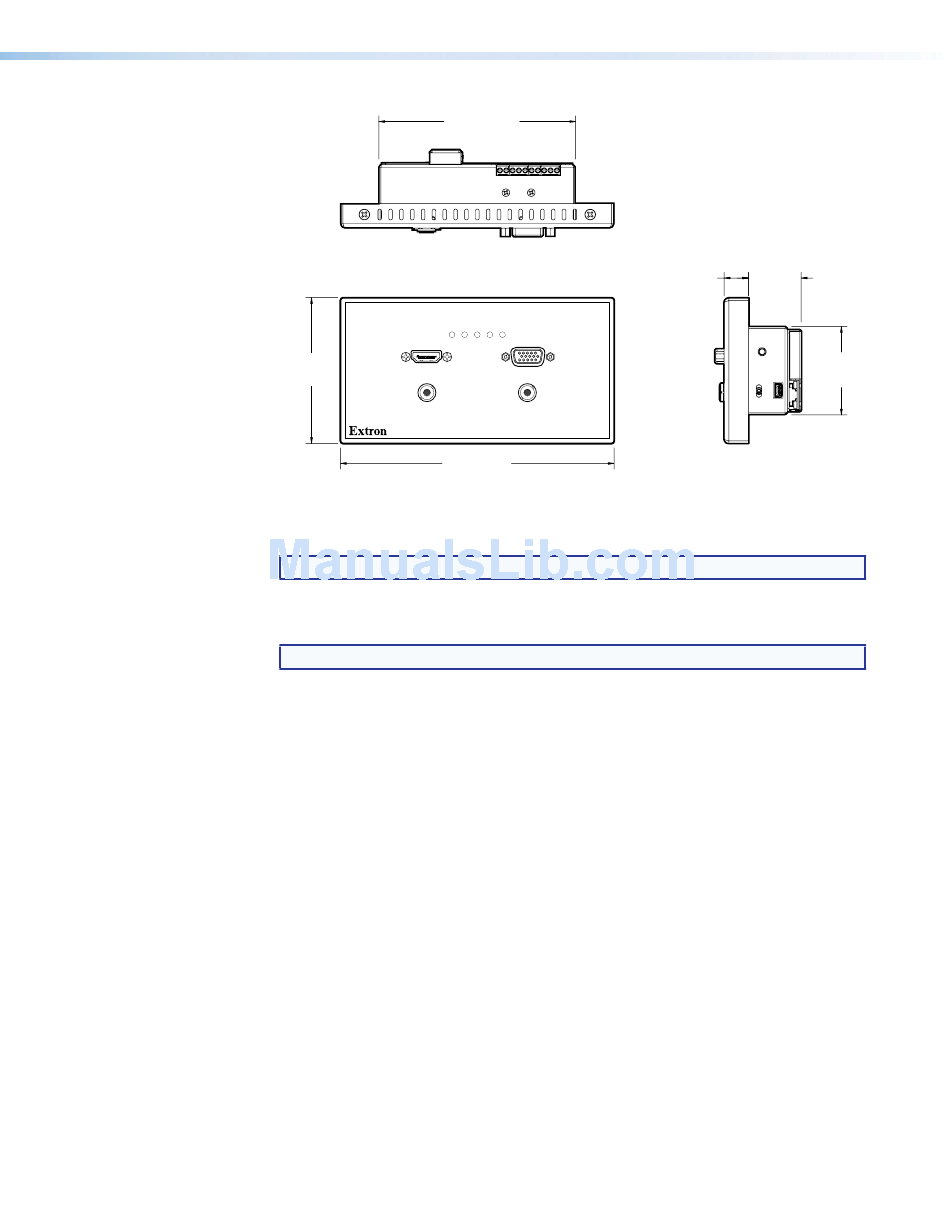

Figure 2. DTP T EU 332 and DTP T EU 232 Dimensions
Choose a location that allows cable runs without interference.
…
NOTE: Cables may need to be installed in the wall or conduits before installation.
Install the junction box or European cable channel system (see
…
Box or European Cable Channel System
NOTE: Refer to the manufacturer for more junction box installation requirements.
Route and connect cables to the rear panel connectors (see
…
Panel Features
Mount the unit into the junction box (see
…
page 9).
Connect inputs to the front panel connectors (see
…
page 10).
DTP T EU 332, DTP T EU 232, DTP T MK 332, and DTP T MK 232 • Installation and Operation
108.80 mm
(4.28")
PWR HDCP HDMI VGA AUTO
VGA IN
HDMI IN
AUDIO IN AUDIO IN
DTP T EU 232
151.50 mm
(5.97")
on page 7).
Mounting the Switching Transmitters
13.50 mm
(0.53")
RESET
HDBT
DTP
Side
Installing the Junction
on page 6).
Rear Panel and Side
Front Panel Connectors
29.4 mm
(1.16")
48.8 mm
(1.92")
CONFIG
on
on
5
