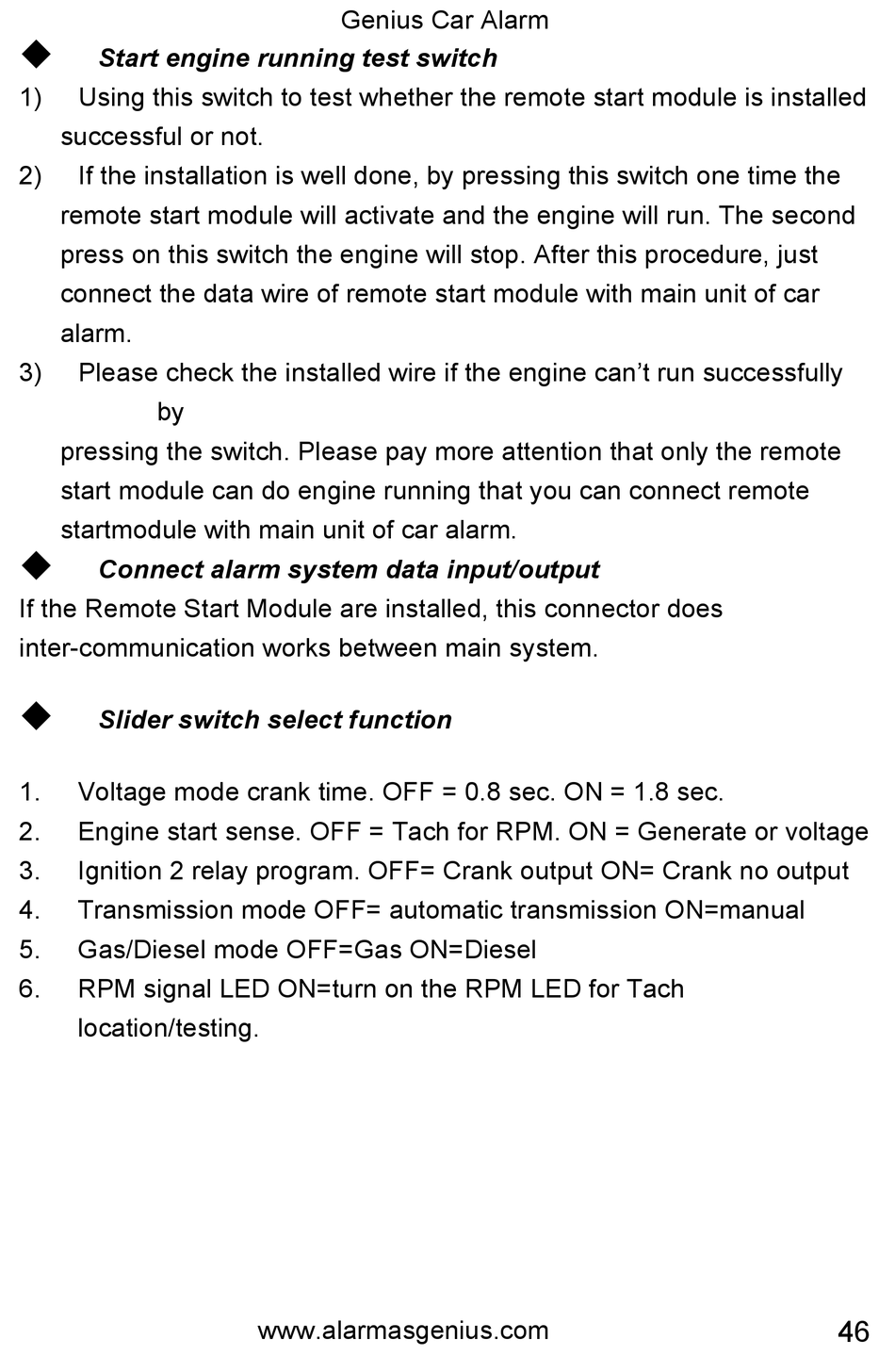

Start engine running test switch
1) Using this switch to test whether the remote start module is installed
successful or not.
2) If the installation is well done, by pressing this switch one time the
remote start module will activate and the engine will run. The second
press on this switch the engine will stop. After this procedure, just
connect the data wire of remote start module with main unit of car
alarm.
3) Please check the installed wire if the engine can't run successfully
by
pressing the switch. Please pay more attention that only the remote
start module can do engine running that you can connect remote
startmodule with main unit of car alarm.

Connect alarm system data input/output
If the Remote Start Module are installed, this connector does
inter-communication works between main system.

Slider switch select function
1. Voltage mode crank time. OFF = 0.8 sec. ON = 1.8 sec.
2. Engine start sense. OFF = Tach for RPM. ON = Generate or voltage
3. Ignition 2 relay program. OFF= Crank output ON= Crank no output
4. Transmission mode OFF= automatic transmission ON=manual
5. Gas/Diesel mode OFF=Gas ON=Diesel
6. RPM signal LED ON=turn on the RPM LED for Tach
location/testing.
