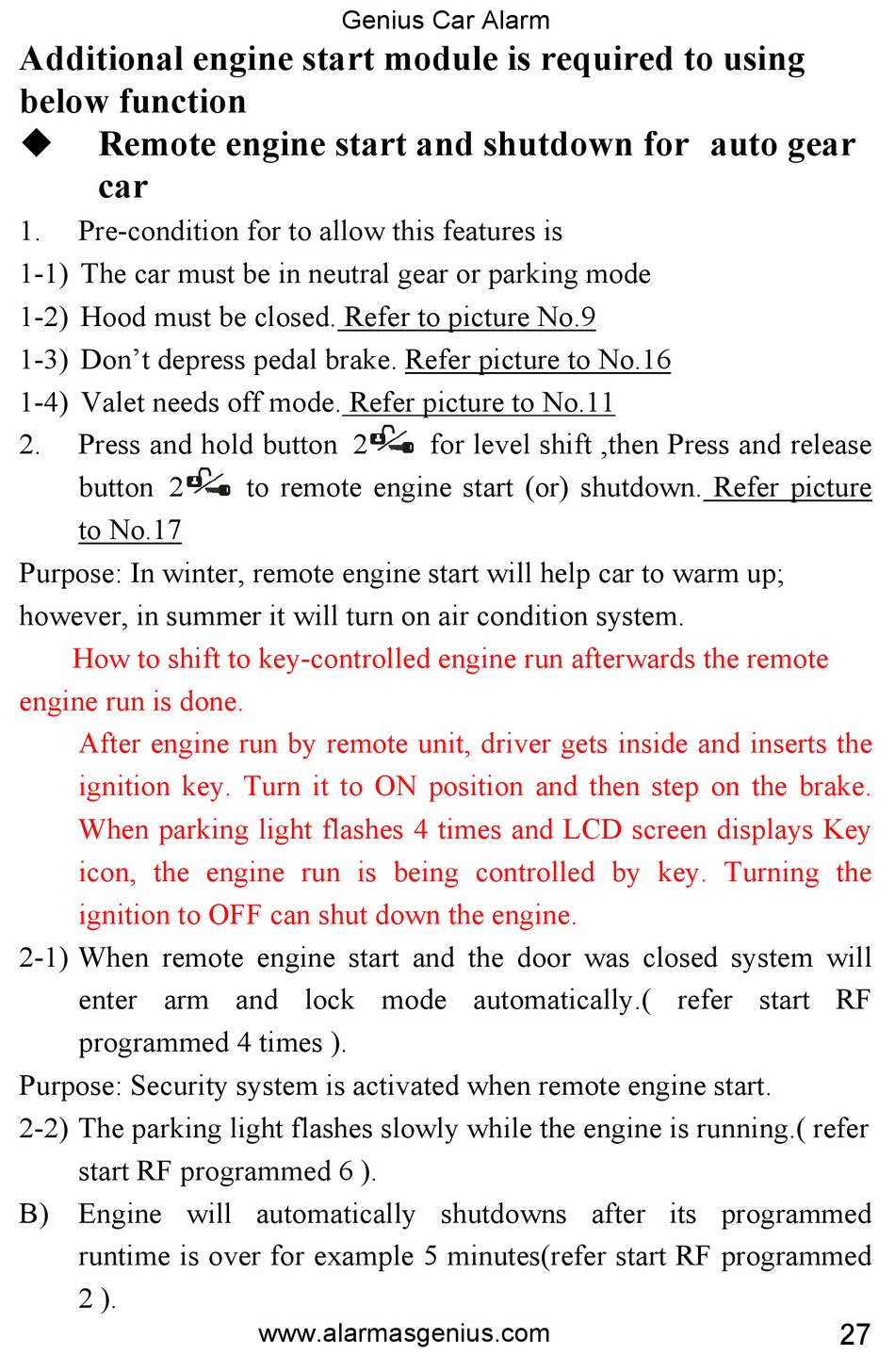

Genius 722 User Manual page 27

Additional engine start module is required to using
below function
 Remote engine start and shutdown for auto gear
car
1. Pre-condition for to allow this features is
1-1) The car must be in neutral gear or parking mode
1-2) Hood must be closed. Refer to picture No.9
1-3) Don't depress pedal brake. Refer picture to No.16
1-4) Valet needs off mode. Refer picture to No.11
2. Press and hold button 2
button 2
to No.17
Purpose: In winter, remote engine start will help car to warm up;
however, in summer it will turn on air condition system.
How to shift to key-controlled engine run afterwards the remote
engine run is done.
After engine run by remote unit, driver gets inside and inserts the
ignition key. Turn it to ON position and then step on the brake.
When parking light flashes 4 times and LCD screen displays Key
icon, the engine run is being controlled by key. Turning the
ignition to OFF can shut down the engine.
2-1) When remote engine start and the door was closed system will
enter arm and lock mode automatically.( refer start RF
programmed 4 times ).
Purpose: Security system is activated when remote engine start.
2-2) The parking light flashes slowly while the engine is running.( refer
start RF programmed 6 ).
B) Engine will automatically shutdowns after its programmed
runtime is over for example 5 minutes(refer start RF programmed
2 ).
Genius Car Alarm
to remote engine start (or) shutdown. Refer picture
www.alarmasgenius.com
for level shift ,then Press and release
27
