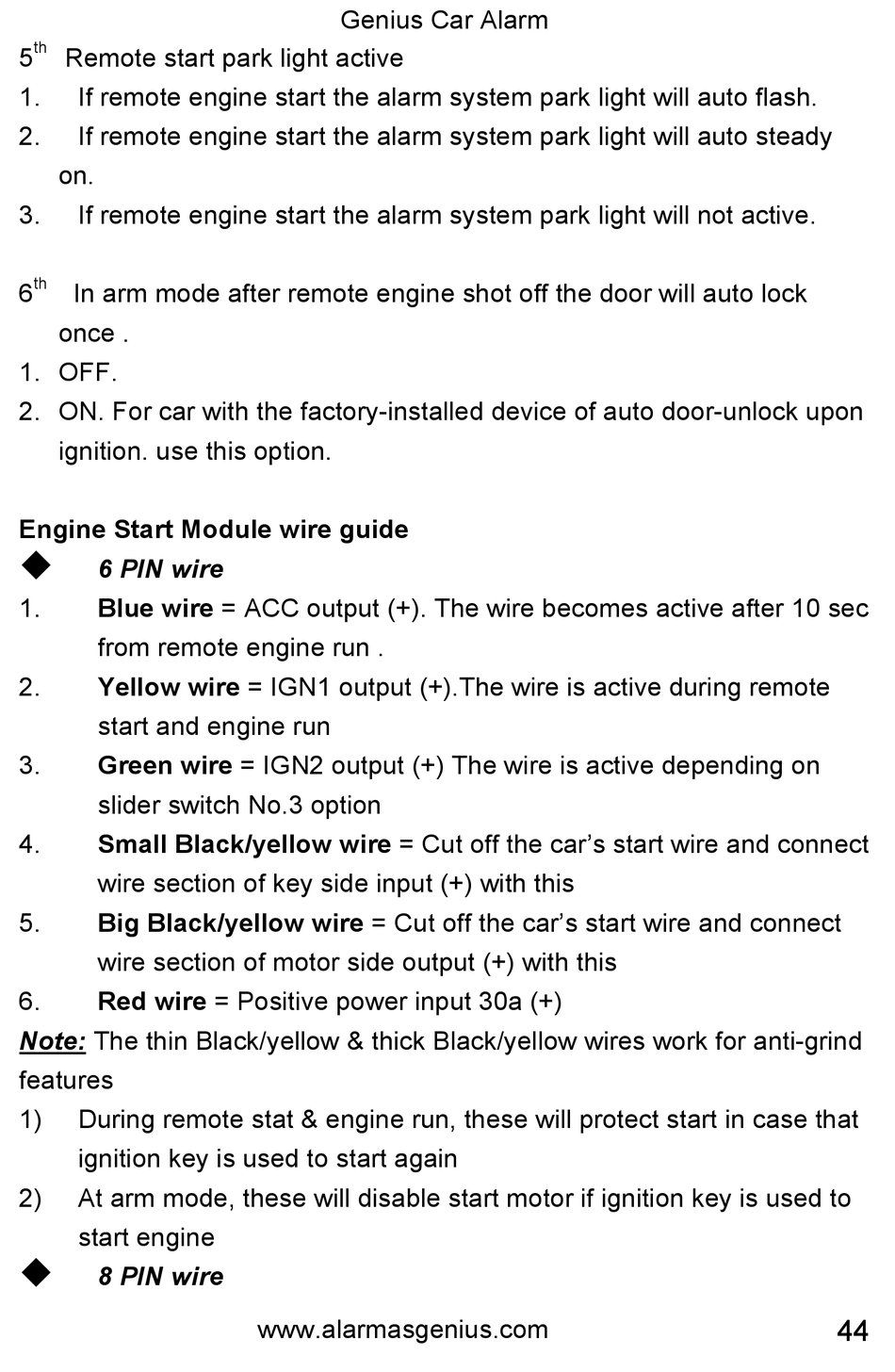

Engine Start Module Wire Guide - Genius 722 User Manual

th
5 Remote start park light active
1. If remote engine start the alarm system park light will auto flash.
2. If remote engine start the alarm system park light will auto steady
on.
3. If remote engine start the alarm system park light will not active.
th
6 In arm mode after remote engine shot off the door will auto lock
once .
1. OFF.
2. ON. For car with the factory-installed device of auto door-unlock upon
ignition. use this option.

Engine Start Module wire guide


6 PIN wire
1. Blue wire = ACC output (+). The wire becomes active after 10 sec
from remote engine run .
2. Yellow wire = IGN1 output (+).The wire is active during remote
start and engine run
3. Green wire = IGN2 output (+) The wire is active depending on
slider switch No.3 option
4. Small Black/yellow wire = Cut off the car's start wire and connect
wire section of key side input (+) with this
5. Big Black/yellow wire = Cut off the car's start wire and connect
wire section of motor side output (+) with this
6. Red wire = Positive power input 30a (+)
Note: The thin Black/yellow & thick Black/yellow wires work for anti-grind
features
1) During remote stat & engine run, these will protect start in case that
ignition key is used to start again
2) At arm mode, these will disable start motor if ignition key is used to
start engine

8 PIN wire
