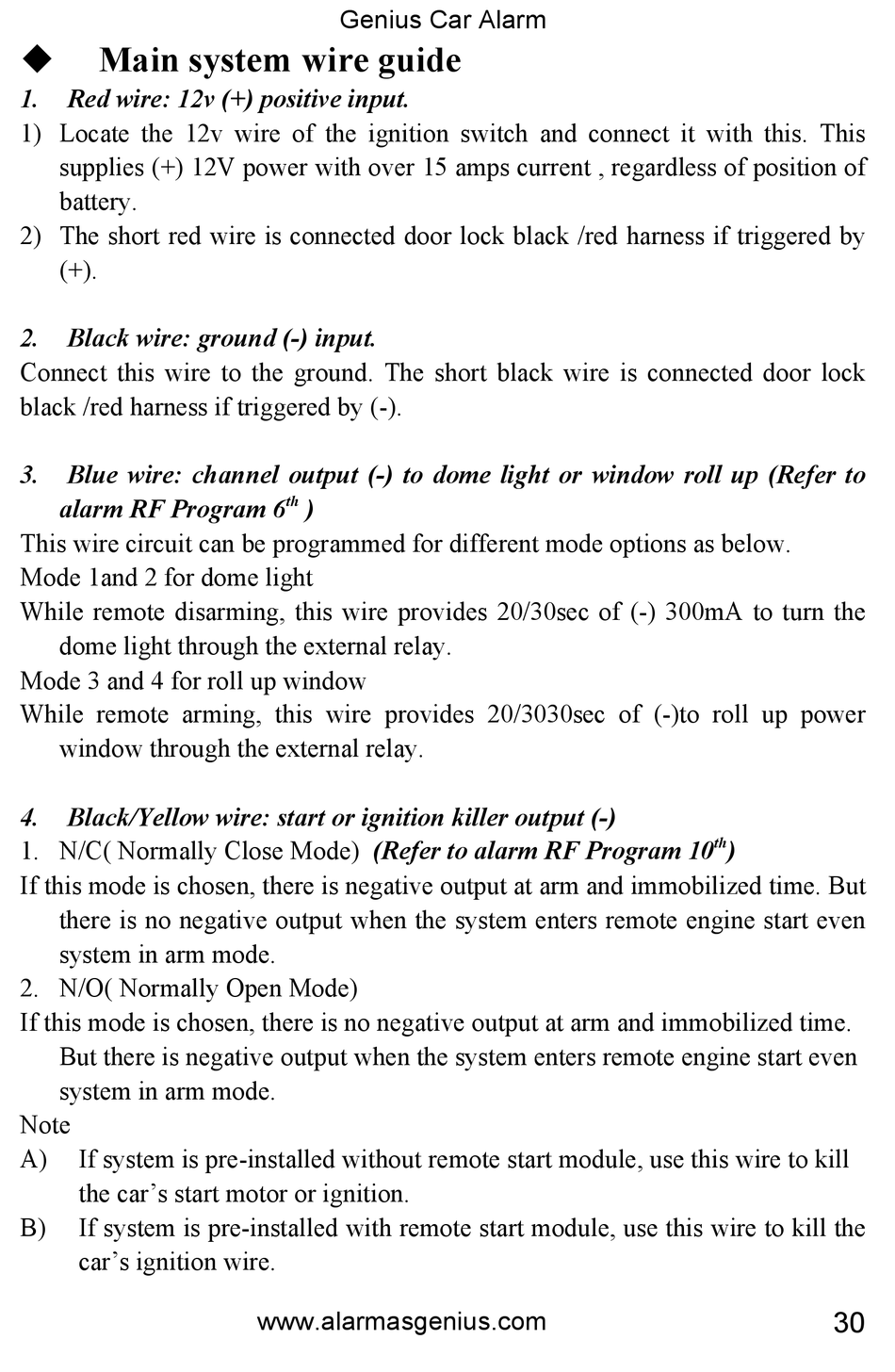

Main system wire guide

1. Red wire: 12v (+) positive input.
1) Locate the 12v wire of the ignition switch and connect it with this. This
supplies (+) 12V power with over 15 amps current , regardless of position of
battery.
2) The short red wire is connected door lock black /red harness if triggered by
(+).
2. Black wire: ground (-) input.
Connect this wire to the ground. The short black wire is connected door lock
black /red harness if triggered by (-).
3. Blue wire: channel output (-) to dome light or window roll up (Refer to
alarm RF Program 6
This wire circuit can be programmed for different mode options as below.
Mode 1and 2 for dome light
While remote disarming, this wire provides 20/30sec of (-) 300mA to turn the
dome light through the external relay.
Mode 3 and 4 for roll up window
While remote arming, this wire provides 20/3030sec of (-)to roll up power
window through the external relay.
4. Black/Yellow wire: start or ignition killer output (-)
1. N/C( Normally Close Mode) (Refer to alarm RF Program 10
If this mode is chosen, there is negative output at arm and immobilized time. But
there is no negative output when the system enters remote engine start even
system in arm mode.
2. N/O( Normally Open Mode)
If this mode is chosen, there is no negative output at arm and immobilized time.
But there is negative output when the system enters remote engine start even
system in arm mode.
Note
A) If system is pre-installed without remote start module, use this wire to kill
the car's start motor or ignition.
B) If system is pre-installed with remote start module, use this wire to kill the
car's ignition wire.
