Chapter 1
FOCUS GC Description

Column Oven

The FOCUS GC column oven, shown in Figure 1-3, is accessible opening the
column oven door by pushing the relevant button.
Refer To...Chapter 4,

User Interface

User interface, shown in Figure 1-4, has three components; a two–line display,
display LEDs showing the instrument's status and a keypad for data entry.
Refer To...Chapter 2,
32

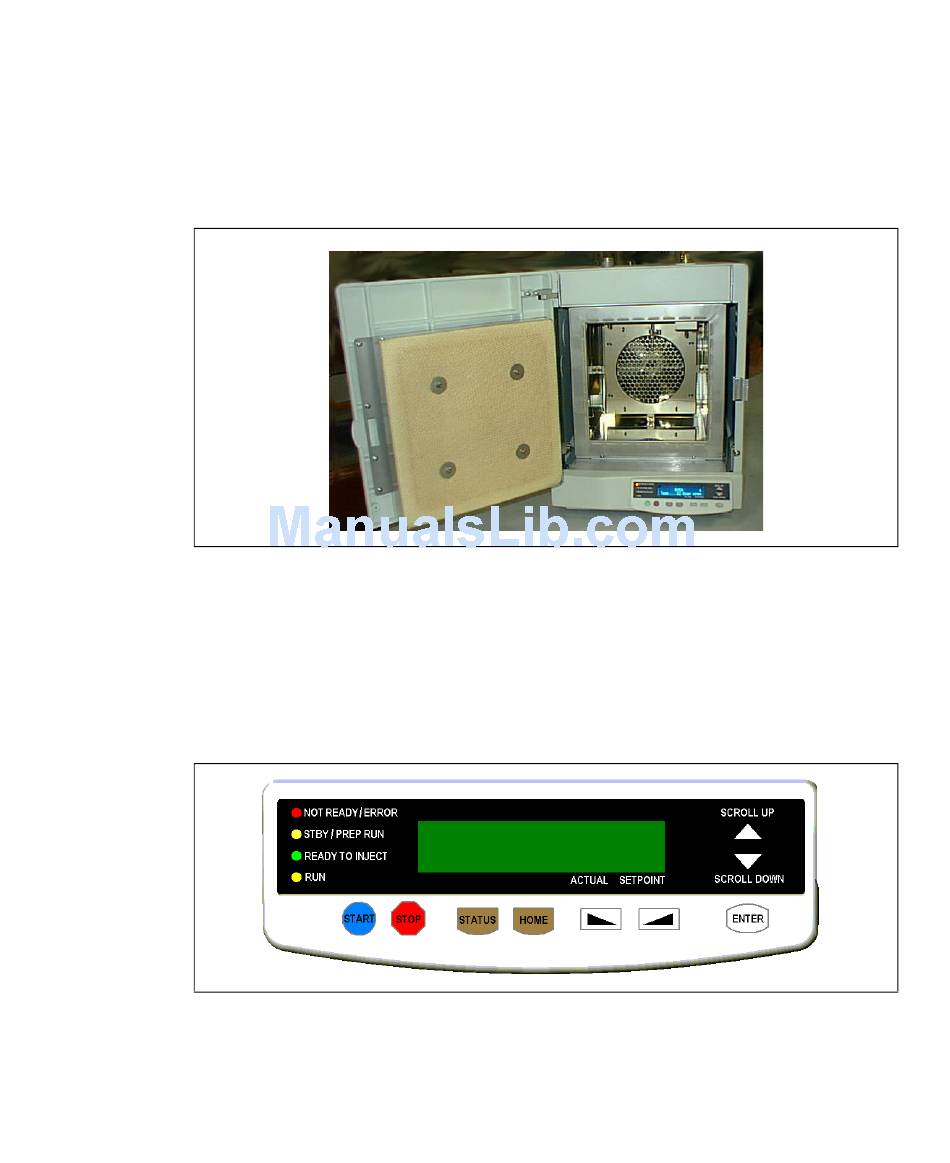

Figure 1-3. Column Oven Internal View
Column Oven
Figure 1-4. FOCUS GC User Interface
The FOCUS GC User Interface
GC Parts Description
Instruction Manual
