ELECTRICAL SYSTEM - DISASSEMBLY, INSPECTION AND REASSEMBLY

2. Alternator

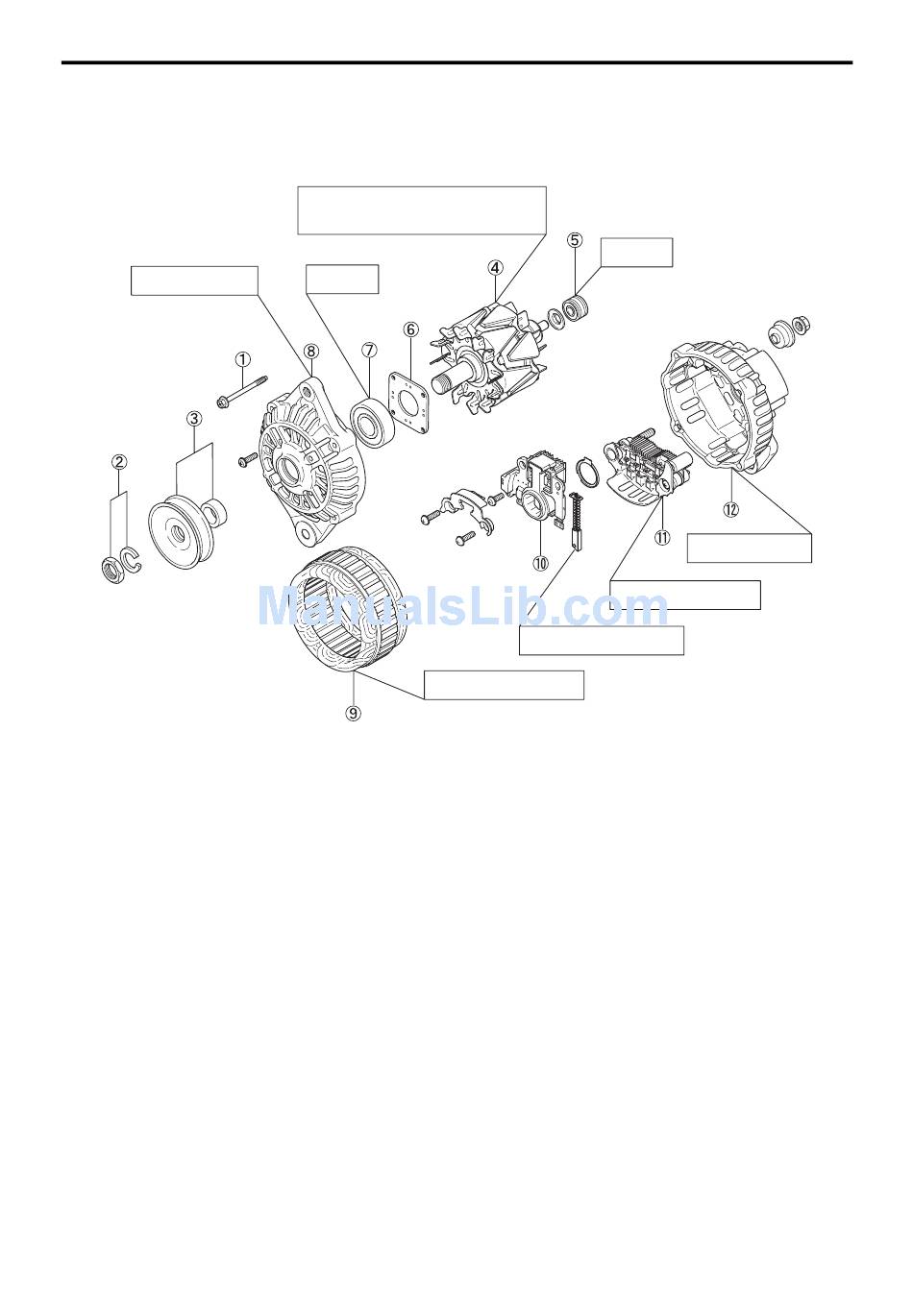

2.1 Disassembling the alternator

Cracks, Damage
<Disassembly sequence>
‡ @ Through bolt
‡ A Nut, washer
‡ B Pulley, spacer
‡ C Rotor
7 - 18
Dirty, damaged or seized slip rings;
Coil resistance
Binding
Coil open, continuity
Disassembling the alternator
‡ D Rear bearing
‡ E Bearing retainer
‡ F Front bearing
‡ G Front bracket
Binding
Cracks, Damage
Open or short circuit
Brush slidability, wear
‡ H Stator core
‡ I Regulator assembly
‡ J Rectifier assembly
‡ K Rear bracket
