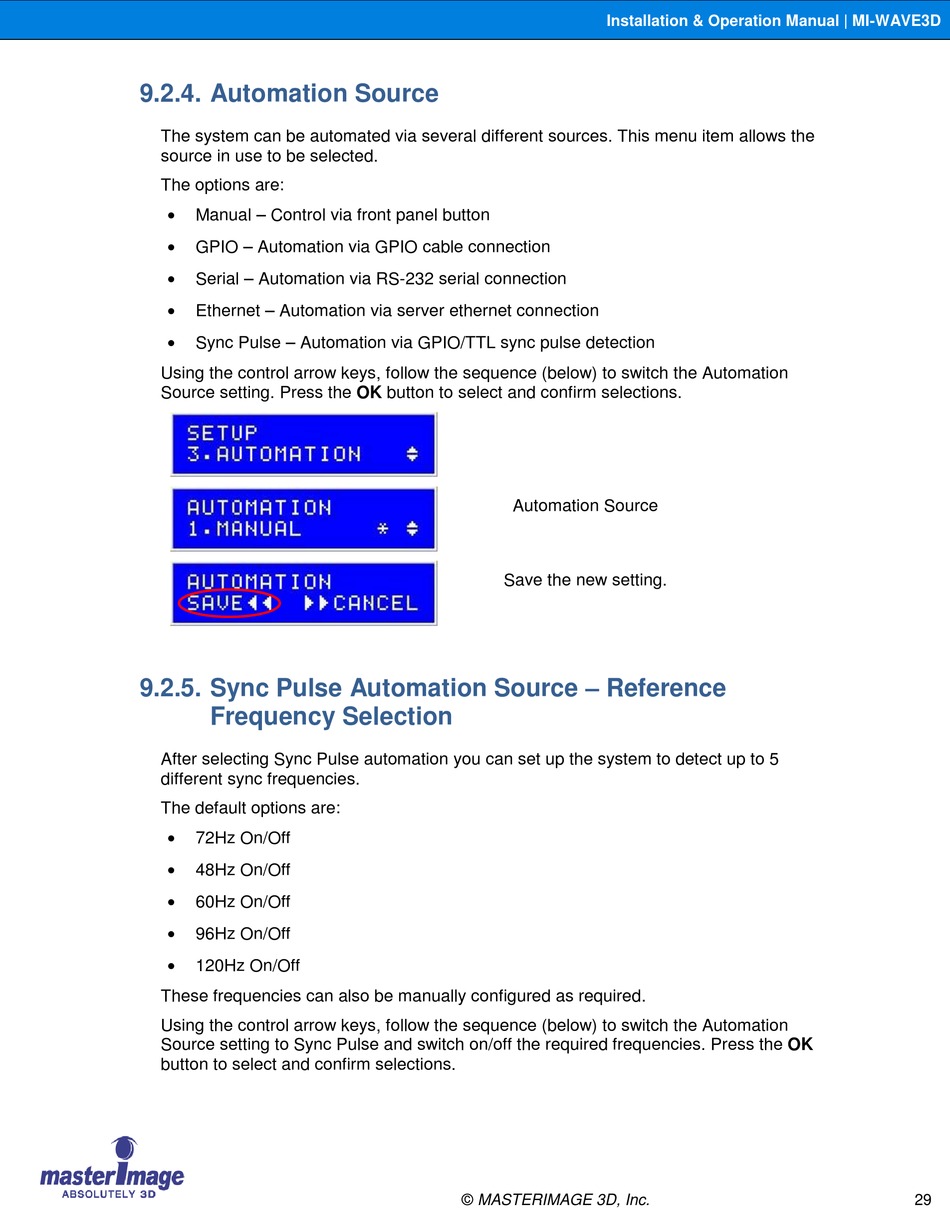

9.2.4. Automation Source

The system can be automated via several different sources. This menu item allows the
source in use to be selected.
The options are:

Manual – Control via front panel button

GPIO – Automation via GPIO cable connection

Serial – Automation via RS-232 serial connection

Ethernet – Automation via server ethernet connection

Sync Pulse – Automation via GPIO/TTL sync pulse detection
Using the control arrow keys, follow the sequence (below) to switch the Automation
Source setting. Press the OK button to select and confirm selections.
9.2.5. Sync Pulse Automation Source – Reference
Frequency Selection
After selecting Sync Pulse automation you can set up the system to detect up to 5
different sync frequencies.
The default options are:

72Hz On/Off

48Hz On/Off

60Hz On/Off

96Hz On/Off

120Hz On/Off
These frequencies can also be manually configured as required.
Using the control arrow keys, follow the sequence (below) to switch the Automation
Source setting to Sync Pulse and switch on/off the required frequencies. Press the OK
button to select and confirm selections.
Installation & Operation Manual | MI-WAVE3D
Automation Source
Save the new setting.
