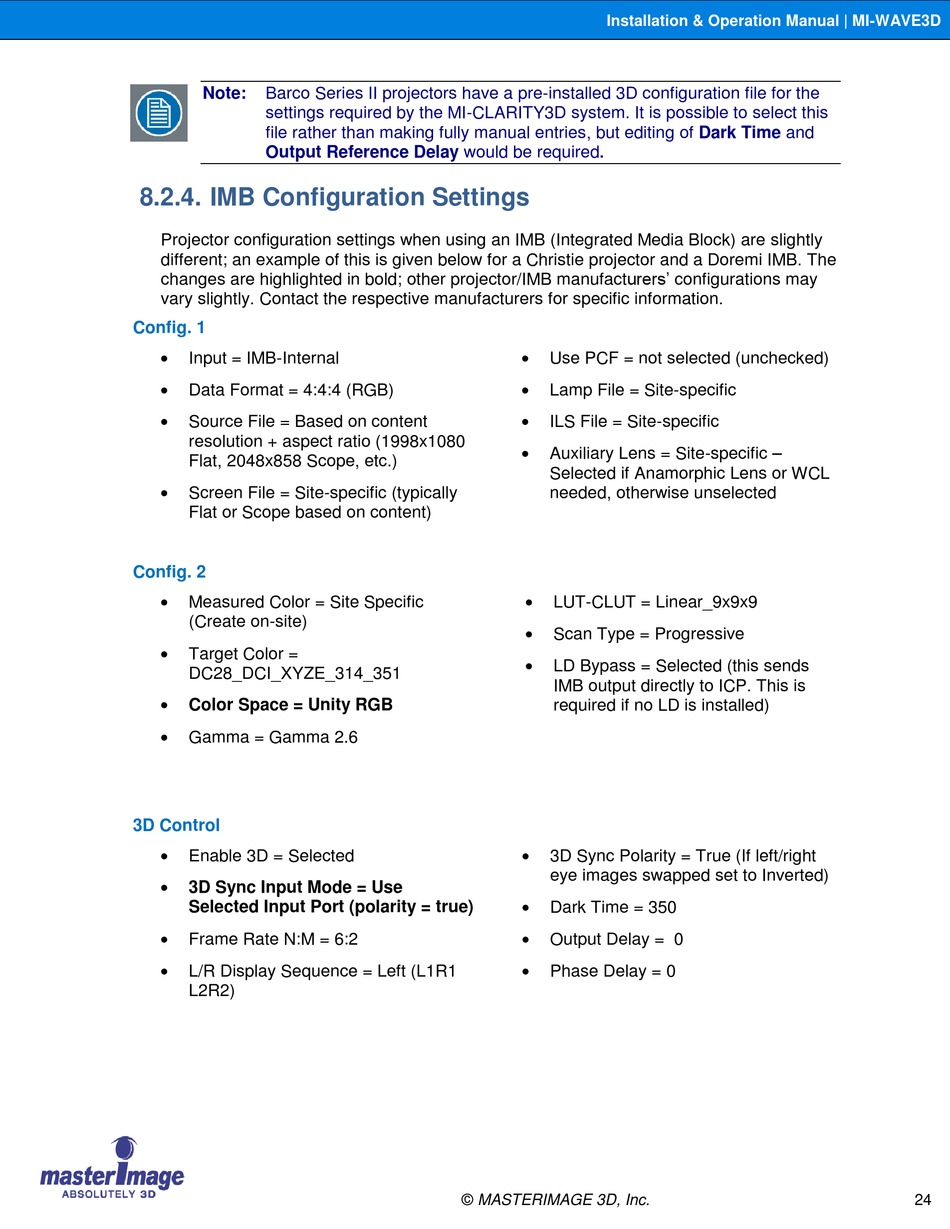

Note: Barco Series II projectors have a pre-installed 3D configuration file for the
settings required by the MI-CLARITY3D system. It is possible to select this
file rather than making fully manual entries, but editing of Dark Time and
Output Reference Delay would be required

8.2.4. IMB Configuration Settings

Projector configuration settings when using an IMB (Integrated Media Block) are slightly
different; an example of this is given below for a Christie projector and a Doremi IMB. The
changes are highlighted in bold; other projector/IMB manufacturers' configurations may
vary slightly. Contact the respective manufacturers for specific information.
Config. 1

Input = IMB-Internal

Data Format = 4:4:4 (RGB)

Source File = Based on content
resolution + aspect ratio (1998x1080
Flat, 2048x858 Scope, etc.)

Screen File = Site-specific (typically
Flat or Scope based on content)
Config. 2

Measured Color = Site Specific
(Create on-site)

Target Color =
DC28_DCI_XYZE_314_351

Color Space = Unity RGB

Gamma = Gamma 2.6
3D Control

Enable 3D = Selected

3D Sync Input Mode = Use
Selected Input Port (polarity = true)

Frame Rate N:M = 6:2

L/R Display Sequence = Left (L1R1
L2R2)
Installation & Operation Manual | MI-WAVE3D
.

Use PCF = not selected (unchecked)

Lamp File = Site-specific

ILS File = Site-specific

Auxiliary Lens = Site-specific –
Selected if Anamorphic Lens or WCL
needed, otherwise unselected

LUT-CLUT = Linear_9x9x9

Scan Type = Progressive

LD Bypass = Selected (this sends
IMB output directly to ICP. This is
required if no LD is installed)

3D Sync Polarity = True (If left/right
eye images swapped set to Inverted)

Dark Time = 350

Output Delay = 0

Phase Delay = 0
