Control Box - Front Panel; Control Box - I/O Rear Panel - Master Image MI-WAVE3D Installation & Operation Manual

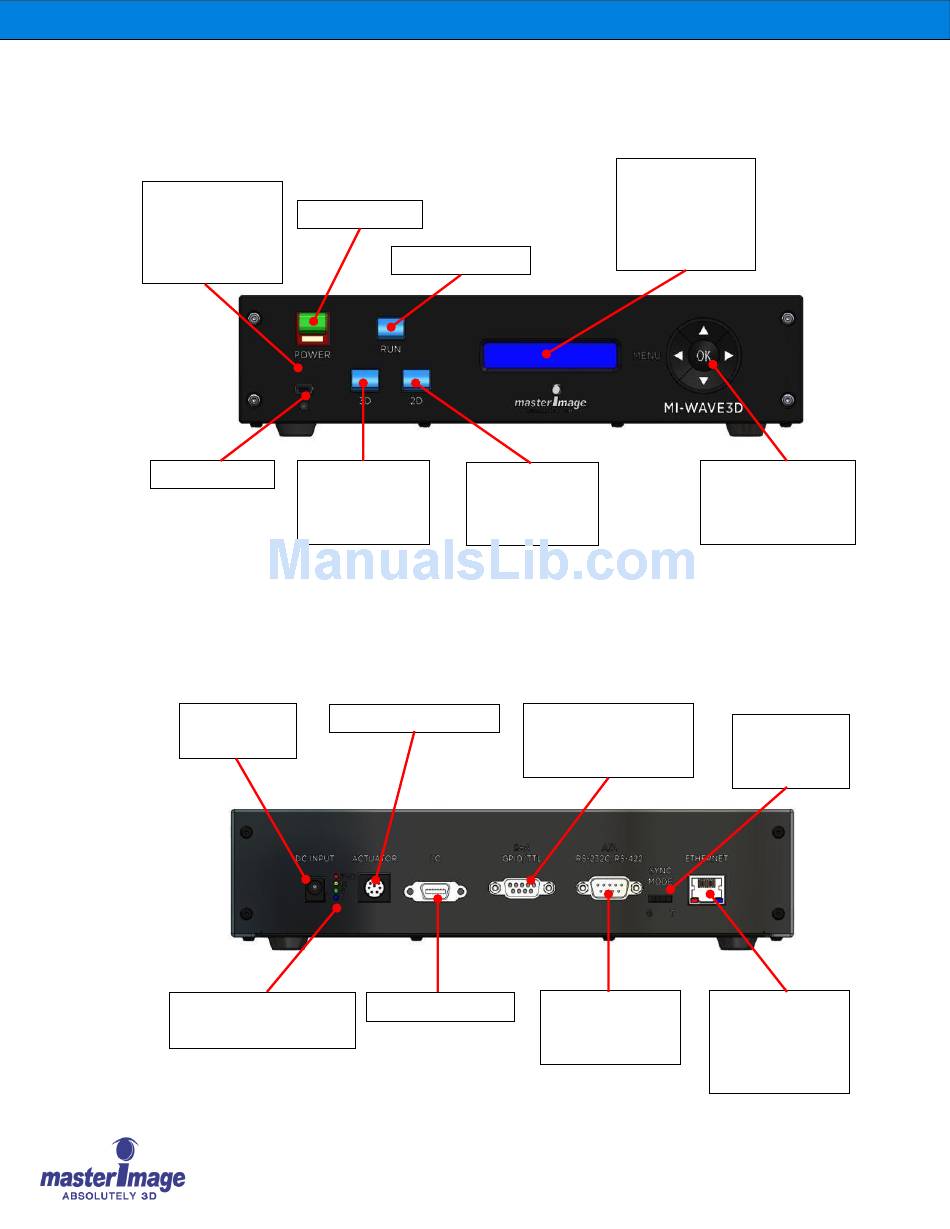

Control Box – Front Panel
5.3.
Mini USB:
Power Button
Used to upgrade
Firmware or
connect Monitor
Program
Reset Button 3D Button:
Used to move
the LCPM to the
3D position
Control Box – I/O Rear Panel
5.4.
DC Input:
DC 24V/25A
Indicator LED:
(Power, Tx, GPIO, TTL)
Run/Stop Button
2D Button:
Used to move
the LCPM to the
2D position
Connector
Actuator
Connector
LCPM
© MASTERIMAGE 3D, Inc.
Installation & Operation Manual | MI-WAVE3D
Operation LCD:
Displays
Firmware version
and Current
Operating State
Setup Keys
(MENU/LEFT, UP,
DOWN, RIGHT, OK)
GPIO/TTL Connector
Used for Automation
and Sync
RS-232C/RS-422
Connector for
Automation
Sync Mode
Switch:
GPIO or TTL
Ethernet Port:
Used for
Automation and
Connection of
Monitor Program
