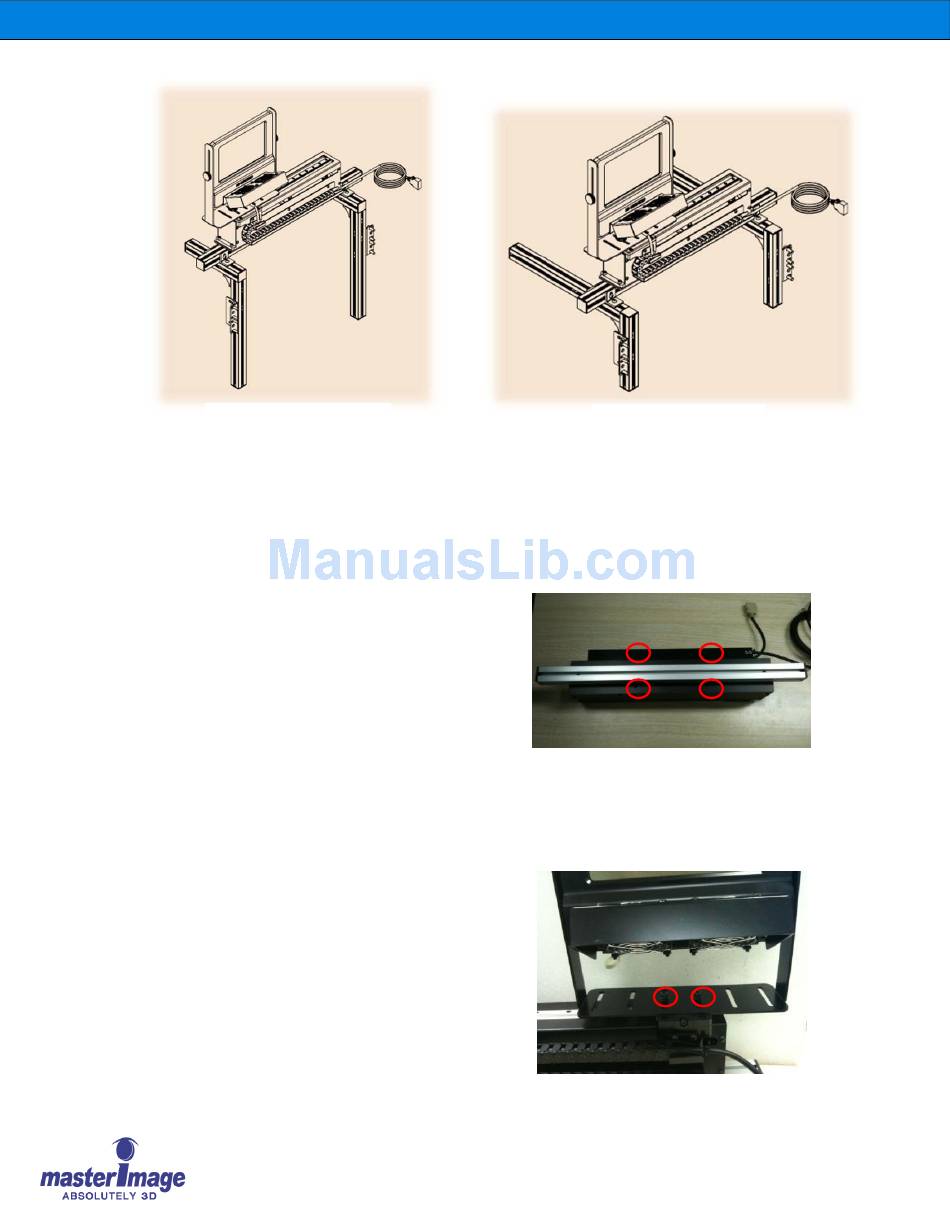

Figure 4. Short Lens
6.3.
Initial Actuator/LCPM Assembly
6.3.1. Attach Actuator to Horizontal Frame Rail
With the actuator upside-down, attach it
to the horizontal mounting frame rail with
the 4 supplied screws (Figure 6).
6.3.2. Attach LCPM Frame to Actuator
1.
Attach the LCPM supporting frame to
the top side of the actuator assembly
with the 2 supplied screws (Figure 7).
Installation & Operation Manual | MI-WAVE3D
Figure 5. Long Lens
Figure 6. Actuator Mounting
Figure 7. LCPM Frame Mounting
© MASTERIMAGE 3D, Inc.
16
