6.5.

Initial Test

6.5.1. Auto Power On

To turn on the control box power
automatically, connect the main
cable from the DC power to a
power outlet.
The LCD display panel indicates
the model name, current system
firmware version, and that it is in a
READY state (Figure 15).
6.5.2. Actuator Operation –
3D Position
Press the 3D button for 2 seconds. The
actuator moves to the 3D position and the
cooling fans start to operate.
The 3D button flashes for 10 seconds
before becoming steady (Figure 16).
6.5.3. Actuator Operation – 2D Position
Press the 3D button momentarily to switch off the button LED, then press the 2D button
for 2 seconds. The actuator moves to the 2D position and the cooling fans stop.
The 2D button flashes for 10 seconds before becoming steady.
Installation & Operation Manual | MI-WAVE3D

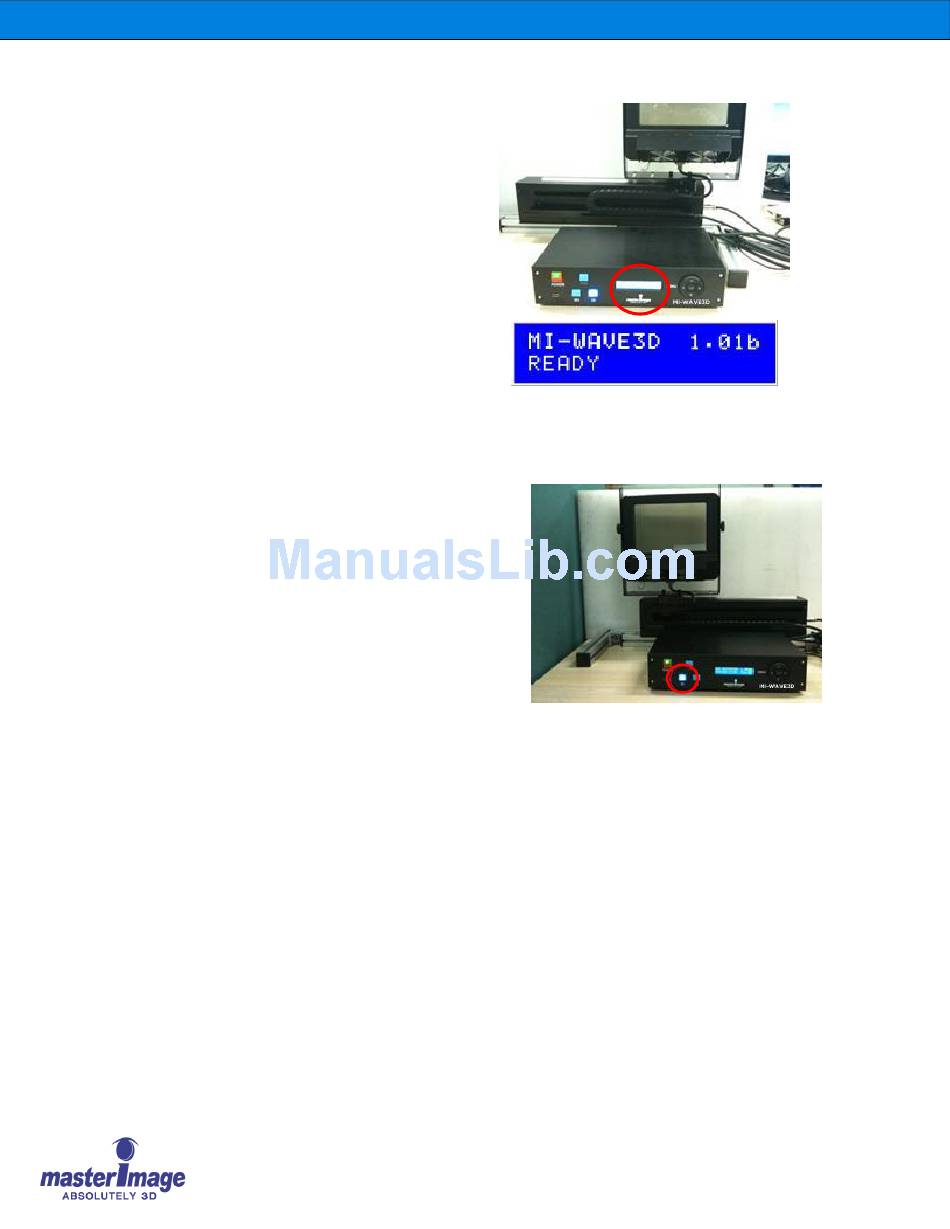

Figure 15. Auto Power On and Display Indication
Figure 16. 3D Position and Button LED
© MASTERIMAGE 3D, Inc.
Indication
