2. Connect the LCPM cable from the robot
chain to the connector on the underside
of the LCPM (Figure 8).
When installing the assembly in front of
the projector, use the screws (Figure 9) to
accurately set the height and angle of the
LCPM.
IMPORTANT The LCPM must be installed perpendicular to the light path
exiting the lens. The angle of this light may not be the same angle as the
lens itself, so observe the light path from the side to make sure the LCPM is
exactly perpendicular. See Figure 10.
LCPM Height & Angle Adjustment
© MASTERIMAGE 3D, Inc.
Installation & Operation Manual | MI-WAVE3D

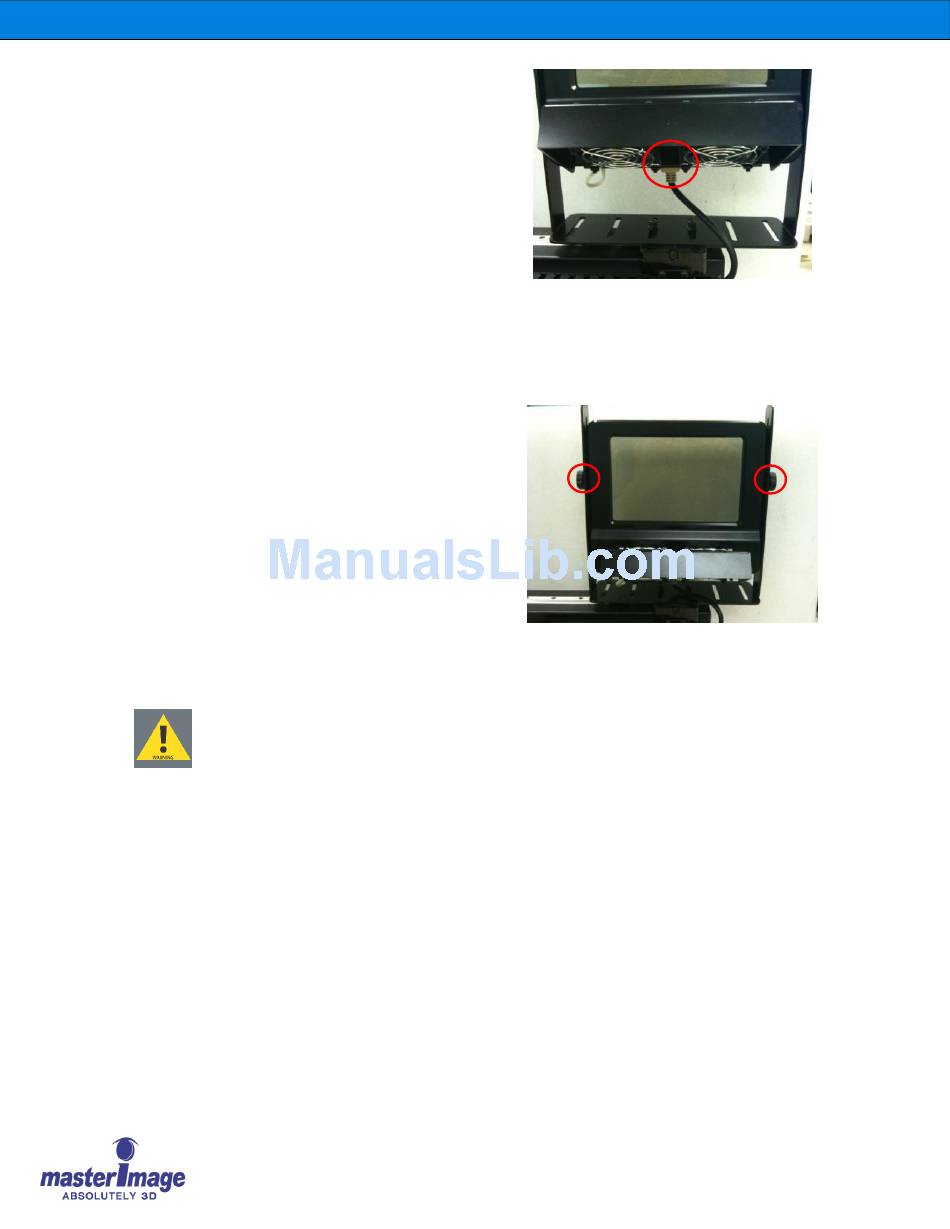

Figure 8. LCPM Cable Connection
Figure 9. Height and Angle Adjustment
Screws
