The LCPM must be adjusted
so that it is perpendicular to
the light path exiting the
lens.
6.4.

Control Box Cable Connections

Prior to making control box cable connections, mount the control box into the equipment rack
(if desired) using the rack mount accessory. (See top of page 14.)

Assemble and install rack mount assembly into rack.

Remove two screws on the bottom of each side of the control box (left and right, four
screws total).

Slide the control box into the bracket and reinstall the bottom screws on each side, to
secure the control box to the support bracket.

6.4.1. LCPM Cable

Connect the cable from the LCPM robot
chain on the actuator to the control box
(Figure 11).

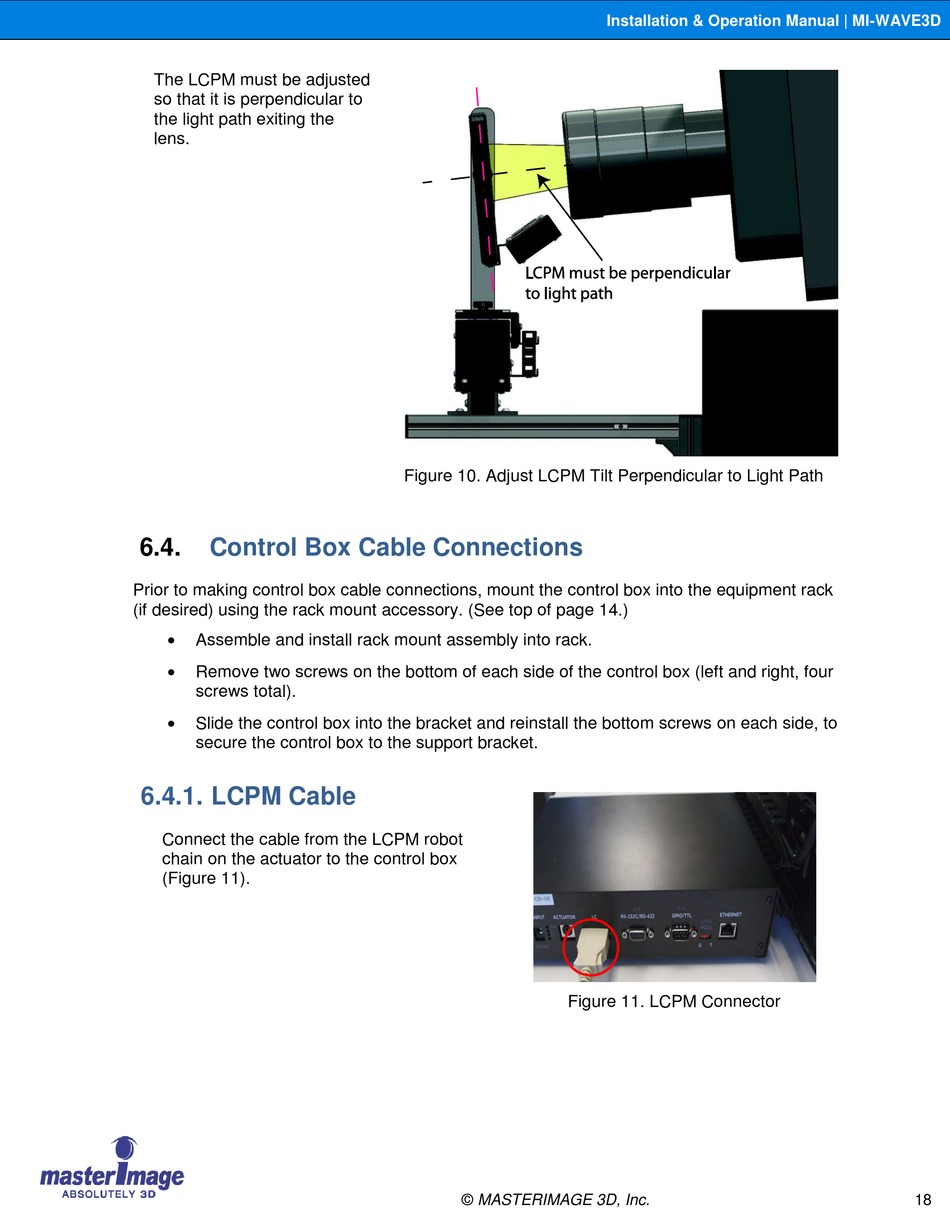

Figure 10. Adjust LCPM Tilt Perpendicular to Light Path
Figure 11. LCPM Connector
