Installation & Operation Manual | MI-WAVE3D

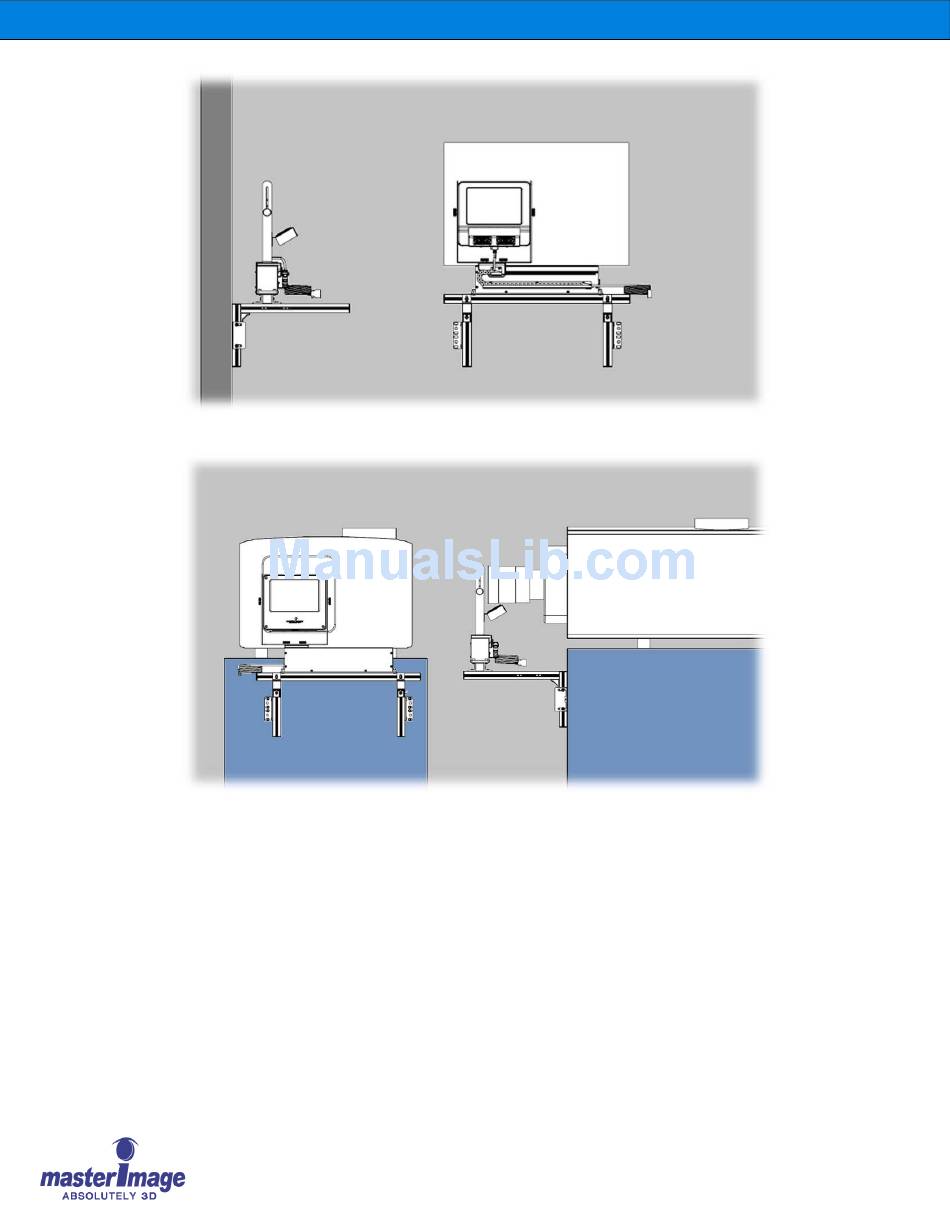

Figure 2. Port Wall Installation
Figure 3. Projector Pedestal Installation
6.2.
Projector Lens Consideration
You can orient the actuator mounting frame in two directions depending on the
amount of lens extension from the front of the projector.
In general, both NEC and Barco projectors tend to have a shorter lens design than
the Christie models. Orient the actuator mounting frame according to the installation
conditions. See Figures 4 and 5:
© MASTERIMAGE 3D, Inc.
15
