6.4.2. Actuator Connector
Connect the actuator cable to both the actuator and control box (Figure 12).
6.4.3. GPIO Cable
Connect the GPIO cable from the DLP
Digital Cinema Projector (Figure 13).
6.4.4. DC Power Cable
Connect the DC Power cable from the
power adaptor (Figure 14).

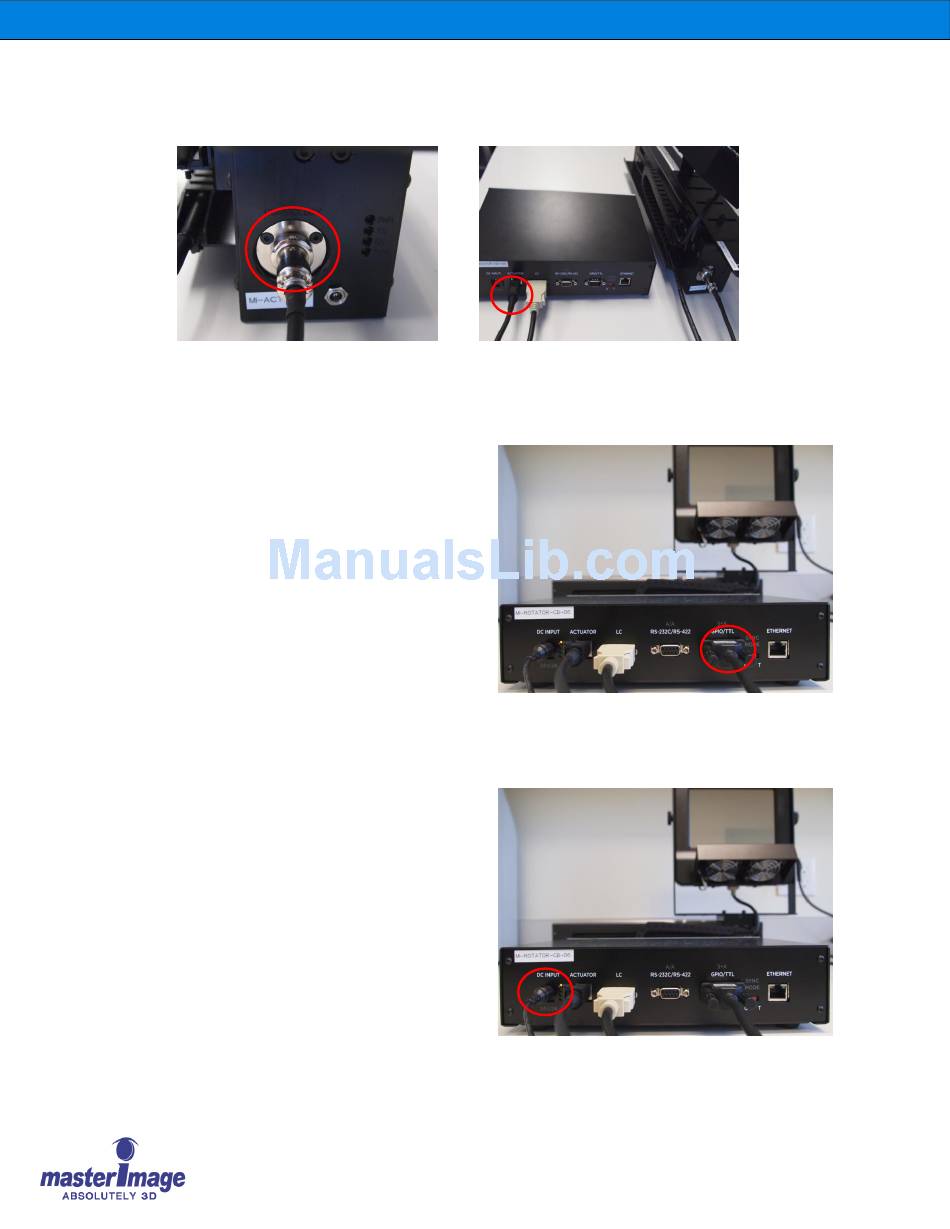

Figure 12. Actuator Cable Connections
© MASTERIMAGE 3D, Inc.
Installation & Operation Manual | MI-WAVE3D
Figure 13. GPIO Cable Connection
Figure 14. DC Power Cable Connection
19
