Markers Linking
The Markers Linking drop-down list menu is at the top of the Markers Tab Window.
The selection made here determines the behavior of markers when tracks are edited.
Markers Independent (markers are locked to the scale)
Linked to Any Track (markers follow any track operation)
Linked to Tracks without Group (markers follow any track that is not a member of a group)
Linked to 'Effects', 'Music', 'Foley' etc. (markers follow any track of groups listed here)

Jog / Shuttle

Scrub Using the Middle Mouse Button
Audio can be scrubbed by holding down the middle mouse button while the cursor is in the Timescale area and
moving the cursor left to scrub in reverse or right to scrub forward. The distance moved away from the current
play cursor position will determine the relative playback speed. When the play cursor reaches the current mouse
pointer position, or the middle mouse button is released, playback will stop.
Shuttle
The transport can be shuttled with audio output at up to 8 times speed.

Jog Settings

Jog / Scrub parameters are set in Settings > All Settings > Application > Jog / Chase.
Auto Jog on move
If a physical controller with a Jog/Shuttle wheel is available and this box is checked, then moving the jog wheel
will automatically enter Jog mode.
Auto-Solo Selection
When checked the selected track or tracks are automatically soloed when in Jog mode.
Speed ceiling
Four Radio Buttons offer the choice of 1X, 2X, 4X or 8X nominal play speed.
Sensitivity
The value typed in the box (in seconds) determines the number of seconds the transport will move per revolution
of an attached physical jog wheel.
Smoothing Filter
The value typed in the box (in video frames) determines the degree of smoothing that will be applied.
Flywheel Inertia
The slider varies the flywheel effect when jogging.
Transient response accelerator

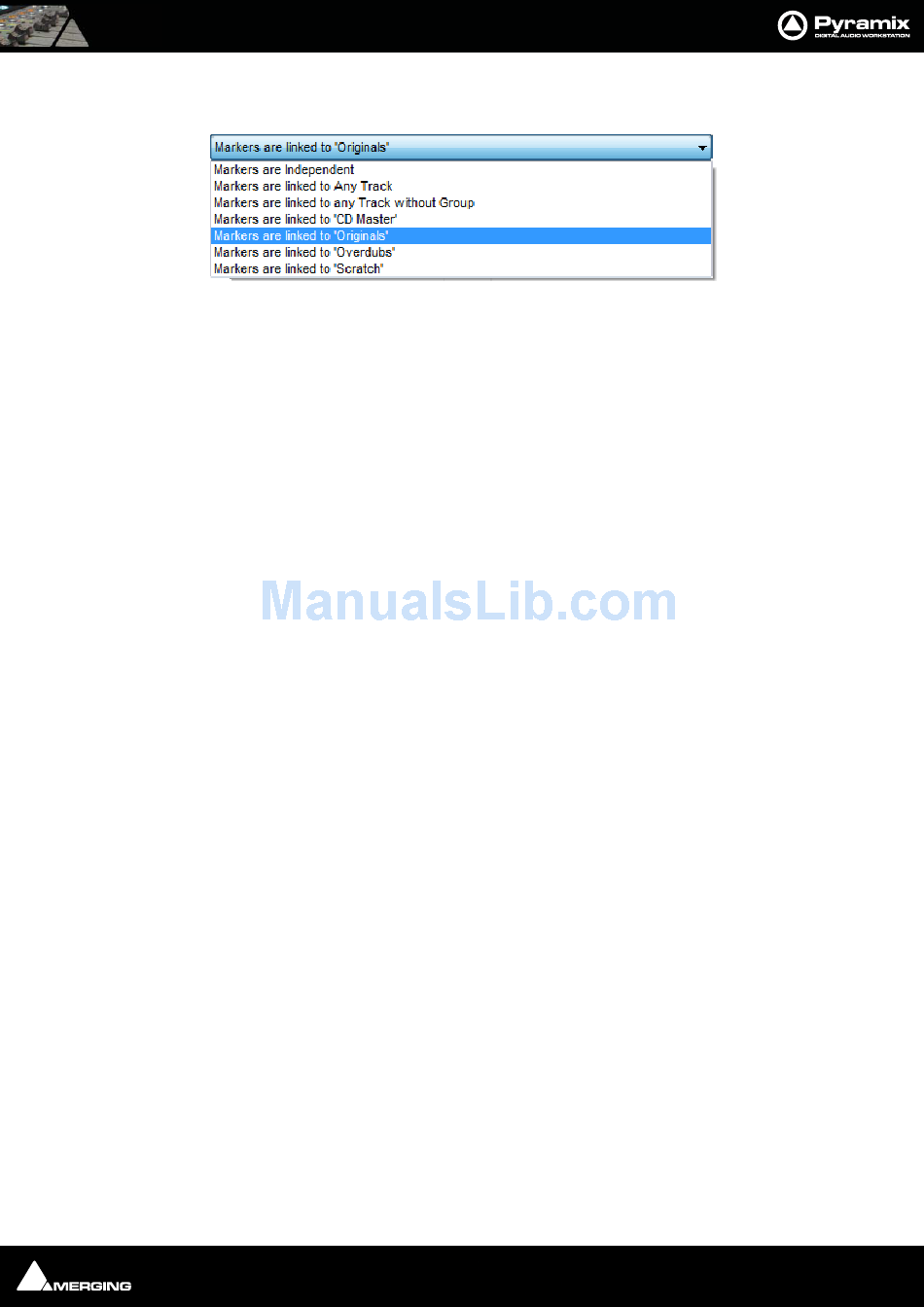

Markers Linking drop-down list menu
Transport and Navigation : Jog / Shuttle 6 - 95
