Clip Name
The name of the clip is shown unless suppressed. View > Waveform Display > Hide Clip Name when Waveform
Shown.
Clip Gain
The overall Gain applied to the clip is shown. This value is displayed in decibels.
Gain can be adjusted by selecting Clips > Clip Gain. The Gain window appears. If a Region is selected the Gain
will be changed on all clips in the selection.

Locking Clips

Clips can be protected from being displaced during editing by selecting Clips > Lock. A locked clip cannot be
moved in time or to another track until it is unlocked. Clips > Unlock. If you simply wish to prevent loss of sync
select Clips > Lock Horizontal Drag.

Grouping Clips

To Group multiple clips, whether they are on the same or different Tracks, select the clips you wish to Group
together. Now choose Clips > Group. When any clip in a Group is selected, copied, deleted or moved, all clips in
its Group will be similarly selected, copied, deleted or moved.
To ungroup previously Grouped clips to treat them separately, select the Group and choose Clips > Ungroup.
Groups can be nested. I.e. one group may be inside another group. For example a stereo or multi-channel clip is
simply a group of mono clips. Stereo or Multi-channel clips may be ungrouped into individual mono ones in the
same way as any other group.

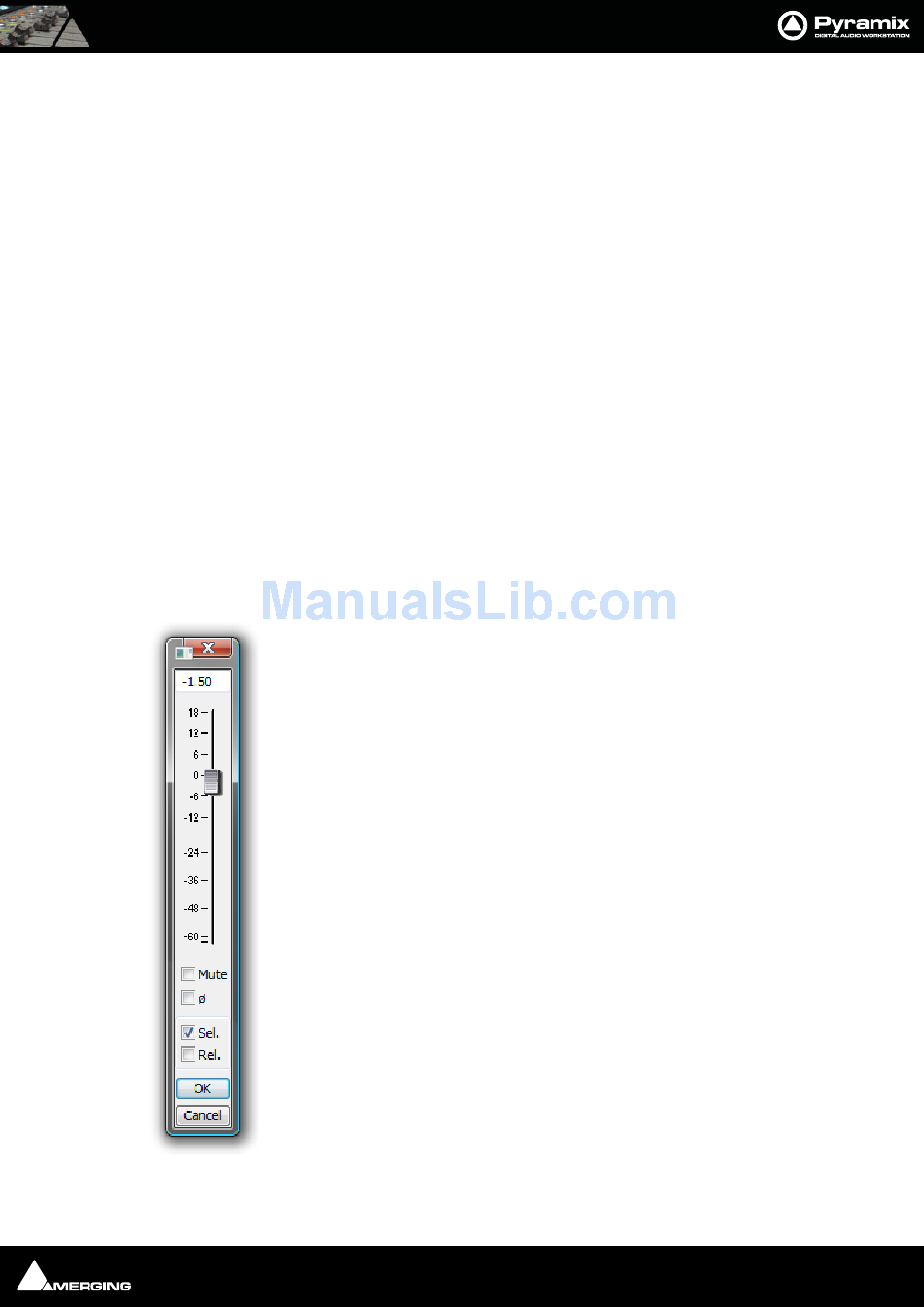

Gain Window

Gain Window
The Gain window allows the gain to be set for the current selection. The gain value can be
typed into the box at the top of the strip or set by clicking and dragging the fader
Mute when checked, mutes the selection but retains the gain value
Sel. box (Selection). When checked, the gain change will be applied to the whole selec-
tion (default is checked)
Rel. box (Relative) When checked and a series of clips are grouped, the gain change is rel-
ative to pre-existing levels
When neither box is checked any gain change is only applied to the clip which was last
right clicked (even if others are selected)
OK button makes any changes selected in the Gain window and closes it
Cancel button cancels any changes selected in the Gain window and closes it
