Sections

A text description of Section's function, e.g. Input, Dynamic etc. Also contains:
Show/Hide triangle
At top left of every Section a grey triangle toggles between showing or hiding the section. Clicking a triangle with
Shift held down opens the Section (If hidden) and hides all other Sections. Clicking a Section with Ctrl. held down
opens all Sections.
Note: Sections remain active when hidden.
Section On/Off Button
Between the Show/Hide triangle and the Section Title is the On/Off button for the Section.
Knobs
The position indicator dot lights orange when the control is at the default value. A white star appears top-left of
the scale of the last control 'touched' .

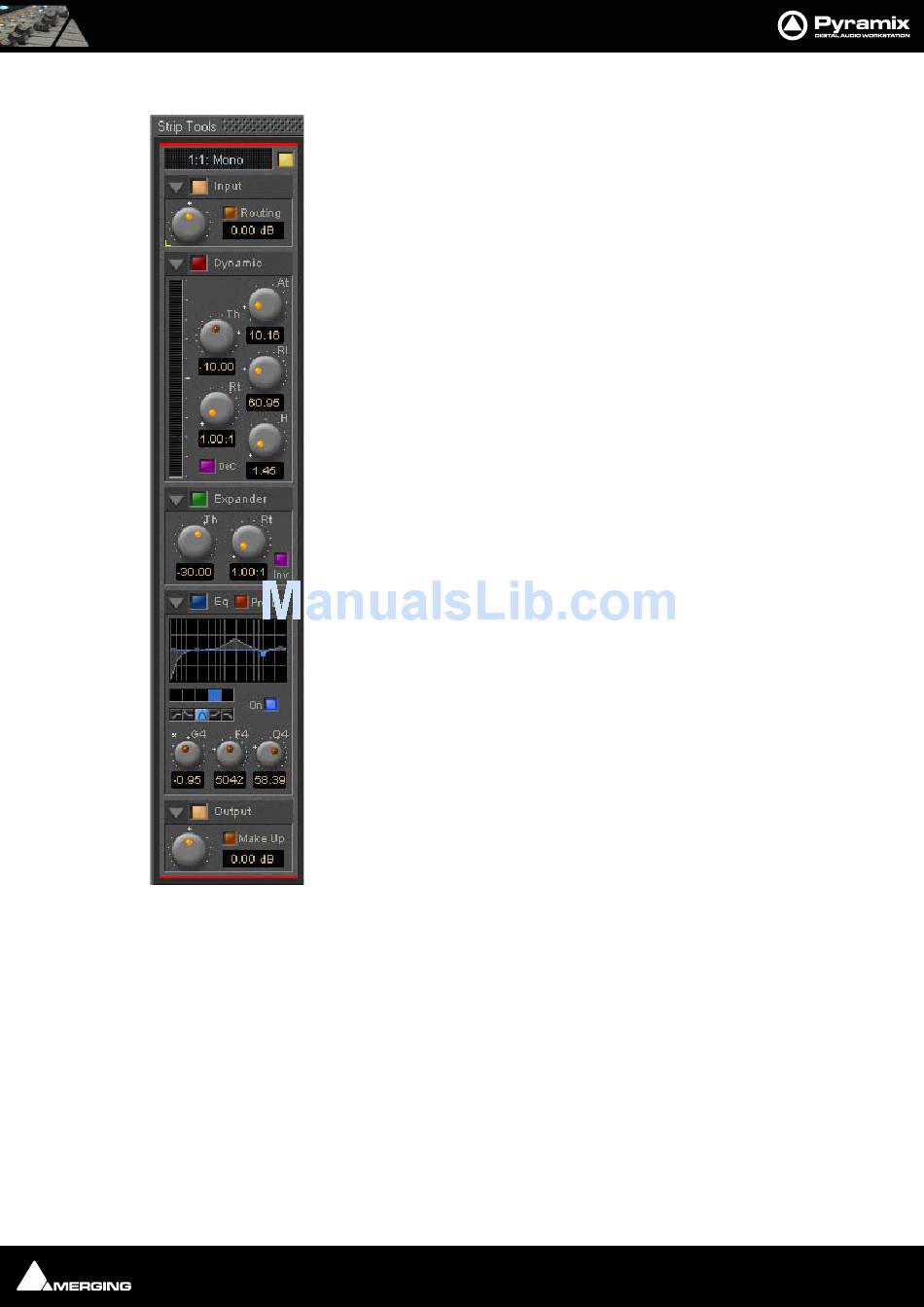

From top to bottom, Strip Tools contains the following Sections:
Input Level
This section contains the input level control and shows the name of the mixer strip
this instance of the plug-in is assigned to.
Dynamics
This section contains a compressor. It can be switched, as shown here, to act as a
decompressor.
Expander
This is a downwards expander. It can also be switched to act as an upwards expander.
Equalizer
This is a five band fully parametric equalizer. Each band can be switched to high or
low pass, shelving or peaking characteristics.
Output
This section controls the output level of the strip tool and also offers automatic gain
make up for the compressor.

Common Features

Each Section or module of Strip and Bus Tools has a number of controls in common.
Title Bar
