All Markers - Merging Pyramix User Manual

•
•
CD Disc Info
(Global – CD Header). In addition, there are similar fields for each track in the CD Track grid.
•
•
•
•
•
Markers/Tracks Relation
•

All Markers...

Shows and allows editing of all the PQ markers. Here only the PQ is modified, not the audio edit. CD Markers can
be Cut / Copied / Pasted like standard Markers by right clicking an entry.
The CD Marker List is linked to the Disc (in the case of CD) and Area (in the case of SACD). There is no longer a CD
Marker List in the Track Group tab window or a Global CD Marker List. If necessary the CD Marker List in Disc/Area
can be linked to a Track Group to associate Audio content to a CD Marker List.
Name
Name of the PQ Marker. When the markers are automatically created with the function "CD Mark Group", the stop
marker gets the same name as the start marker + a Stop suffix at the end. The "*" tells you that this marker was
auto generated.
# (Number)
UPCEAN Code Clicking in this field opens the UPC-A / EAN13 code dialog box.
UPC/EAN capture for CD/SACD Albums, Discs and Areas is handled via this dialog box.
Enable UPC/EAN Code: When ticked UPC/EAN Code is enabled.
Code Type: offers a choice of UPC-A or EAN-13 barcode formats. Enter the 11 or 12 digit Company
prefix and Product Code. The Checksum is calculated automatically and the resulting code dis-
played. Click OK to enter the result in the field.
The number of digits is checked according the type of code and the CheckSum: digit (the last one) is
automatically calculated (to ensure its validity).
Moreover, the TOC information part of a Pyramix generated CDImage file (PMI) will always contain a
13 digits UPCEAN code (left 0-padded if UPC-A type code) or no UPCEAN code at all if the field is left
blank.
Catalog Number
Title CD Title
Performer CD General Performer
SongWriter CD General Song Writer
Composer CD General Composer
Arranger CD General Arranger
Markers are linked to Clicking in the field shows a list of choices. These are the same as the Mark-
ers Tab window choices: <Independent>, Any Track or any Track without Group
CD/SACD Mastering : CD/SACD Tab Window

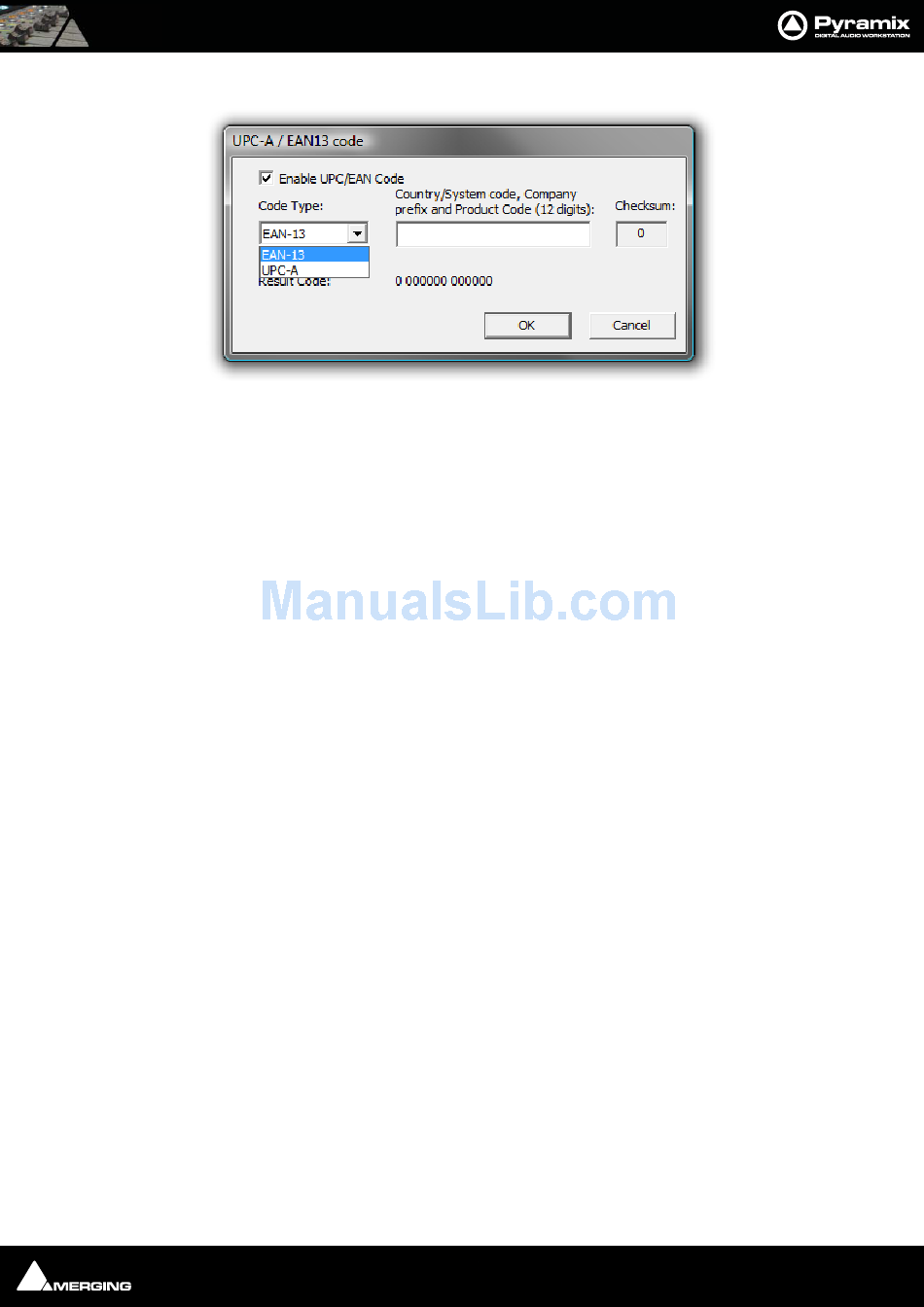

UPC-A / EAN-13 code dialog
24 - 403
