Aux Send Routing

When a Strip feeding an Aux Send Bus is of the same type as the Aux Send bus E.g. Stereo strip feeding stereo Aux
Send bus 5.1, Strip feeding a 5.1 Bus the sending Strip's Channels are automatically routed to the corresponding
Aux Send bus Channel Type. (Left to Left, Right to Right, etc...).
Where the sending Strip differs in Type to the Aux Send Bus E.g. a Stereo Strip feeding a 5.1 Aux Send Bus, the rout-
ing must be made manually. The same method is used if you wish to alter auto-routed values.
Static Channel Routing
Aux Send Channel Routing is set by clicking on the little grid icon adjacent to the knob on the Aux Bus send in the
channel strip. This opens a Channel Routing window:

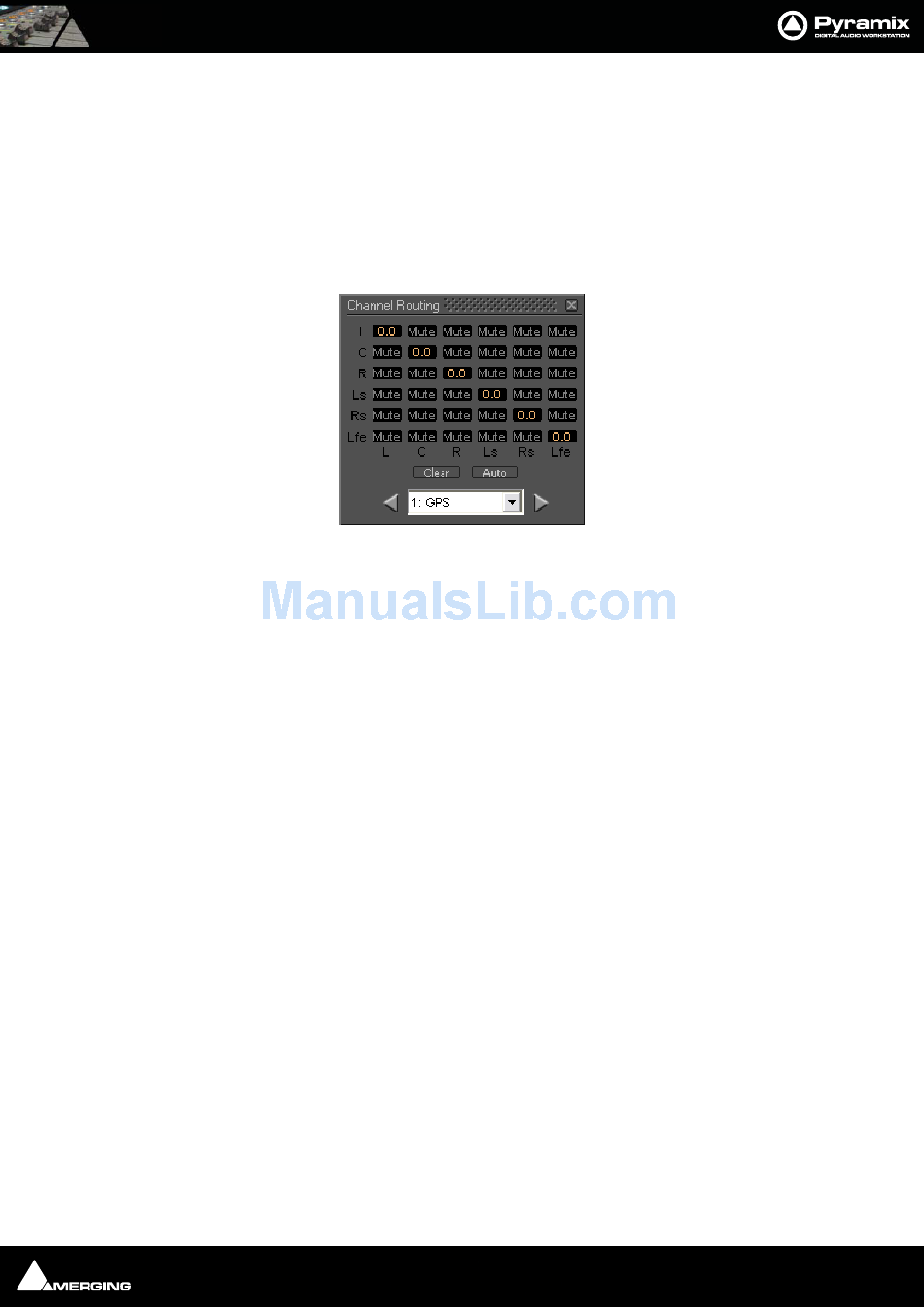

Shown here with a 5.1 channel feeding a 5.1 Aux Send Bus. Gain values can be entered for each node of the Strip/
Bus crossing. Just click on any node and enter a dB value. Enter nothing (no character) or -144.5 to reset the node
to Mute.
Clear
Auto
Channel Routing window
Clears all nodes to Mute
Sets a 1 : 1 flat routing as shown above
