Output pin just drag the Remote onto the Controller pin; The right-hand pane is a list of all currently mapped Con-
troller pins. By clicking in the Mapping Options column you can configure how the pin works.
Click OK to accept the changes to the GPI/O configuration, or Cancel to abort.
Mapping Example
Mapping Description of Example Shown Above
Input triggering:
In 1 :
The Artist opens the talkback circuit to the Mix Room
In 2 :
The Mixer (Engineer) opens the talkback circuit to the Studio
In 5 :
Dim the Monitor output section
In 6 :
Reset the solo in the Mixer
In 8 :
Put Pyramix in playback. I.e when the Artist is ready.
Output are triggered by:
Out 1 :
Control of the Record Red light.
Out 4 :
Fader start of the first mixer fader. For dB value the threshold is -90 dB
Out 5 :
Fader start of the second mixer fader. For dB value the threshold is -90 dB
Out 6 :
Control of an additional indicator in the mixer room when a mixer strip is soloed.
Monitor | Talkback | Artist | Mix Room | On
Monitor | Talkback | Mixer | Studio | On
Monitor | Volume Dim
Mixer | Mute Bus 1 | Reset Solo
Machines | Internal Machine | Play
Machines | Internal | Status | Recording
Mixer | 1 (Strip 1 - Mono) | Gain Bus 1 | Gain
Mixer | 2 (Strip 2 - Mono) | Gain Bus 1 | Gain
Mixer | Mute Bus 1 | Reset Solo
GPI / GPO Control : GPI / GPO Support

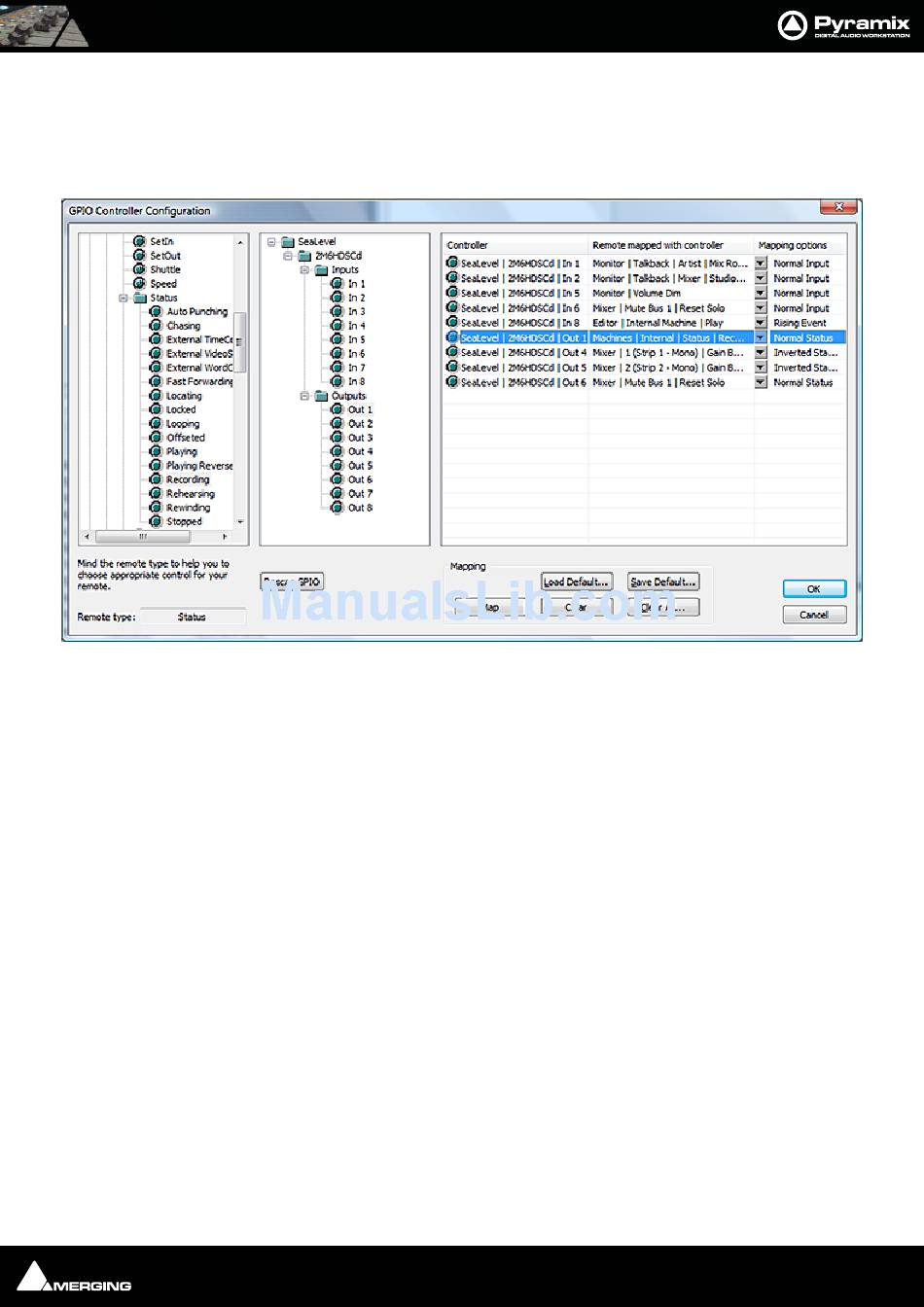

GPIO Controller Configuration dialog
