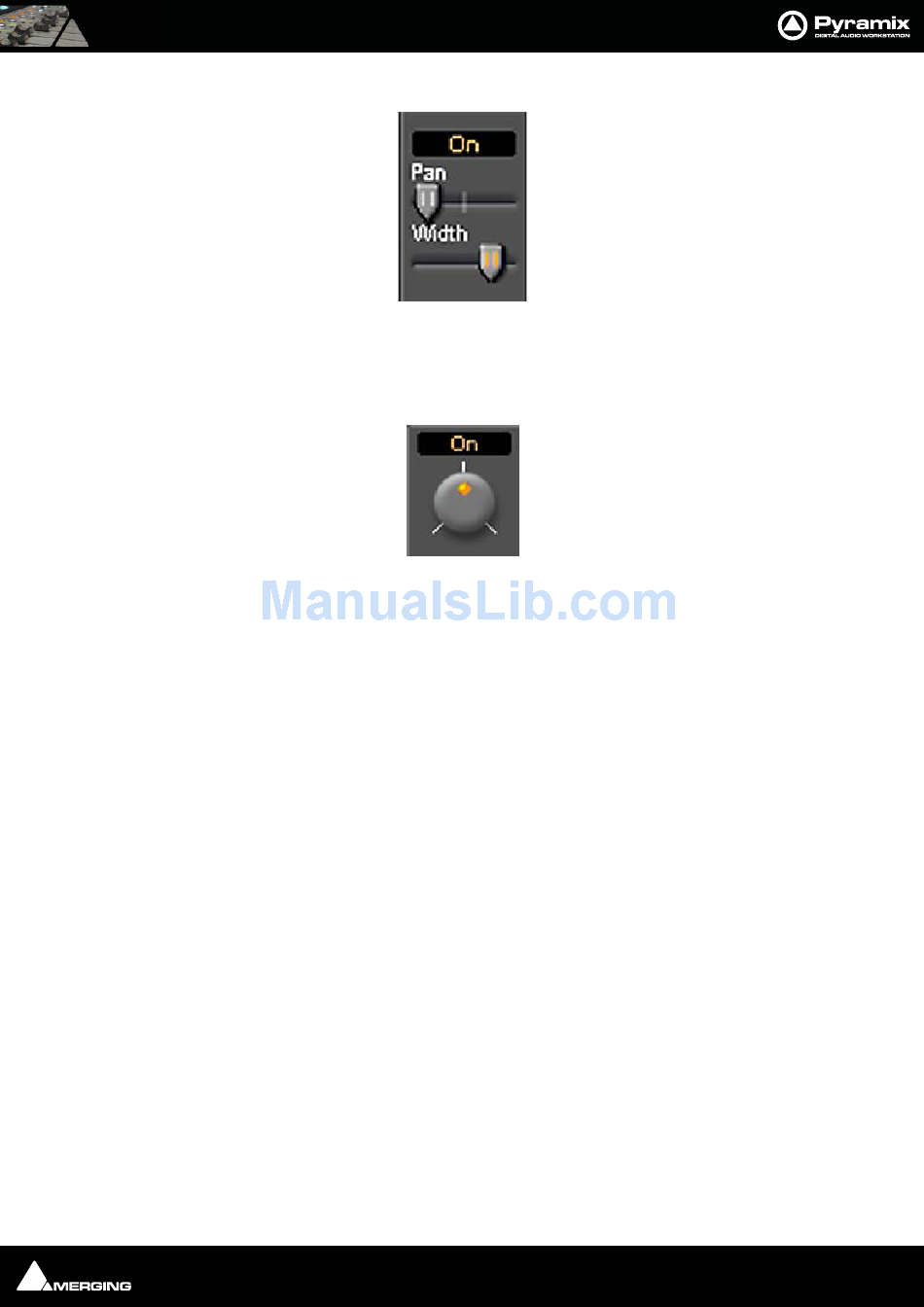

• Mode 3: Pan/Width
Pan slider acts like a normal balance control. Width alters the stereo image width from mono to 100%. If
the SHIFT key is held down while moving the Width slider the range is extended to 125%. I.e. Super wide.
This can be helpful with overly narrow images but should be used with caution.
• Mode 4: 5.x Legacy Stereo Panner Rotary
V5.x and V4.x legacy panner (for compatibility with older projects)
Default Position Indicators
Like other Pyramix mixer controls the panner knobs/pointers have an orange dot when at the default position.
Gearing
For finer adjustment hold down the Shift key whilst clicking and dragging.
Reset
To reset any of the panners to the default value simply double-click the knob/pointer.

Strip Meters

Characteristics
Meter ballistics and other parameters may be adjusted. Please see Level Meter on page 513
Peak Reset
To Reset Peak Hold and Overload for the entire mixer hold down P when the Mixer is activated.
To Reset the Peak Hold and Overload for a specific Strip or bus Click on the lit Overload LED.
To Reset the Peak hold and Overload of every Strip and Bus Ctrl + Click any Overload LED.
