Pyramix Virtual Studio Overview

Pyramix Virtual Studio is a powerful and flexible Digital Audio Workstation (DAW) integrating hard disk record-
ing and editing, digital audio mixing, effects processing, machine control, video, and CD-R mastering.
Pyramix runs on the Merging Technologies Mykerinos hardware platform. Each Mykerinos board is capable of
up to 128 channels of 24-bit digital audio, 64 recording and 64 playback. External access to these 128 channels is
determined by your choice of physical inputs and outputs to the Mykerinos board.
MassCore is scalable from 16 to 384 Live I/O (768 simultaneous) with a massive bus structure. (For now this is lim-
ited in code to a total of 512 at 1FS (256@2FS, 128@4FS, 64@8FS).
With multiple boards the Pyramix workstation is capable of up to 384 channels of 24-bit digital audio. External
access to these inputs and outputs is determined by your choice of daughterboard(s). Note that whilst the ADAT
daughterboard continues to function normally in HDTDM (64 bus) mode it cannot be used for input when in
XDTDM (128 bus) mode and is only capable of 8 outputs via Optical Output A with the same 8 duplicated on Opti-
cal Output B.
WARNING! The original ADAT Daughterboard requires modification before use with XDTDM mode. Failure to do
this may result in data loss. Please contact your Merging Technologies Sales Partner to arrange a modification.

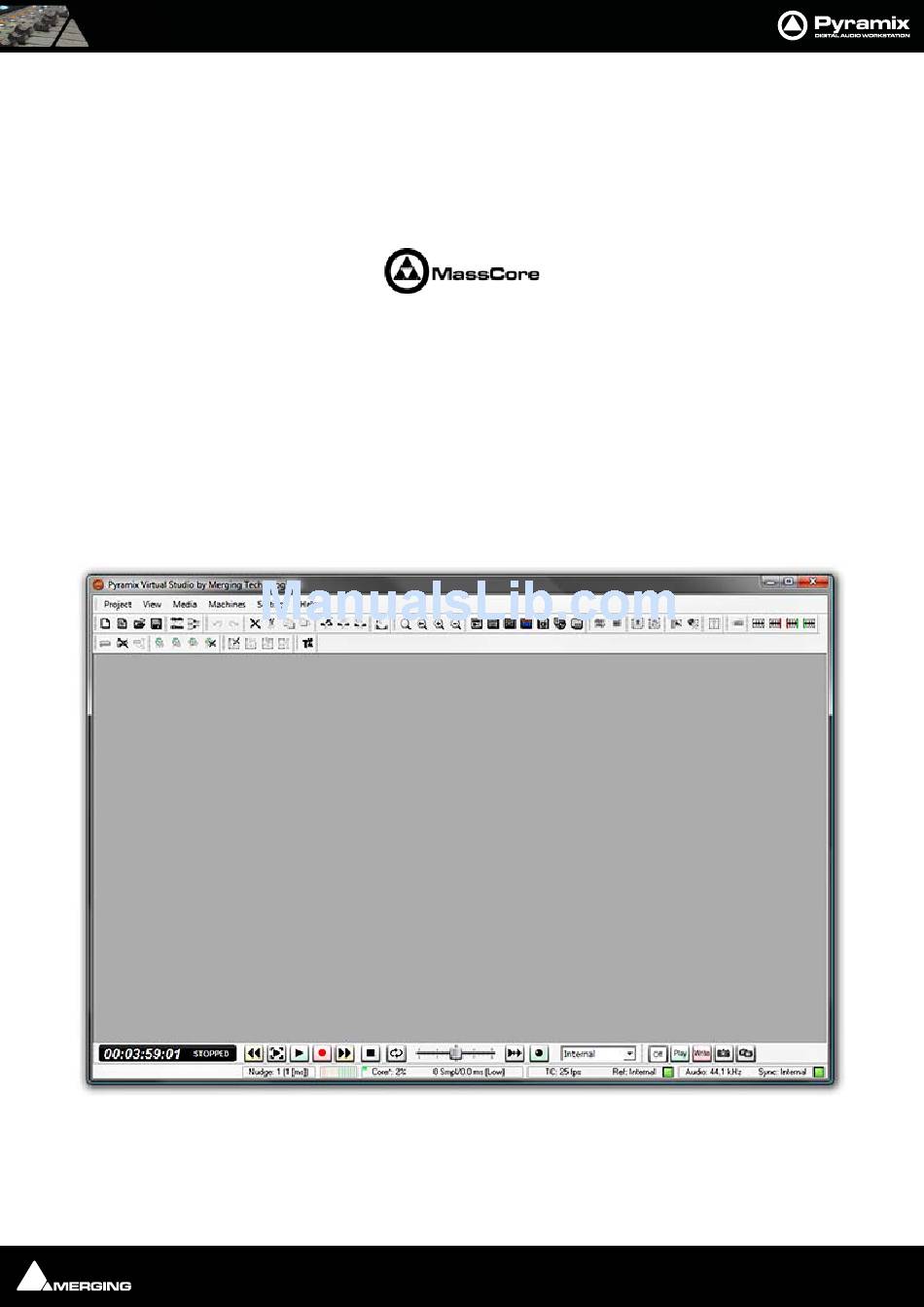

Program Window

The main Pyramix Virtual Studio by Merging Technologies program window appears when the program is
launched. It has dockable Toolbars across the top with a Transport bar and status information at the bottom. This
main window can be resized, moved, minimized or maximized with the conventional Windows control boxes.
Introduction : Pyramix Virtual Studio Overview
Pyramix Program Window
