Epson Research and Development

Vancouver Design Center

3 Installation and Configuration

The S5U13706P00C100 is designed to support as many platforms as possible. The

S5U13706P00C100 incorporates a DIP switch and three jumpers which allow both the

evaluation board and S1D13706 LCD controller to be configured for a specified evaluation

platform.

The S1D13706 has configuration inputs (CNF[7:0]) which are read on the rising edge of

RESET#. In order to configure the S1D13706 for multiple Host Bus Interfaces a ten-

position DIP switch (S1) is provided. The following figure shows the location of DIP

switch SW1 on the S5U13706P00C100.

S5U13706P00C100 Evaluation Board User Manual

Issue Date: 2009/03/03

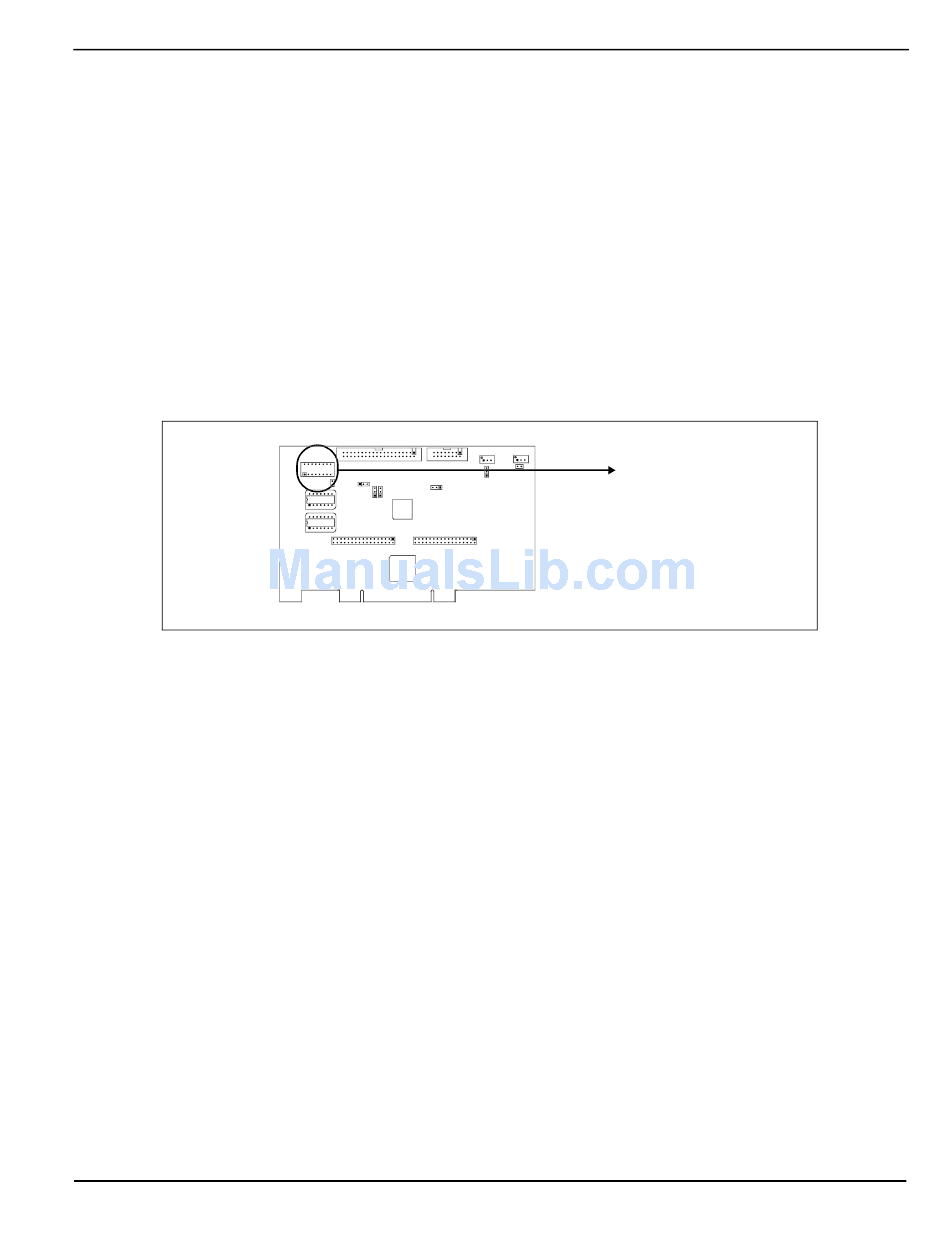

Figure 3-1: Configuration DIP Switch (SW1) Location

Revision 1.1

DIP Switch - SW1

Page 7

S1D13706

X31B-G-021-01
