High Power Mode
Operations Guide

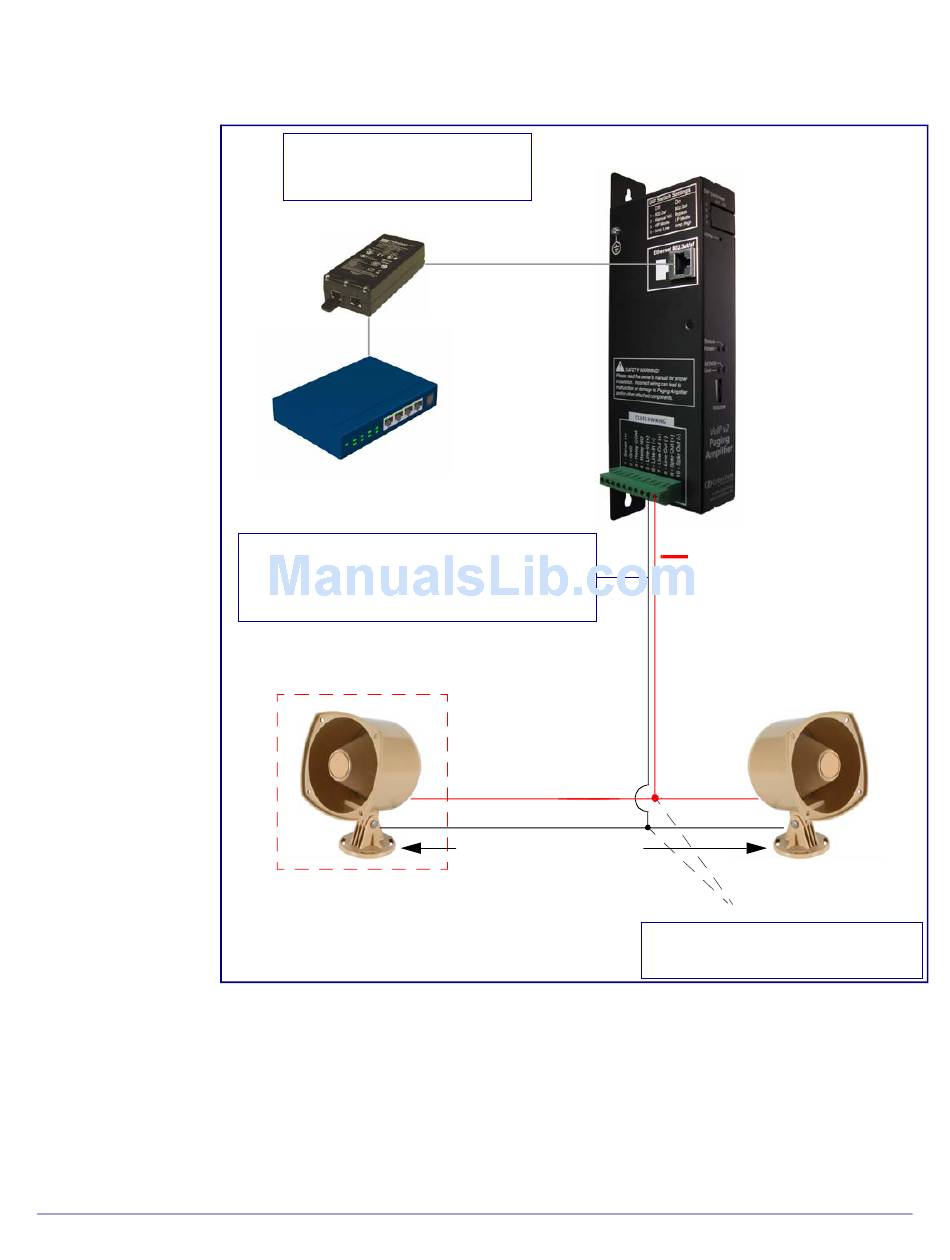

Figure 2-5. Using the Amplified Outputs—High Power Mode
Note: You can use an 802.3at
compliance switch instead of an
802.3at power injector and hub.
802.3at PoE Injector (high power mode)
Non-PoE Ethernet Switch
Use 16 gauge wire coming out of screw terminals.
Note: Make sure that the wire length going to the
wire nuts is kept short (approximately 6 inches).
Optional 2 Speaker Configuration
(802.3at mode)
8 Ohms
2 speakers in parallel (4 Ohm total)
Cat 5 Ethernet Cable
16 gauge wire
-
+
25 feet maximum distance
930363B
Installing the VoIP V2 Paging Amplifier
Paging Amplifier Setup
+
Standard 1 Speaker Configuration
(802.3af mode)
8 Ohms
-
+
Twist wire nuts
Note: Use wire nuts to connect wire
from the speakers to 16 gauge wire.
