2.6 Connector Pin Assignments

2.6.1 PCI-7200 Pin Assignments

The PCI-7200 comes equipped with one 37-pin D-Sub connector (CN2)
located on the rear mounting plate and one 40-pin female flat cable header
connector (CN1). The CN2 is located on the rear mounting plate; the CN1 is on
front of the board. Refer section 2.2 PCI-7200's layout.
CN2 is used for digital inputs (DI 0 ~ DI 15) and digital outputs (DO 0 ~ DO 15),
and the reminder digital I/O channels DI 16 ~ DI 31 and DO 16 ~ DO 31 are
presented on the CN1. The pin assignment of CN1 and CN2 is illustrated in the
figure 2.2 and 2.3.
Legend:
DO n : Digital Output CH n
DI n : Digital Input CH n
GND : Ground
ACK : ACK Signal of handshaking communication
REQ : REQ Signal of handshaking communication
I_TRG: Input signal to start the DI data sampling
O_TRG: Output signal can be controlled by software
12 Installation
1 1 1
DI16 DI16
3 3 3
DI17 DI17
5 5 5
DI18 DI18
7 7 7
DI19 DI19
9 9 9
DI20 DI20
11 11 11
DI21 DI21
13 13 13
DI22 DI22
15 15 15
DI23 DI23
17 17 17
DI24 DI24
19 19 19
DI25 DI25
21 21 21
DI26 DI26
23 23 23
DI27 DI27
25 25 25
DI28 DI28
27 27 27
DI29 DI29
29 29 29
DI30 DI30
31 31 31
DI31 DI31
33 33 33
+5V +5V
35 35 35
O_ACK O_ACK
37 37 37
O_REQ O_REQ
39 39 39
N/C N/C

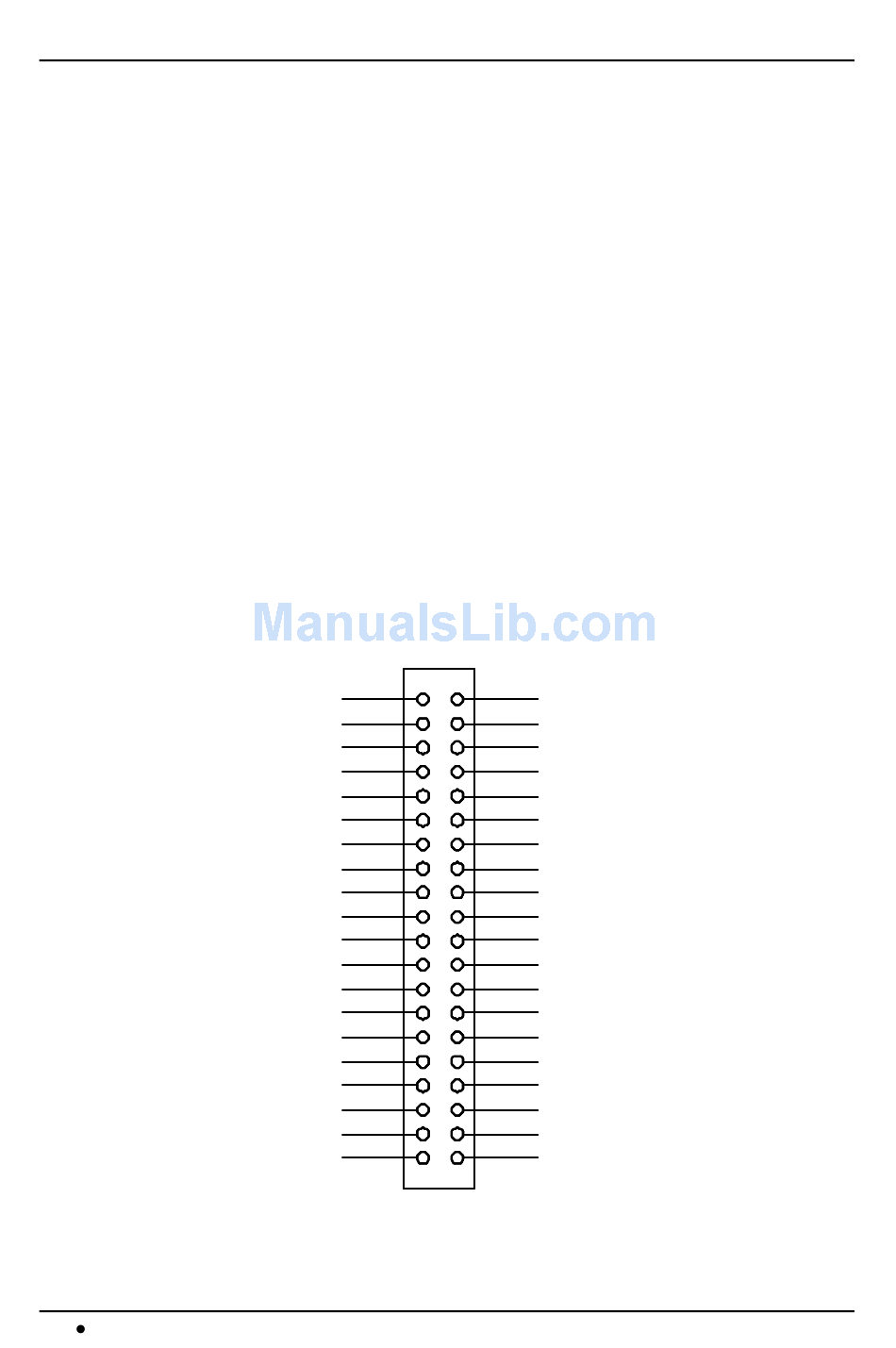

Figure 2.2 CN1 Pin Assignments
2 2
DO16 DO16
4 4
DO17 DO17
6 6 6
DO18 DO18
8 8 8
DO19 DO19
10 10 10
DO20 DO20
12 12 12
DO21 DO21
14 14 14
DO22 DO22
16 16 16
DO23 DO23
18 18 18
DO24 DO24
20 20 20
DO25 DO25
22 22 22
DO26 DO26
24 24 24
DO27 DO27
26 26 26
DO28 DO28
28 28 28
DO29 DO29
30 30 30
DO30 DO30
32 32 32
DO31 DO31
34 34 34
GND GND
36 36 36
O_TR1 O_TR1
38 38 38
N/C N/C
40 40
N/C N/C
