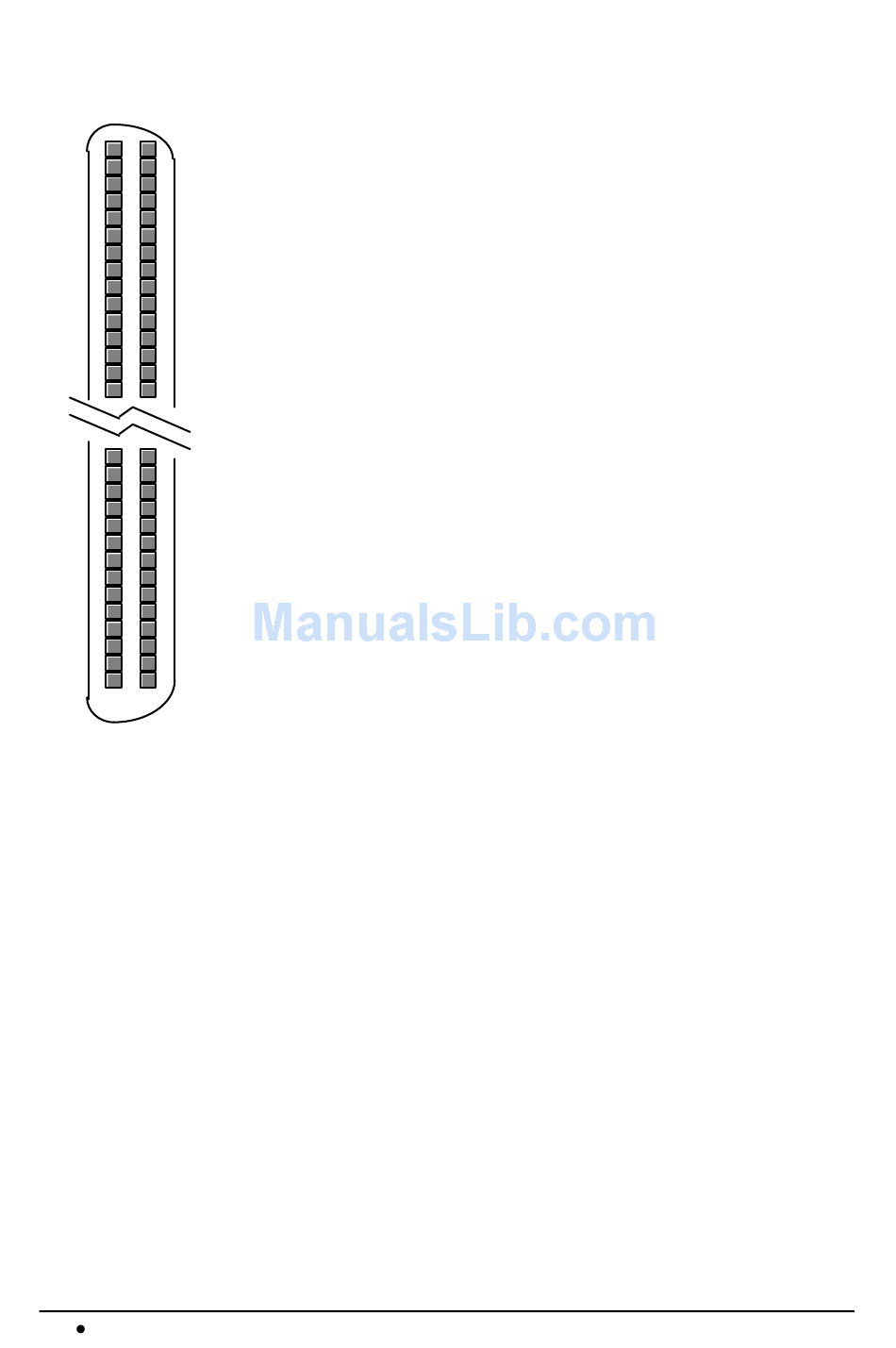

2.6.2 cPCI-7200 Pin Assignments
(1)
(51)
(2)
(52)
(3)
(53)
(48)
(98)
(49)
(99)
(50)
(100)
14 Installation
(1) DO0
(26) O_TRG
(2) DO2
(27) O_REQ
(3) DO4
(28) O_ACK
(4) DO6
(29) AUXIN2
(5) DO8
(30) AUXIN3
(6) DO10
(31) +5Vout
(7) DO12
(32) +5Vout
(8) DO14
(33) GND
(9) GND
(34) DIN0
(10) DO16
(35) DIN2
(11) DO18
(36) DIN4
(12) DO20
(37) DIN6
(13) DO22
(38) DIN8
(14) DO24
(39) DIN10
(15) DO26
(40) DIN12
(16) DO28
(41) DIN14
(17) DO30
(42) GND
(18) GND
(43) DIN16
(19) +5Vout
(44) DIN18
(20) +5Vout
(45) DIN20
(21) AUXIN0
(46) DIN22
(22) AUXIN1
(47) DIN24
(23) I_TRG
(48) DIN26
(24) I_REQ
(49) DIN28
(25) I_ACK
(50) DIN30
(51) DO1
(76) GND
(52) DO3
(77) GND
(53) DO5
(78) GND
(54) DO7
(79) AuxOut2
(55) DO9
(80) AuxOut3
(56) DO11
(81) GND
(57) DO13
(82) GND
(58) DO15
(83) GND
(59) GND
(84) DIN1
(60) DO17
(85) DIN3
(61) DO19
(86) DIN5
(62) DO21
(87) DIN7
(63) DO23
(88) DIN9
(64) DO25
(89) DIN11
(65) DO27
(90) DIN13
(66) DO29
(91) DIN15
(67) DO31
(92) GND
(68) GND
(93) DIN17
(69) GND
(94) DIN19
(70) GND
(95) DIN21
(71) AuxOut0 (96) DIN23
(72) AuxOut1 (97) DIN25
(73) GND
(98) DIN27
(74) GND
(99) DIN29
(75) GND
(100) DIN31
