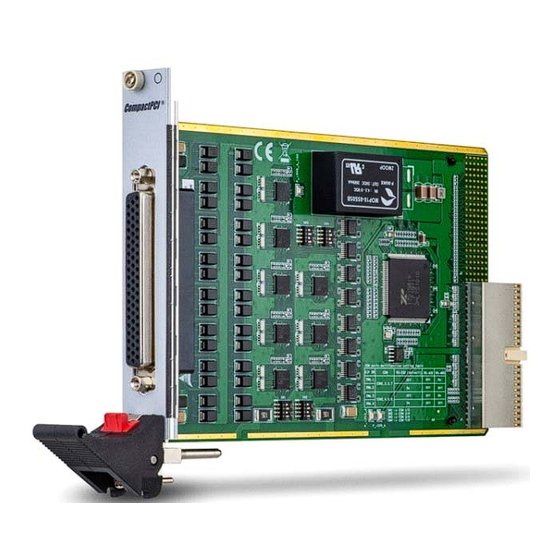

Introduction 1.1 Overview The cPCI-3548 is a 3U CompactPCI 8-port RS-232/422/485 com- munication peripheral module with external I/O connected from the front panel using a 62-pin connector or using the module's rear IO. It is compliant with the PICMG 2.0 R3.0 CompactPCI specifi- cation. -
Page 12: Specifications
• Linux 2.6.31 Environmental • Operating Temperature: 0°C to 60°C • Storage Temperature: -40°C to 85°C • Humidity: 95% @70°C, non-condensing Dimensions • 149 mm x 74 mm x 10 mm (L x W x H) Table 1-1: cPCI-3548 Module Specifications Introduction... -
Page 13: Uart Controller
1.5 Block Diagram 8x UART (0 ohm, reserved) 8x UART DB62 Transceiver Isolator (0 ohm) 8x UART PCI (32-bit) XR17D158 8x RS-232/422/485 (default is RS-232) Figure 1-1: cPCI-3548 Module Functional Block Diagram Introduction... -
Page 14: Package Contents
1.6 Package Contents The cPCI-3548 is packaged with the following components. If any of the following items are missing or damaged, retain the shipping carton and packing material and contact the dealer for inspection. Please obtain authorization before returning any product to ADLINK. -
Page 15: Board Interfaces
Board Interfaces 2.1 Connector and Switch Layout SW3 SW4 DB62 J1/J2 CompactPCI connectors SW1-4 COM mode switches DB62 Front I/O connector Figure 2-1: cPCI-3548 Connector and Switch Layout 19.90 Dimensions: mm Figure 2-2: cPCI-3548 Front Panel... -
Page 16: Connectors
2.2 Connectors CompactPCI J1 Connector V(I/O) V(I/O) V(I/O) 3.3V 3.3V 3.3V M66EN CBE_L0 AD12 V(I/O) AD11 AD10 3.3V AD15 AD14 AD13 SERR_L 3.3V CPCI_PAR CPCI_CBE_L1 GND 3.3V IPMB_PWR IPMB_PWR PERR_L DEVSEL_L V(I/O) STOP_L 3.3V FRAME_L IRDY_L BDSEL# IRDY_L 12-14 AD18 AD17 AD16 CBE_L2... -
Page 17: Table 2-2: Compactpci J2 Connector Pin Definition
CompactPCI J2 Connector UART_R_TXD8 UART_R_DTR-L8 UART_R_RTS-L8 GND UART_R_RXD8 UART_R_DSR-L8 UART_R_CTS-L8 UART_R_DCD-L8 GND UART_R_TXD7 UART_R_DTR-L7 UART_R_RTS-L7 GND UART_R_RXD7 UART_R_DSR-L7 UART_R_CTS-L7 UART_R_DCD-L7 GND UART_R_TXD6 CPCI_VIO UART_R_DTR-L6 UART_R_RTS-L6 GND GND UART_R_RXD6 UART_R_DSR-L6 UART_R_CTS-L6 UART_R_DCD-L6 GND UART_R_TXD5 CPCI_VIO UART_R_DTR-L5 UART_R_RTS-L5 GND GND UART_R_RXD5 UART_R_DSR-L5 UART_R_CTS-L5... -
Page 18: Table 2-3: Db-62 Front I/O Connector Pin Definition
DB-62 Front I/O Connector (DB62) Signal Name Function TXD_RX+_COM1 TXD (RS-232), RX+ (RS422) DTR-L_RX-_COM1 DTR-L (RS-232), RX- (RS422) RXD_TX+_D+_COM2 RXD (RS-232), TX+ (RS422), D+ (RS-485) DSR-L_COM2 DSR-L (RS-232) DCD-L_TX-_D-_COM2 DCD-L (RS-232), TX- (RS422), D- (RS-485) TXD_RX+_COM3 TXD (RS-232), RX+ (RS422) DTR-L_RX-_COM3 DTR-L (RS-232), RX- (RS422) RXD_TX+_D+_COM4... - Page 19 Signal Name Function TXD_RX+_COM2 TXD (RS-232), RX+ (RS422) DTR-L_RX-_COM2 DTR-L (RS-232), RX- (RS422) RXD_TX+_D+_COM3 RXD (RS-232), TX+ (RS422), D+ (RS-485) DSR-L_COM3 DSR-L (RS-232) DCD-L_TX-_D-_COM3 DCD-L (RS-232), TX- (RS422), D- (RS-485) TXD_RX+_COM4 TXD (RS-232), RX+ (RS422) DTR-L_RX-_COM4 DTR-L (RS-232), RX- (RS422)
- Page 20 Signal Name Function Ground CTS-L_COM7 CTS-L (RS-232) RTS-L_COM7 RTS-L (RS-232) CTS-L_COM8 CTS-L (RS-232) RTS-L_COM8 RTS-L (RS-232) Table 2-3: DB-62 Front I/O Connector Pin Definition COM Port Signal Definitions RS-232 Transmit Data Receive Data Request to Send Clear to Send Data Set Ready Signal Ground Data Carrier Detect Data Terminal Ready...
-
Page 21: Com Mode Switch Settings
2.3 COM Mode Switch Settings The cPCI-3548 has four DIP switches (SW1-4) to set the COM mode to RS-232/422/485. The default setting is RS-232. COM1/2 Mode Switch Settings COM Port RS-232 RS-422 RS-485 Pin 1 Pin 2 Pin 3... - Page 22 This page intentionally left blank.
-
Page 23: Driver Installation
3.1 Windows Driver Please download the Windows drivers from the ADLINK website https://www.adlinktech.com/Products/CompactPCI/Peripherals_ Accessories/cPCI-3548. The following describes the cPCI-3548 driver installation procedures for Windows 7. Install the Windows operating system before installing any driver. Most standard I/O device drivers are installed during Windows installation. Extract the following files and execute the program to install the corre- sponding driver. - Page 24 This page intentionally left blank. Driver Installation...
-
Page 25: Important Safety Instructions
