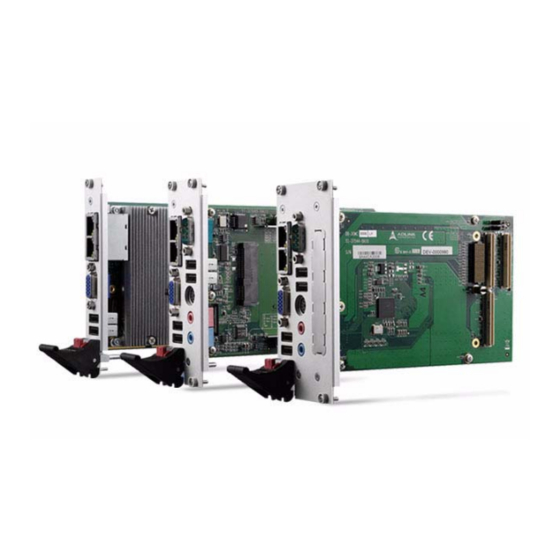

ADLINK Technology cPCI-3615 Series User Manual

3u compactpci dual-core intel atom processor blade
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

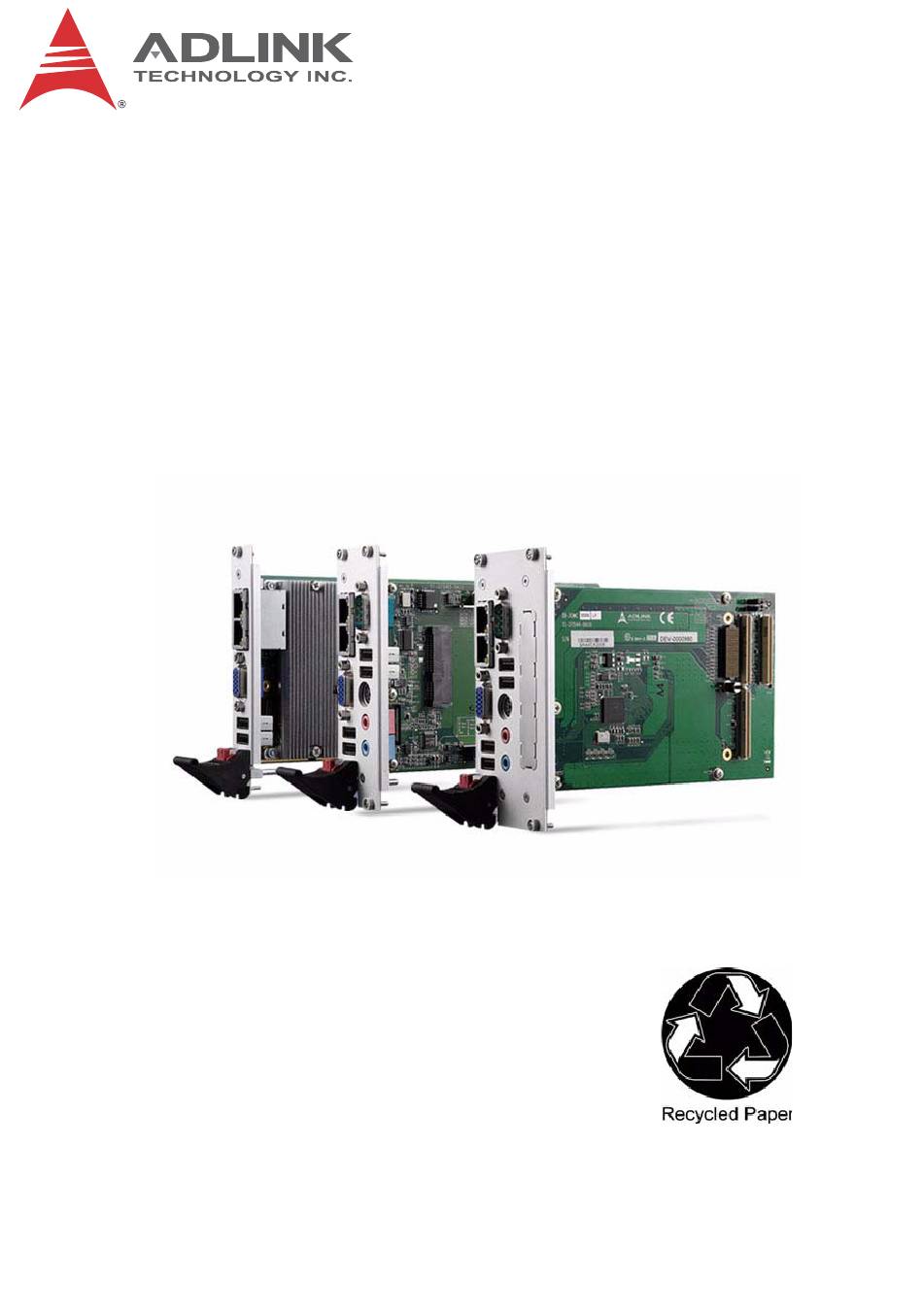

3U CompactPCI® Dual-Core Intel® Atom™
Manual Rev.:
Revision Date:
Part No:
Advance Technologies; Automate the World.
cPCI-3615 Series
Processor Blade
User's Manual
2.01
June 13, 2012
50-15077-1010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the cPCI-3615 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADLINK Technology cPCI-3615 Series

Summary of Contents for ADLINK Technology cPCI-3615 Series

  • Page 1 Series 3U CompactPCI® Dual-Core Intel® Atom™ Processor Blade User’s Manual Manual Rev.: 2.01 Revision Date: June 13, 2012 Part No: 50-15077-1010 Advance Technologies; Automate the World.

  • Page 2: Revision History

    Revision History Revision Release Date Description of Change(s) 2.00 2011/04/29 Initial release Correct Atom N455 frequency, board layout; add 2.01 2012/06/13 DB-3610CF removal instructions; correct J2 pin def’n...

  • Page 3: Preface

    Preface Copyright 2011-12 ADLINK Technology Inc. This document contains proprietary information protected by copy- right. All rights are reserved. No part of this manual may be repro- duced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
  • Page 4 Using this Manual Audience and Scope The cPCI-3615 User’s Manual is intended for hardware technicians and systems operators with knowledge of installing, configuring and operating CompactPCI systems. Manual Organization This manual is organized as follows: Chapter 1, Introduction: Introduces the cPCI-3615, its features, block diagrams, and package contents.
  • Page 5 cPCI-3615 Conventions Take note of the following conventions used throughout this manual to make sure that users perform certain tasks and instructions properly. Additional information, aids, and tips that help users perform tasks. NOTE: NOTE: Information to prevent minor physical injury, component dam- age, data loss, and/or program corruption when trying to com- plete a task.
  • Page 6 This page intentionally left blank. Preface...

  • Page 7: Table Of Contents

    cPCI-3615 Table of Contents Revision History..............ii Preface ..................iii List of Figures ................ xi List of Tables................ xiii 1 Introduction ................ 1 Overview................1 Features................2 Block Diagram ..............3 Product List................4 Package Contents ............... 5 2 Specifications ..............7 cPCI-3615 Specifications.............
  • Page 8 Series Front Panel Layout ....... 23 cPCI-R3610T RTM Board Layout ........25 cPCI-R3610(T) RTM Front Panel ........26 Connector Pin Assignments..........27 Switch and Jumper Settings ..........41 5 Getting Started ..............47 CPU and Heatsink ............. 47 Hard Drive Installation............48 PMC/XMC Card Installation ..........
  • Page 9 cPCI-3615 Boot Settings ..............90 8.5.1 Boot Settings Configuration ........... 91 Security Setup ..............92 Chipset Setup ..............94 Exit Menu................95 Important Safety Instructions ..........97 Getting Service..............99...
  • Page 10 This page intentionally left blank.

  • Page 11: List Of Figures

    List of Figures Figure 1-1: cPCI-3615 Series Functional Block Diagram....3 Figure 4-1: cPCI-3615 Blade Board Layout ........19 Figure 4-2: cPCI-3615 Assembly Layout ......... 20 Figure 4-3: cPCI-3615D Board Layout..........21 Figure 4-4: cPCI-3615, cPCI-3615D Front Panel Layout....23 Figure 4-5: cPCI-3615P Front Panel Layout ........
  • Page 12 This page intentionally left blank. List of Figures...

  • Page 13: List Of Tables

    cPCI-3615 List of Tables Table 4-1: cPCI-3615 Front Panel System LED Descriptions ..24 Table 4-2: USB Connector Pin Definition........27 Table 4-3: VGA Connector Pin Definition ........27 Table 4-4: GbE Connector Pin Definitions ........28 Table 4-5: Ethernet Status LED Definitions ........28 Table 4-6: PS/2 Keyboard/Mouse Connector Pin Definition ...
  • Page 14 This page intentionally left blank. List of Tables...

  • Page 15: Introduction

    Introduction 1.1 Overview The cPCI-3615 Series is a 3U CompactPCI single board computer in single-slot (4HP), dual-slot (8HP) or triple-slot (12HP) width form factor featuring the Intel® Atom™ N455 or D525 processor with ICH8M I/O Controller Hub. The cPCI-3615 provides single...

  • Page 16: Features

    1.2 Features 3U CompactPCI blade in 4HP, 8HP or 12HP width form factor Supports Dual-Core or Single-Core Intel® Atom™ processor, up to 1.8 GHz Graphics and memory controllers integrated in processor ICH8M I/O Hub Single channel DDR3-800 SDRAM soldered onboard, up to 32bit/33MHz CompactPCI Interface based on PCI specifica- tions Optional 32bit/66MHz PMC or PCI-Express x1 XMC site...

  • Page 17: Block Diagram

    Intel® SATA 1 2.5” HDD 1x USB ICH8M COM1, KB/MS COM2,COM3 COM2/3 IT8783F GbE 1/2 USB 1/2 BIOS Intel GbE 2 PCIe x1 82574L PCI 32b/33M GbE 1 PCIe x1 Intel 82574L Figure 1-1: cPCI-3615 Series Functional Block Diagram Introduction...

  • Page 18: Product List

    1.4 Product List Products in the cPCI-3615 Series include: Processor Blade cPCI-3615: 4HP width (single-slot) 3U CompactPCI featur- ing Atom™ N455 or D525 processor; 1GB, 2GB or 4GB memory soldered onboard; CompactFlash slot; 2x USB; 2x GbE; VGA. cPCI-3615D: 8HP width (dual-slot) 3U CompactPCI featur- ing Atom™...

  • Page 19: Package Contents

    Please obtain authorization before returning any prod- uct to ADLINK. The packing contents of the cPCI-3615 Series are non-standard configurations and may vary depending on customer requests.
  • Page 20 This page intentionally left blank. Introduction...

  • Page 21: Specifications

    cPCI-3615 Specifications 2.1 cPCI-3615 Specifications CompactPCI® • PICMG® 2.0 CompactPCI® Rev. 3.0 Standards • PICMG® 2.1 Hot Swap Specification Rev.2.0 Mechanical • Standard 3U CompactPCI® • Board size: 100mm x 160mm • Single-slot (4HP, 20.32mm); Dual-slot (8HP, 40.64mm), Triple-slot (12HP, 60.96mm) width •...
  • Page 22 Faceplate I/O 4HP (cPCI-3615): • 2x USB 2.0 ports • 2x 10/100/1000BASE-T Ethernet ports • Analog DB-15 VGA port 8HP (cPCI-3615D): • 4x USB 2.0 ports • 2x 10/100/1000BASE-T Ethernet ports • Analog DB-15 VGA port • DB-9 RS-232/422/485/485+ port •...

  • Page 23: I/O Connectivity Table

    cPCI-3615 2.2 I/O Connectivity Table cPCI-3615 cPCI-3615D cPCI-3615P cPCI-R3610(T) (4HP) (8HP) (12HP) Function Front I/O Onboard Front I/O Onboard Front I/O Onboard Front I/O Onboard Gigabit Y x2 – Y x2 – Y x2 – – Y x2 Ethernet – –...

  • Page 24: Power Requirements

    2.3 Power Requirements In order to guarantee stable operation of the system, it is recom- mended that significantly more power be provided than required. An industrial power supply unit should be able to provide at least twice as much power as the entire system requires of each voltage.
  • Page 25 Power Consumption This section provides information on the power consumption of cPCI-3615 Series when using Intel® Atom™ processors with 1GB soldered DDR2 memory and onboard 80GB SATA hard drive. The cPCI-3615 is powered by 5V only. Power consumption at 100% CPU usage was measured using PassMark BurnInTest 6.0.
  • Page 26 This page intentionally left blank. Specifications...

  • Page 27: Functional Description

    The following sections describe the cPCI-3615 Series features and functions. 3.1 Processor The cPCI-3615 Series supports the Intel® Atom™ Processor N400, D400 and D500 Series processors built on 45-nm Hi-K process technology. The processor is designed for a two-chip platform as opposed to the traditional three-chip platforms (processor, GMCH, and ICH).
  • Page 28 Micro-FCBGA8 packaging technologies Thermal management support via Intel® Thermal Monitor 1 (TM1) and Intel® Thermal Monitor 2 (TM2) Enhanced Intel® SpeedStep Technology (EIST) Support L2 dynamic cache sizing The following list outlines the key features of system memory support: One channel DDR3 memory Memory DDR3 data transfer rates of 800 MT/s Non-ECC, unbuffered DDR3 512Mb.
  • Page 29 cPCI-3615 The following list outlines the key features of system memory support: One channel DDR3 memory Memory DDR3 data transfer rates of 800 MT/s Non-ECC, unbuffered DDR3 I/O Voltage of 1.8V for DDR3 512Mb. 1-Gb,and 2-Gb DDR3 DRAM technologies supported The following list outlines the key graphics features: The integrated graphics controller contains a refresh of the 3rd generation graphics core...

  • Page 30: Chipset

    3.2 Chipset Intel® ICH8 Mobile I/O Controller Hub The ICH8M provides extensive I/O support. Functions and capa- bilities include: Provides 6 PCI Expressx1 ports, supporting the PCI Express Base Specification, Revision 1.1. Each Root Port supports 2.5GB/s bandwidth in each direction. The cPCI-3615 utilizes two PCI Express x1 ports for two Gigabit Ethernet controllers;...

  • Page 31: Battery

    cPCI-3615 3.4 Battery The cPCI-3615 is provided with a 3.0V “coin cell” lithium battery for the Real Time Clock (RTC). The battery socket is equipped on the DB-3610CF daughter board. The lithium battery must be replaced with an identical battery or a battery type recommended by the manufacturer.
  • Page 32 This page intentionally left blank. Functional Description...

  • Page 33: Board Interfaces

    Board Interfaces This chapter illustrates the board layout, connector pin assignments, and jumper settings to familiarize users with the cPCI-3615 Series. 4.1 cPCI-3615 Blade Board Layout USB0 USB1 Intel® Atom processor USB0/1 USB 2.0 South Bridge Intel® ICH8M DB-3610L2 connector GbE Controller Intel®...

  • Page 34: Cpci-3615 Blade Assembly Layout

    4.2 cPCI-3615 Blade Assembly Layout This section describes the final assembly layout of the single slot cPCI-3615 (4HP). DB-3610CF Battery Heat sink CF socket Figure 4-2: cPCI-3615 Assembly Layout Board Interfaces...

  • Page 35: Cpci-3615D Blade Assembly Layout

    cPCI-3615 4.3 cPCI-3615D Blade Assembly Layout The dual-slot width cPCI-3615D (8HP) is comprised of the cPCI-3615 single-slot main board and the DB-3610L2 riser card to expand I/O connectivity with PS/2, COM, 2x USB, Line-in, and Line-out ports. DB-3610L2 COM1 USB2 SATA0 USB3 2.5”...

  • Page 36: Cpci-3615P Blade Assembly Layout

    4.4 cPCI-3615P Blade Assembly Layout The triple-slot width cPCI-3615P (12HP) is comprised of the cPCI-3615D dual-slot assembly and the DB-3UMC riser card to provide a PMC/XMC slot for front I/O expansion. DB-3UMC DB-3UMC JN1/2 PMC connectors XMC connector Board Interfaces...

  • Page 37: Cpci-3615 Series Front Panel Layout

    4.5 cPCI-3615 Series Front Panel Layout cPCI-3615 GbE 1/2 WDT LED USB 2.0 Reset button Power LED cPCI-3615D Line-in USB 2.0 PS/2 COM1 Line-out KB/MS WDT LED USB 2.0 Reset button Power LED Figure 4-4: cPCI-3615, cPCI-3615D Front Panel Layout...

  • Page 38: Figure 4-5: Cpci-3615P Front Panel Layout

    cPCI-3615P Line-in USB 2.0 PS/2 Line-out COM1 KB/MS PMC/XMC WDT LED USB 2.0 Reset button Power LED Figure 4-5: cPCI-3615P Front Panel Layout Optional 2-slot version with PMC/XMC as shown below is avail- able by request. Please contact your ADLINK sales representative. PMC/XMC System LEDs Color...

  • Page 39: Cpci-R3610T Rtm Board Layout

    cPCI-3615 4.6 cPCI-R3610T RTM Board Layout SATA1 SATA2 COM2 USB 5 SW1-4 COM3 VGA1 SW5-8 COM2/3 COM ports Dual Ethernet port SATA1/2 SATA ports USB5 USB port CompactPCI connector SW1-8 Switches VGA1 VGA connector Figure 4-6: cPCI-R3610T RTM Board Layout Board Interfaces...

  • Page 40: Cpci-R3610(T) Rtm Front Panel

    4.7 cPCI-R3610(T) RTM Front Panel COM3 COM2 GbE x2 Figure 4-7: cPCI-R3610(T) RTM Front Panel Board Interfaces...

  • Page 41: Connector Pin Assignments

    cPCI-3615 4.8 Connector Pin Assignments USB Connectors Pin # Signal Name UV0- UV0+ Table 4-2: USB Connector Pin Definition VGA Connector (DB-15) Signal Name Pin # Pin # Signal Name Green Blue N.C. +5V. N.C. CRTDATA HSYNC VSYNC CRTCLK Table 4-3: VGA Connector Pin Definition Board Interfaces...

  • Page 42: Table 4-4: Gbe Connector Pin Definitions

    Gigabit Ethernet Connectors (RJ-45) 10BASE-T/ Pin # 1000BASE-T 100BASE-TX BI_DA+ BI_DA- BI_DB+ — BI_DC+ — BI_DC- BI_DB- — BI_DD+ — BI_DD- Table 4-4: GbE Connector Pin Definitions Speed LED Activity LED Status (Green/Amber) (Yellow) Network link is not established or system powered off Link 10 Mbps Active...

  • Page 43: Table 4-6: Ps/2 Keyboard/Mouse Connector Pin Definition

    cPCI-3615 PS/2 Keyboard/Mouse Connector Pin # Signal Function KBDATA Keyboard Data MSDATA Mouse Data Ground Power KBCLK Keyboard Clock MSCLK Mouse Clock Table 4-6: PS/2 Keyboard/Mouse Connector Pin Definition Serial Port DB-9 Connector (COM1) Pin # RS-232 RS-422 RS-485(+) DCD-L TXD- TXD- TXD+...

  • Page 44: Table 4-8: Cpci-R3610(T) Serial Port Pin Header Definition

    cPCI-R3610(T) Serial Port Pin Header (COM2/3) Pin # RS-232 RS-422 RS-485(+) DCD-L TXD- TXD- DSR-L — — TXD+ TXD+ RTS-L — — RXD+ — CTS-L — — DTR-L RXD- — RI-L — — — — — Table 4-8: cPCI-R3610(T) Serial Port Pin Header Definition Serial ATA Connectors on RTM Pin # Signal...

  • Page 45: Table 4-10: Serial Ata Connector On Db-3610L2 Pin Definition

    cPCI-3615 Serial ATA Connector on DB-3610L2 Pin # Signal Signal Power P13~P15 Table 4-10: Serial ATA Connector on DB-3610L2 Pin Definition Board Interfaces...

  • Page 46: Table 4-11: Compactflash Connector Pin Definition

    CompactFlash Connector on DB-3610CF Signal Name Pin# Pin# Signal Name DD11 DD12 DD13 DD14 DD15 CS1J CS3J SDIORJ SDIOWJ IRQ15 PCSEL BRSTDRVJ SDIORDY SDACKJ IDEACTJ DIAG IOIS16J DD10 Table 4-11: CompactFlash Connector Pin Definition Board Interfaces...

  • Page 47: Table 4-12: Db-3610Cf Connector Pin Definition

    cPCI-3615 DB-3610CF Connector (CN2) Signal Name Pin # Pin # Signal Name IDE_D7 IDE_D8 IDE_D6 IDE_D9 IDE_D5 IDE_D10 IDE_D4 IDE_D11 IDE_D3 IDE_D12 IDE_D2 IDE_D13 IDE_D1 IDE_D14 IDE_D0 IDE_D15 IDE_REQ-L IDE_66DECT IDE_IOW-L IDE_RST-L IDE_IOR-L SPKR IDE_IORDY SIO_SPKR IDE_ACK-L IDE_IRQ VCC_RTC IDE_A1 IDE_A0 USB4-P IDE_A2...

  • Page 48: Table 4-13: Db-3610L2 Connector Pin Definition

    DB-3610L2 Connector (CN4) Signal Name Pin # Pin # Signal Name USB2-N -12V USB2-P USB3-N HDA_SDIN0 USB3-P HDA_R_SDOUT SATA_ICH_RX-N0 HDA_R_SYNC SATA_ICH_RX-P0 HDA_R_BIT_CLK SATA_TX-P0 CK_L2_PCIE1-P SATA_TX-N0 CK_L2_PCIE1-N PCIE_TXN5 CK_L2_PCIE2-P PCIE_TXP5 CK_L2_PCIE2-N PCIE_RXN5 HDA_R_RST-L PCIE_RXP5 SPKR L2_PCIE_RST-L PCIE_RXN4 PCIE_RXP4 USB_2_3_OC-L COM1_DCD-L PCIE_TXN4 COM1_RI-L PCIE_TXP4 COM1_CTS-L...

  • Page 49: Table 4-14: Db-3Umc Connector Pin Definition

    cPCI-3615 DB-3UMC Connector (CN7) Signal Name Pin # Pin # Signal Name -12V +12V CK_PCIE1_P CK_PCIE1_N PCIE_TXN2 CK_PCIE2_P PCIE_TXP2 CK_PCIE2_N PCIE_R_RXN2 PCIE_R_RXP2 PCIE_RST# PCIE_R_RXN1 PCIE_R_RXP1 PCIE_TXN4 PCIE_TXP4 +3.3V +3.3V Table 4-14: DB-3UMC Connector Pin Definition Board Interfaces...

  • Page 50: Table 4-15: Pmc Connector Pin Definitions

    PMC Connector (JN1/2) Pin# JN1 Signal JN2 Signal PMC_TCK P12V N12V PMC_TRST-L PMC_TMS PCIX_INTA-L NC (PMC_TDO) PCIX_INTB-L PMC_TDI PCIX_INTC-L PMC_MOD-L1 PCIX_INTD-L PMC_MOD-L2 P3V3_PMCAUX P3V3 CLK66_PCIX_PMC PMC_RST-L PMC_MOD-L3 P3V3 PCIX_GNT-L0 PMC_MOD-L4 PCIX_REQ-L0 PMC_PME-L PMC_VIO PCIX_AD30 PCIX_AD31 PCIX_AD29 PCIX_AD28 PCIX_AD27 PCIX_AD26 PCIX_AD25 PCIX_AD24 PCIX_AD23 PMC_IDSEL...
  • Page 51 cPCI-3615 Pin# JN1 Signal JN2 Signal PCIX_FRAME-L PCIX_TRDY-L PCIX_IRDY-L P3V3 PCIX_DEVSEL-L PCIX_STOP-L PCIX_PCIXCAP PCIX_PERR-L PCIX_LOCK-L P3V3 PCIX_SERR-L PCIX_PAR PCIX_CBE-L1 PMC_VIO PCIX_AD14 PCIX_AD15 PCIX_AD13 PCIX_AD12 PCIX_M66EN PCIX_AD11 PCIX_AD10 PCIX_AD9 PCIX_AD8 P3V3 PCIX_AD7 PCIX_CBE-L0 PCIX_AD6 P3V3 PCIX_AD5 PCIX_AD4 PMC_VIO PCIX_AD3 PCIX_AD2 PCIX_AD1 PCIX_AD0 PCIX_ACK64-L P3V3...

  • Page 52: Table 4-16: Xmc Connector Pin Definition

    XMC Connector (JN3) Pin# 3.3V VPWR Not used PCIE_RST-L 3.3V VPWR Not used Not used 3.3V VPWR Not used +12V 3.3V VPWR Not used -12V Not used VPWR Not used Not used VPWR Not used 3.3V VPWR Not used Not used VPWR Not used Not used...

  • Page 53: Table 4-17: Compactpci J1 Connector Pin Definition

    cPCI-3615 CompactPCI J1 Connector REQ64# ENUM# +3.3V CPCI_AD1 CPCI_VIO CPCI_AD0 ACK64# P3V3 CPCI_AD4 CPCI_AD3 CPCI_AD2 CPCI_AD7 P3V3 CPCI_AD6 CPCI_AD5 P3V3 CPCI_AD9 CPCI_AD8 CPCI_M66EN CPCI_CBE-L0 GND CPCI_AD12 CPCI_AD11 CPCI_AD10 P3V3 CPCI_AD15 CPCI_AD14 CPCI_AD13 GND CPCI_SERR-L P3V3 CPCI_PAR CPCI_CBE-L1 GND P3V3 CPCI_PERR-L GND GND CPCI_DEVSEL-L CPCI_PCIXCAP CPCI_STOP-L CPCI_LOCK-L GND P3V3...

  • Page 54: Table 4-18: Compactpci J2 Connector Pin Definition

    CompactPCI J2 Connector CLK6 LAN1_TXDP0 LAN1_TXDN0 CK_ PCIE-N CLK5 LAN1_TXDP2 CK_ PCIE-P LAN1_TXDN2 LAN1_TXDP1 LAN1_TXDN1 PCIE_TXP2 LAN1_TXDP3 LAN1_TXDN3 P3V3 PCIE_TXN2 PRSTJ REQ6# GNT6# GPIO0 PCIE_ RXP2 PCIE_RST# RGB_BLUE PCIE_ RXN2 REQ5# GNT5# GPIO1 USB_5_OC# SATA_TX-N1 COM2_RI# LAN2_TXDP0 SATA_TX-P1 COM2_DTR# COM2_CTS# GPIO2 LAN2_TXDN0 USB5-P...

  • Page 55: Switch And Jumper Settings

    cPCI-3615 4.9 Switch and Jumper Settings Clear CMOS Switch (SW4) The cPCI-3615 comes with a Clear CMOS switch to reset the CMOS values to default. The switch is located on solder side of the board, under the "CE" logo. Press the switch to clear the CMOS and reset the values to default.

  • Page 56: Table 4-20: Com1 Mode Selection Switch Settings

    COM1 Mode Selection Switches (SW1~SW4) These switches select COM1 (cPCI-3615D/P front panel) to be RS-232 full modem, RS-422, RS-485, or RS-485+ half-duplex mode. Switches SW1~SW4 are located on the top edge of the DB-3610L2 board. RS-232 full modem is set by default. Mode RS-232 RS-422...

  • Page 57: Table 4-21: Com2 Mode Selection Switch Settings

    cPCI-3615 COM2 Mode Selection Switches on RTM (SW1~SW4) These switches on the RTM select COM2 to be RS-232 full modem, RS-422, RS-485, or RS-485+ half-duplex mode. RS-232 full modem is set by default. See “cPCI-R3610T RTM Board Layout” on page 25 for switch locations. Mode RS-232 RS-422...

  • Page 58: Table 4-22: Com3 Mode Selection Switch Settings

    COM3 Mode Selection Switches on RTM (SW5~SW8) These switches on the RTM select COM3 to be RS-232 full modem, RS-422, RS-485, or RS-485+ half-duplex mode. RS-232 full modem is set by default. See “cPCI-R3610T RTM Board Layout” on page 25 for switch locations. Mode RS-232 RS-422...

  • Page 59: Table 4-23: Xmc Vpwr Select Jumper Settings

    cPCI-3615 XMC VPWR Select Jumper on DB-3UMC (JPX1) This jumper is located on the DB-3UMC board near JN1/2 and selects the XMC VPWR setting. 5V is set by default. Mode Connection JPX1 +5V (Default) 1 – 2 +12V 2 – 3 Table 4-23: XMC VPWR Select Jumper Settings PMC V(I/O) Select Jumper on DB-3UMC (JPX2) This jumper is located on the DB-3UMC board near JN1/2 and...
  • Page 60 This page intentionally left blank. Board Interfaces...

  • Page 61: Getting Started

    RTM installation to chassis 5.1 CPU and Heatsink The cPCI-3615 Series come with a BGA CPU soldered onboard and heatsink pre-installed. Removal of heatsink/CPU by users is not recommended. Please contact your ADLINK service representative for assistance.

  • Page 62: Hard Drive Installation

    5.2 Hard Drive Installation The cPCI-3615D/P 2/3 slot versions provide space to install a slim type 2.5” Serial-ATA hard drive. Installing a Hard Drive - cPCI-3615D 1. Attach the mounting brackets to the hard drive with four M3 screws provided. 2.
  • Page 63 cPCI-3615 3. Secure the hard drive assemby to the cPCI-3615D using four M2.5 screws provided. Getting Started...
  • Page 64 Installing a Hard Drive - cPCI-3615P 1. To install a hard drive on the cPCI-3615P, the front panel and DB-3UMC daughter board must first be disassembled. Remove the front panel by unscrewing the four screws securing it to the PCB assembly (arrows), the four stand- offs securing the VGA and COM connectors (circles), and one screw under the ejector handle.
  • Page 65 cPCI-3615 2. Detach the faceplate from the PCB assembly. 3. Loosen the five screws securing DB-3UMC riser card to the PCB assembly. Getting Started...
  • Page 66 4. Remove the DB-3UMC riser card, taking care to lift it from the board-to-board connector indicated below. 5. Attach the mounting brackets to the hard drive with four M3 screws provided. Getting Started...
  • Page 67 cPCI-3615 6. Align the hard drive assemby with the mounting points on the cPCI-3615P and insert it into the onboard Serial ATA connector until it is properly seated. 7. Secure the hard drive assemby to the cPCI-3615P using four M2.5 screws provided. Getting Started...
  • Page 68 8. Re-attach the DB-3UMC riser card to the PCB assembly, taking care to press down firmly on the board-to-board connector. 9. Re-attach the faceplate to the cPCI-3615P by fastening the four screws and four standoffs removed in Step 1 above. Getting Started...

  • Page 69: Pmc/Xmc Card Installation

    cPCI-3615 5.3 PMC/XMC Card Installation The cPCI-3615P provides one PMC/XMC slot designed to support 3.3V or 5V V(I/O) (default 3.3V) and 5V or 12V VPWR (default 5V). Before you install the PMC/XMC card on the cPCI-3615P, please make sure that the PMC V(I/O) jumper JPX2 and XMC VPWR jumper JPX1 have been correctly set (see page 45).
  • Page 70 2. Remove the DB-3UMC daughter board by unscrewing the four screws as shown below. 3.3V Key This page intentionally left blank. 3. There is a 3.3V key on board by default, if the PMC/XMC card you wish to install is 5V signaling, please remove the key and set the PMC V(I/O) jumper JPX2 to the 5V setting.
  • Page 71 cPCI-3615 5. Secure the PMC/XMC card to the DB-3UMC by attach- ing four screws (provided with the card) from the under- side of the daughter board. 6. Align the male board-to-board connector (CN1) of the PMC/XMC assembly to the female board to board con- nector (CN7) of the DB-3610L2 riser card and press down.
  • Page 72 7. Secure the PMC/XMC assembly to the DB-3610L2 riser card using the four screws removed in Step 2 above. 8. Remove the PMC filler faceplate from the front panel. 9. Assemble the front panel to the cPCI-3615P by revers- ing Step 1. Getting Started...

  • Page 73: Removing The Db-3610Cf Daughter Board

    cPCI-3615 5.4 Removing the DB-3610CF Daughter Board To access SW1 (VGA/GPIO Mode Switch) which is under the DB-3610CF Daughter Board, follow the steps below (see “cPCI-3615 Blade Assembly Layout” on page 20 for DB-3610CF location). 1. Remove the front panel from the blade assembly by unscrewing the screws and standoffs as shown (dual-slot version shown).
  • Page 74 3. Remove the screw securing the DB-3610CF from the component side of the blade as shown. 4. Remove the screw securing the DB-3610CF from the solder side of the blade as shown. 5. Remove the DB-3610CF from the blade assembly. Getting Started...
  • Page 75 cPCI-3615 6. Remove the six screws securing the heatsink to the blade assembly 7. Remove the heatsink to access SW1. To reassemble the cPCI-3615 blade, reverse Steps 1~7 above. Getting Started...

  • Page 76: Installing The Cpci-3615 To The Chassis

    5.5 Installing the cPCI-3615 to the Chassis The cPCI-3615 may only be installed in a system slot of a 3U CompactPCI chassis. These instructions are for reference only. Refer to the user guide that comes with the chassis for more infor- mation.

  • Page 77: Rtm Installation - Cpci-R3610(T)

    RTMs. Refer to previous sections for peripheral connectivity of all I/O ports on the RTM. When installing the cPCI-3615 Series and related RTMs, make sure the RTM is the correct matching model. You must install the correct RTM to enable functions (I/O inter- faces) on the rear panel.
  • Page 78 This page intentionally left blank. Getting Started...

  • Page 79: Driver Installation

    cPCI-3615 Driver Installation The cPCI-3615 drivers are available from the ADLINK All-In-One CD at X:\cPCI\cPCI-3615\, or from the ADLINK website (http://www.adlinktech.com). This section describes the driver installation procedures for Windows® 7. 1. Install the Windows operating system before installing any driver. Most standard I/O device drivers are installed during Windows installation.
  • Page 80 This page intentionally left blank. Driver Installation...

  • Page 81: Utilities

    cPCI-3615 Utilities 7.1 Watchdog Timer This section describes the operation of the cPCI-3615’s watchdog timer (WDT). The primary function of the WDT is to monitor the cPCI-3615's operation and to reset the system if a software appli- cation fails to function as programmed. The following WDT func- tions may be controlled using a software application: enabling and disabling reloading timeout value...

  • Page 82: Sample Code

    Sample Code The sample program written in C shown below offers an interac- tive way to test the Watchdog Timer under DOS. #include<stdio.h> #include<dos.h> #define IT8783_ID1 0x87 #define IT8783_ID2 0x83 static unsigned int IT8783_ioPort = 0x2e; //Check index port void Enter_IT8783_Config(unsigned int flag) if(flag) IT8783_ioPort = 0x4e;...
  • Page 83 cPCI-3615 outportb(IT8783_ioPort, 0x02); outportb(IT8783_ioPort+1, 0x02); //Check chip void Get_IT8783_ID(unsigned int &ID1, unsigned int &ID2) outportb(IT8783_ioPort, 0x20); ID1 = inportb(IT8783_ioPort+1); outportb(IT8783_ioPort, 0x21); ID2 = inportb(IT8783_ioPort+1); //WDT and LED program void IT8783_3_WDTRun(unsigned int count_value, unsigned int PLEDflag) //for cPCI-3615 unsigned long tempCount; unsigned int registerValue;...
  • Page 84 outportb(IT8783_ioPort+1, registerValue); outportb(IT8783_ioPort, 0xCD); registerValue = inportb(IT8783_ioPort + 1); registerValue |= 0x01; // set GP60 is output outportb(IT8783_ioPort+1, registerValue); outportb(IT8783_ioPort, 0xf8); outportb(IT8783_ioPort+1, 0x30);// PLED mapping to GP60 outportb(IT8783_ioPort, 0xf9); registerValue = inportb(IT8783_ioPort + 1); registerValue |= 0x02; registerValue &= 0xfb; outportb(IT8783_ioPort+1, registerValue);...
  • Page 85 cPCI-3615 tempCount++; if(tempCount > 65535) tempCount = 65535; printf("WDT timeout in %d minutes.\n", tempCount); else outportb(IT8783_ioPort, 0x72); registerValue = inportb(IT8783_ioPort+1); registerValue |= 0x80; tempCount = count_value; if(tempCount != 0) printf("WDT timeout in %d seconds.\n", tempCount); registerValue |= 0x40; //Enable WDT output through KBRST else printf("WDT is Disabled.\n");...

  • Page 86: Preboot Execution Environment (Pxe)

    7.2 Preboot Execution Environment (PXE) The cPCI-3615 Series supports the Intel® Preboot Execution Environment (PXE) that is capable of booting up or executing an OS installation through an Ethernet ports. To use PXE, there must be a DHCP server on the network with one or more servers run- ning PXE and MTFTP services.

  • Page 87: Bios Setup

    cPCI-3615 BIOS Setup The following chapter describes basic navigation for the AMIBIOS®8 BIOS setup utility. 8.1 Starting the BIOS To enter the setup screen, follow these steps: 1. Power on the motherboard 2. Press the < Delete > key on your keyboard when you see the following text prompt: <...
  • Page 88 Setup Menu The main BIOS setup menu is the first screen that you can navi- gate. Each main BIOS setup menu option is described in this user’s guide. The Main BIOS setup menu screen has two main frames. The left frame displays all the options that can be configured.
  • Page 89 cPCI-3615 Note: There is a hot key legend located in the right frame on most setup screens. The < F8 > key on your keyboard is the Fail-Safe key. It is not dis- played on the key legend by default. To set the Fail-Safe settings of the BIOS, press the <...
  • Page 90 The < F10 > key allows you to save any changes you have made and exit Setup. Press the < F10 > key to save your changes. The following screen will appear: Press the < Enter > key to save the configuration and exit. You can also use the <...

  • Page 91: Main Setup

    cPCI-3615 8.2 Main Setup When you first enter the Setup Utility, you will enter the Main setup screen. You can always return to the Main setup screen by select- ing the Main tab. There are two Main Setup options. They are described in this section.
  • Page 92 the left frame of the screen to go to the sub menu for that item. You can display an Advanced BIOS Setup option by highlighting it using the < Arrow > keys. The Advanced BIOS Setup screen is shown below. The sub menus are described on the following pages.

  • Page 93: Cpu Configuration

    cPCI-3615 8.3.1 CPU Configuration You can use this screen to select options for the CPU Configura- tion Settings. Use the up and down < Arrow > keys to select an item. Use the < + > and < - > keys to change the value of the selected option.
  • Page 94 Execute-Disable Bit Capability Intel’s Execute Disable Bit functionality can help prevent cer- tain classes of malicious buffer overflow attacks when com- bined with a supporting operating system. Execute Disable Bit allows the processor to classify areas in memory where appli- cation code can execute and where it cannot.

  • Page 95: Ide Configuration

    cPCI-3615 8.3.2 IDE Configuration You can use this screen to select options for the IDE Configuration Settings. Use the up and down < Arrow > keys to select an item. Use the < + > and < - > keys to change the value of the selected option.

  • Page 96: Super Io Configuration

    8.3.3 Super IO Configuration You can use this screen to select options for the Super IO settings. Use the up and down < Arrow > keys to select an item. Use the < + > and < - > keys to change the value of the selected option. The settings are described on the following pages.

  • Page 97: Hardware Health Configuration

    cPCI-3615 8.3.4 Hardware Health Configuration This option displays the current status of all of the monitored hard- ware devices/components such as voltages and temperatures. The options are Enabled and Disabled. BIOS Setup...

  • Page 98: Usb Configuration

    8.3.5 USB Configuration You can use this screen to select options for the USB Configura- tion. Use the up and down < Arrow > keys to select an item. Use the < + > and < - > keys to change the value of the selected option.
  • Page 99 cPCI-3615 Auto: This option auto detects USB Keyboards or Mice and if found, allows them to be utilized during boot and while using DOS. USB 2.0 Controller Mode The USB 2.0 Controller Mode configures the data rate of the USB port. The options are FullSpeed (12 Mbps) and HiSpeed (480 Mbps).

  • Page 100: Ahci Configuration

    8.3.6 AHCI Configuration You can use this screen to select options for the AHCI Settings. Use the up and down < Arrow > keys to select an item. Use the < + > and < - > keys to change the value of the selected option. SATA Port0/1/2 Select the type of device connected to the system.

  • Page 101: Remote Access Configuration

    cPCI-3615 8.3.7 Remote Access Configuration Remote access configuration provides the settings to allow remote access by another computer to get POST messages and send commands through serial port access. Remote Access Select this option to Enable or Disable the BIOS remote access feature.
  • Page 102 Serial Port Mode Select the baud rate you want the serial port to use for console redirection. The options are 115200 8,n,1; 57600 8,n,1; 19200 8,n,1; and 09600 8,n,1. Flow Control Set this option to select Flow Control for console redirection. The settings for this value are None, Hardware, or Software.

  • Page 103: Advanced Pci/Pnp Settings

    cPCI-3615 8.4 Advanced PCI/PnP Settings Select the PCI/PnP tab from the setup screen to enter the Plug and Play BIOS Setup screen. You can display a Plug and Play BIOS Setup option by highlighting it using the < Arrow > keys. The Plug and Play BIOS Setup screen is shown below.

  • Page 104: Boot Settings

    8.5 Boot Settings Select the Boot tab from the setup screen to enter the Boot BIOS Setup screen. You can select any of the items in the left frame of the screen, such as Boot Device Priority, to go to the sub menu for that item.

  • Page 105: Boot Settings Configuration

    cPCI-3615 8.5.1 Boot Settings Configuration Use this screen to select options for the Boot Settings Configura- tion. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option.

  • Page 106: Security Setup

    8.6 Security Setup Password Support Two Levels of Password Protection Provides both a Supervisor and a User password. If you use both passwords, the Supervisor password must be set first. The system can be configured so that all users must enter a password every time the system boots or when Setup is exe- cuted, using either or either the Supervisor password or User password.
  • Page 107 cPCI-3615 Remember the Password Keep a record of the new password when the password is changed. If you forget the password, you must erase the sys- tem configuration information in NVRAM. To access the sub menu for the following items, select the item and press <...

  • Page 108: Chipset Setup

    8.7 Chipset Setup Select the Chipset tab from the setup screen to enter the Chipset BIOS Setup screen. You can select any of the items in the left frame of the screen to go to the sub menu for that item. The Chipset BIOS Setup screen is shown below.

  • Page 109: Exit Menu

    cPCI-3615 8.8 Exit Menu Select the Exit tab from the setup screen to enter the Exit BIOS Setup screen. You can display an Exit BIOS Setup option by high- lighting it using the < Arrow > keys. The Exit BIOS Setup screen is shown below.
  • Page 110 Discard Changes Select Discard Changes from the Exit menu and press < Enter >. Select Ok to discard changes. Load Optimal Defaults Automatically sets all Setup options to a complete set of default settings when you select this option. The Optimal settings are designed for maximum system performance, but may not work best for all computer applications.

  • Page 111: Important Safety Instructions

    cPCI-3615 Important Safety Instructions For user safety, please read and follow all instructions, WARNINGS, CAUTIONS, and NOTES marked in this manual and on the associated equipment before handling/operating the equipment. Read these safety instructions carefully. Keep this user’s manual for future reference. Read the specifications section of this manual for detailed information on the operating environment of this equipment.
  • Page 112 Never attempt to fix the equipment. Equipment should only be serviced by qualified personnel. A Lithium-type battery may be provided for uninterrupted, backup or emergency power. Risk of explosion if battery is replaced with one of an incorrect type. Dispose of used batteries appropriately. WARNING: Equipment must be serviced by authorized technicians when:...

  • Page 113: Getting Service
