ADLINK Technology cPCI-6210 Series User Manual

6u compact pci processor blade with quad-core intel core i7
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Manual Rev.
Revision Date:
Part No:
Advance Technologies; Automate the World.
cPCI-6210 Series

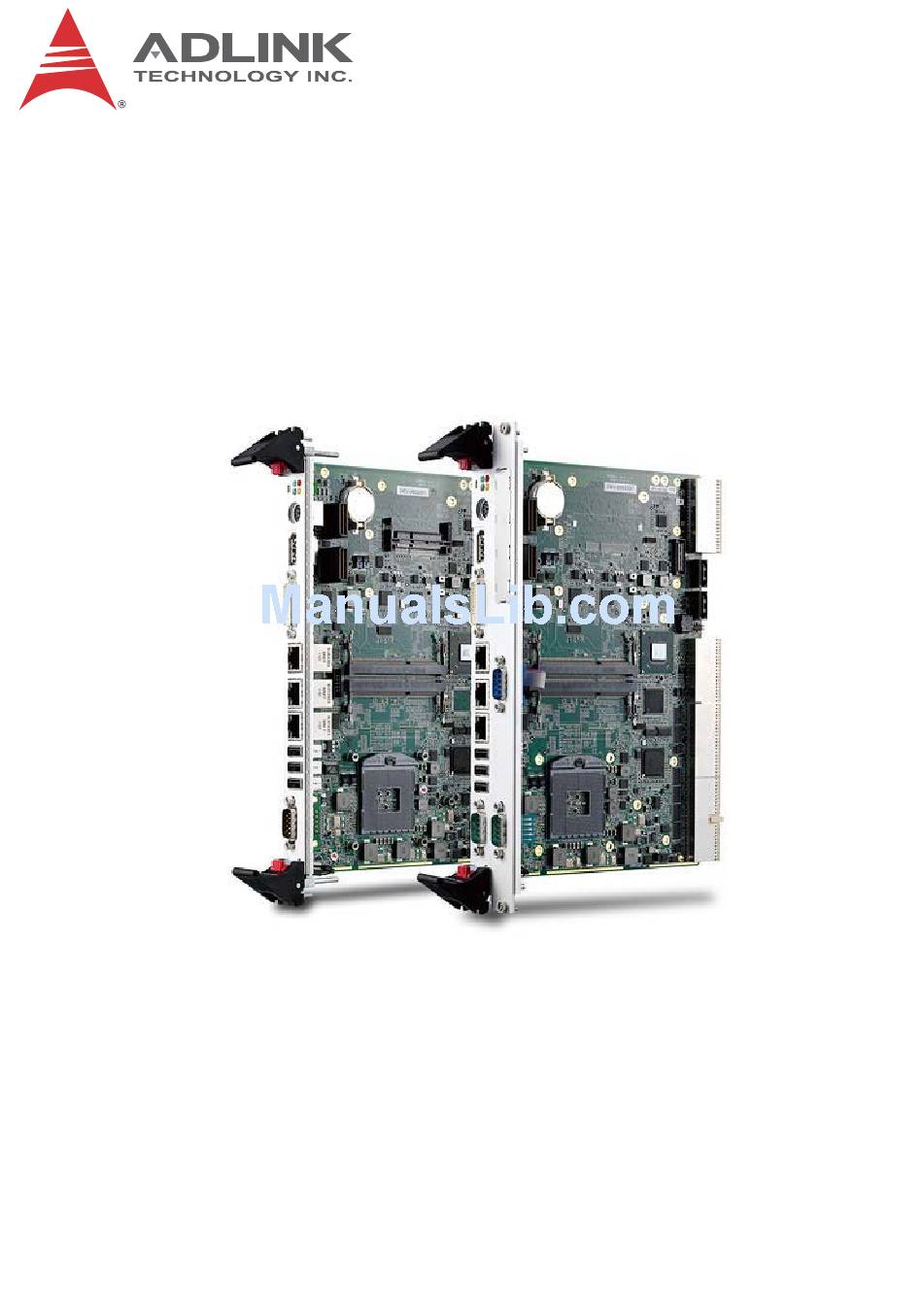

6U CompactPCI Processor Blade
with Quad-Core Intel
User's Manual
2.03
November 13, 2014
50-15079-1020
®
Core™ i7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the cPCI-6210 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADLINK Technology cPCI-6210 Series

Summary of Contents for ADLINK Technology cPCI-6210 Series

  • Page 1 Series 6U CompactPCI Processor Blade ® with Quad-Core Intel Core™ i7 User’s Manual Manual Rev. 2.03 Revision Date: November 13, 2014 Part No: 50-15079-1020 Advance Technologies; Automate the World.

  • Page 2: Revision History

    Revision History Revision Release Date Description of Change(s) 2.00 23/02/2012 Initial release Correct LAN1/2 locations; LAN3/4 signal names 2.01 26/03/2012 in J3/5 pin definitions; LVDS support note 2.02 14/04/2014 Correct SW9 COM1 setting 2.03 13/11/2014 Add PMC slot -12V support note Revision History...

  • Page 3: Preface

    Preface Copyright 2012 ADLINK Technology Inc. This document contains proprietary information protected by copy- right. All rights are reserved. No part of this manual may be repro- duced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
  • Page 4 Using this Manual Audience and Scope The cPCI-6210 User’s Manual is intended for hardware technicians and systems operators with knowledge of installing, configuring and operating industrial grade CompactPCI modules. Manual Organization This manual is organized as follows: Chapter 1, Overview: Introduces the cPCI-6210, its features, block diagrams, and package contents.
  • Page 5 cPCI-6210 Conventions Take note of the following conventions used throughout this manual to make sure that users perform certain tasks and instructions properly. Additional information, aids, and tips that help users perform tasks. NOTE: NOTE: Information to prevent minor physical injury, component dam- age, data loss, and/or program corruption when trying to com- plete a task.
  • Page 6 This page intentionally left blank. Preface...

  • Page 7: Table Of Contents

    cPCI-6210 Table of Contents Revision History..............ii Preface ..................iii List of Tables................xi List of Figures ..............xiii 1 Overview ................1 Introduction ................1 Features................2 Block Diagram ..............3 Product List................4 Package Contents ............... 5 2 Specifications ..............7 cPCI-6210 Specifications.............
  • Page 8 cPCI-6210D Assembly Layout ........... 24 cPCI-6210(D) Front Panel ..........25 Connector Pin Assignments..........27 Switch and Jumper Settings ..........46 5 Getting Started ..............49 CPU and Heatsink ............. 49 CFast Card Installation ............49 CompactFlash Card Installation......... 53 2.5” SATA Drive Installation..........56 PMC/XMC Module Installation ...........
  • Page 9 cPCI-6210 OEM Commands Summary Table........115 CompactPCI Address Map ..........119 Communications with IPMC..........120 IPMI Sensors List............. 120 Relevant Documents ............121 Important Safety Instructions ..........123 Getting Service..............125 Table of Contents...
  • Page 10 This page intentionally left blank. Table of Contents...

  • Page 11: List Of Tables

    cPCI-6210 List of Tables Table 2-1: cPCI-6210 Specifications ......... 9 Table 2-2: cPCI-6210 I/O Connectivity ........10 Table 2-3: CompactPCI Input Voltage Characteristics .... 11 Table 4-1: cPCI-6210 Front Panel Status LED Descriptions ... 26 Table 4-2: USB Connector Pin Definition ........ 27 Table 4-3: GbE Connector Pin Definitions .......
  • Page 12 This page intentionally left blank. List of Tables...

  • Page 13: List Of Figures

    List of Figures Figure 1-1: cPCI-6210 Series Block Diagram ......3 Figure 4-1: cPCI-6210(D) Series Board Layout ......23 Figure 4-2: cPCI-6210D Assembly Layout......... 24 Figure 4-3: cPCI-6210(D) Front Panel Layout ......25 List of Figures xiii...
  • Page 14 This page intentionally left blank. List of Figures...

  • Page 15: Overview

    For the dense computing requirements, the cPCI-6210 Series supports operation in both a system slot, and in a peripheral slot as a standalone blade. The cPCI-6210 Series is compliant with the PICMG 2.9 specification and supports system management func- tions based on the Intelligent Platform Management Interface...

  • Page 16: Features

    1.2 Features 6U CompactPCI blade in 4HP or 8HP width form factor Supports 2nd generation Intel® Core™ i7/i5 processors in FCPGA988 socket (Core™ i7-2710QE: 4 cores, 6M cache, 2.10 GHz) Graphics and memory controllers integrated in processor Dual channel DDR3-1066/1333/1600 SDRAM via two SODIMM sockets, up to 16GB 64bit/66MHz CompactPCI Interface based on PCI specifica- tions, universal V(I/O)

  • Page 17: Block Diagram

    DDR3 1066/1333 SATA2 Intel 2.5” HDD SATA1 ITE8783 82574L 200-pin SO-DIMM 7pin 200-pin SO-DIMM 6x USB COM6 2x SATA 5x GPIO LAN3 CFast KB/MS 2x COM PCIe x4 TMDS IPMB 0/1 LAN4 J1/J2 J3/J5 Figure 1-1: cPCI-6210 Series Block Diagram Overview...

  • Page 18: Product List

    1.4 Product List Products included in the cPCI-6210 Series include: Processor Blade cPCI-6210: 4HP width (single-slot) 6U CompactPCI blade featuring single 2nd generation Intel® Core™ i7/i5 processor, dual channel DDR3-1066/1333 SO-DIMM, PS/2 KB/MS, DisplayPort, DVI-I, 3x GbE, 3x USB, COM, SATA ports and...

  • Page 19: Package Contents

    ADLINK. The packing contents of non-standard configurations may vary depending on customer requests. Processor Blade The cPCI-6210 Series Processor Blade CPU and memory specifications will differ depending on options selected Thermal module is assembled onboard Y-cable for PS/2 combo port 2.5"...
  • Page 20 The contents of non-standard cPCI-6210 Series configurations may vary depending on customer requests. NOTE: NOTE: This product must be protected from static discharge and phys- ical shock. Never remove any of the components except at a static-free workstation. Use the anti-static bag shipped with the CAUTION: product when putting the board on a surface.

  • Page 21: Specifications

    cPCI-6210 Specifications 2.1 cPCI-6210 Specifications PICMG® 2.0 CompactPCI® Rev. 3.0 CompactPCI PICMG® 2.1 Hot Swap Specification Rev.2.0 Standard PICMG® 2.9 System Management Bus Rev. 1.0 PICMG® 2.16 Packet Switching Backplane Rev.1.0 Standard 6U CompactPCI® Board size: 233.23 mm x 160mm cPCI-6210: Single slot (4HP, 20.32mm) width with single slot Mechanical height heatsink...
  • Page 22 Up to four 10/100/1000BASE-T ports One Intel® 82579LM PHY controller for LAN2 and three PCIe x1 Intel® 82574L GbE controllers for LAN1/3/4 Ethernet LAN1/2/3 on front panel and LAN3 switchable to J3 for PICMG 2.16 support LAN4 routed to J3 for PICMG 2.16 Up to four serial ports One RS-232/422/485 serial port on front panel, additional...

  • Page 23: Table 2-1: Cpci-6210 Specifications

    cPCI-6210 BIOS AMI® EFI BIOS 64Mbit SPI flash memory Microsoft Windows XP Professional Microsoft Windows 7 64-bit OS Support Red Hat Enterprise Linux 6 64-bit Fedora 14 32-bit Other OS support on request Standard: 0°C to 60°C Operating Extended Temperature: -40°C to +70°C Temperature Extreme Extended Temperature*: -40°C to +85°C (w/ forced airflow)

  • Page 24: I/O Connectivity

    2.2 I/O Connectivity cPCI-6210 Processor Blade cPCI-6210 cPCI-6210D Function Faceplate Board Faceplate Board J3/J5 Gigabit Y x3 Y x3 Y x2 Ethernet Y x2 Y x2 USB 2.0 Y x3 Y x3 Y x6 DVI-I Y (DVI-D) Y (RGB) SATA Y x2 Y x2 Y x2...

  • Page 25: Power Requirements

    cPCI-6210 2.3 Power Requirements In order to guarantee a stable functionality of the system, it is rec- ommended to provide more power than the system requires. An industrial power supply unit should be able to provide at least twice as much power as the entire system requires of each voltage.
  • Page 26 Power Consumption This section provides information on the power consumption of the cPCI-6210 Series with different CPUs, 2x 4GB DDR3-1066 SO-DIMM memory and onboard 160GB SATA hard disk. The cPCI-6210 is powered by 5V and 3.3V. Power consumption at 100% CPU usage was measured by running the Intel Thermal Analysis Tool (TAT) and Turbo Boost and Hyper-Threading Tech- nology were enabled.

  • Page 27: Thermal Requirements

    2.4 Thermal Requirements This section provides information on the thermal requirements of the cPCI-6210 Series. Cooling of the board and its components is provided by the thermal module (passive heatsink) and is depen- dent on sufficient airflow from the chassis.
  • Page 28 Intel® Core™ i7-2710QE (cPCI-6210) Airflow Rate (CFM) 100% CPU Loading 75% CPU Loading Intel® Core™ i7-2710QE (cPCI-6210D) Airflow Rate (CFM) 100% CPU Loading 75% CPU Loading Specifications...
  • Page 29 cPCI-6210 Intel® Core™ i5-2510E (cPCI-6210) Airflow Rate (CFM) 100% CPU Loading 75% CPU Loading Intel® Core™ i5-2510E (cPCI-6210D) Airflow Rate (CFM) 100% CPU Loading 75% CPU Loading Specifications...
  • Page 30 This page intentionally left blank. Specifications...

  • Page 31: Functional Description

    Functional Description The following sections describe the cPCI-6210 Series features and functions. Processor Intel® Core™ i7 Processor The 2nd Generation Intel® Core™ processor family mobile and Intel® Celeron® processor family mobile are the next generation of 64-bit, multi-core mobile processor built on 32- nanometer pro- cess technology.
  • Page 32 Supported Technologies Intel® Virtualization Technology for Directed I/O (Intel® VT-d) Intel® Virtualization Technology (Intel® VT-x) Intel® Hyper-Threading Technology Intel® 64 Architecture Execute Disable Bit Intel® Turbo Boost Technology Interfaces Two channels of DDR3 memory with a maximum of one SO-DIMM per channel Memory DDR3 data transfer rates of 1066 MT/s, 1333 MT/s, and 1600 MT/s 64-bit wide channels...

  • Page 33: Chipset

    3.2 Chipset Mobile Intel® QM67 Express Chipset The cPCI-6210 Series is equipped with the Mobile Intel® QM67 Express Chipset, also referred to as PCH (Platform Controller Hub), to provide extensive I/O support. Functions and capabilities include: PCI Express Base Specification, Revision 2.0 support for up to eight ports with transfer rate up to 5 GT/s ACPI Power Management Logic Support, Revision 4.0a...

  • Page 34: Pmc/Xmc

    3.3 PMC/XMC The cPCI-6210D Series supports one PMC or XMC site for front panel I/O expansion. The PMC site provides a maximum 32-bit/66MHz PCI bus link using a TI XIO2001 PCIe-to-PCI bridge and PCIe x1 link. The PMC site supports +3.3V and 5V signaling. The XMC site provides a x8 PCIe lane.

  • Page 35: Trusted Platform Module

    cPCI-6210 3.6 Trusted Platform Module Upon request, the cPCI-6210 supports the Infineon SLB 9635 TT 1.2 Trusted Platform Module (TPM), a security controller with cryp- tographic functionality that provides users a secure environment in e-commerce transactions and Internet communications. The key features the TPM provides are: Hardware hash accelerator for SHA-1 algorithm.

  • Page 36: Battery

    3.7 Battery The cPCI-6210 is equipped with a 3.0V "coin cell" lithium battery for the Real Time Clock (RTC). The lithium battery must be replaced with an identical battery or a battery type recommended by the manufacturer. A Rayovac BR2032 with -40°C to +85°C operating temperature support is equipped on board by default 3.8 Intel®...

  • Page 37: Board Interfaces

    Board Interfaces This chapter describes the board layout, connector pin assign- ments, and jumper settings of the cPCI-6210 Series. 4.1 cPCI-6210(D) Series Board Layout SW5/8/7/9/3/6 CN17 SW10 CN12 CN10 CN15 CN26 CN15 SATA port (7-pin) QM67 PCH CN17 CFast socket...

  • Page 38: Cpci-6210D Assembly Layout

    4.2 cPCI-6210D Assembly Layout The dual-slot width cPCI-6210D is comprised of the cPCI-6210 single-slot main board and the DB-6210L2 riser card to provide a PMX/XMC site DB-6210L2 Figure 4-2: cPCI-6210D Assembly Layout Board Interfaces...

  • Page 39: Cpci-6210(D) Front Panel

    cPCI-6210 4.3 cPCI-6210(D) Front Panel cPCI-6210 Status LEDs DisplayPort DVI-I GbE 1/2/3 COM1 Reset Button USB 2.0 KB/MS cPCI-6210D COM5 PMC/XMC DisplayPort DVI-I GbE 1/2/3 COM1 Reset Button USB 2.0 KB/MS Figure 4-3: cPCI-6210(D) Front Panel Layout Board Interfaces...

  • Page 40: Table 4-1: Cpci-6210 Front Panel Status Led Descriptions

    Status LEDs Color Condition Indication System is off Power Green (PW) System is on Handles closed, System is on Preparing to shut down system Fast Blink (LED: 0.1s on, 0.9s off) Hot Swap Handles open and blade ready Blue (HS) to be removed Voltages out of tolerance: Slow Blink...

  • Page 41: Connector Pin Assignments

    cPCI-6210 4.4 Connector Pin Assignments Refer to “cPCI-6210(D) Series Board Layout” on page 23 and “cPCI-6210(D) Front Panel Layout” on page 25 for connector loca- tions USB Connectors Pin # Signal Name UV0- UV0+ Table 4-2: USB Connector Pin Definition PS/2 Keyboard/Mouse Port Pin # Signal...

  • Page 42: Table 4-3: Gbe Connector Pin Definitions

    RJ-45 Gigabit Ethernet Connectors 10BASE-T/ Pin # 1000BASE-T 100BASE-TX LAN_TX0+ LAN_TX0- LAN_TX1+ LAN_TX2+ LAN_TX2- Speed Activity LAN_TX1- LAN_TX3+ LAN_TX3+ Table 4-3: GbE Connector Pin Definitions Speed LED Activity LED Status (Green/Amber) (Amber) Network link is not established or system powered off Link 10 Mbps Active...

  • Page 43: Table 4-4: Com1 Connector Pin Definition

    cPCI-6210 COM1 Connector (DB-9) Pin # RS-232 RS-422 RS-485 DCD-L — — RXD- — TXD- TXD- DSR-L — — Ground — — DSR-L — — RTS-L TXD+ TXD+ CTS-L RXD+ — — — — Table 4-4: COM1 Connector Pin Definition The COM1 RS-422/485 pin definitions are different from the common DB-9 pin definitions.

  • Page 44: Table 4-6: Com1 Connector W/ Rs-422/485 Dongle Pin Def'n

    COM1 Connector with RS-422/485 Dongle (DB-9) Pin # RS-422 RS-485 TXD- TXD- TXD+ TXD+ RXD+ — RXD- — — — — — — — — — — — Table 4-6: COM1 Connector with RS-422/485 Dongle Pin Definition COM5 Box Header Pin # RS-232 DCD-L...

  • Page 45: Table 4-8: Com5 Connector Pin Definition

    cPCI-6210 COM5 Connector (DB-9) Pin # RS-232 DCD-L DSR-L Ground DSR-L RTS-L CTS-L RI-L Table 4-8: COM5 Connector Pin Definition The COM5 DB-9 front panel connector is only available on the cPCI-6210D (8HP) version. NOTE: NOTE: Board Interfaces...

  • Page 46: Table 4-9: Dvi-I Connector Pin Definition

    DVI-I Connector Pin # Signal Pin # Signal TMDS Data2- Hot Plug Detect TMDS Data2+ TMDS Data0- TMDSData0+ DDC Clock [SCL] DDC Data [SDA] Analog vertical sync TMDS Clock + TMDS Data1- TMDS Clock - TMDS Data1+ Analog Red Analog Green Analog Blue Analog Horizontal Sync +5 V Power...

  • Page 47: Table 4-10: Displayport Pin Definition

    cPCI-6210 DisplayPort Connector Pin # Signal Pin # Signal CN_DP0_P Ground CN_DP0_N CN_DP1_P Ground CN_DP1_N CN_DP2_P Ground CN_DP2_N CN_DP3_P Ground CN_DP3_N CN_CAD-L CN_CEC CN_AUX_P Ground CN_AUX_N DDP_HPD Ground P3V3 Table 4-10: DisplayPort Pin Definition Serial ATA Connector (CN15) Pin # Signal Table 4-11: Serial ATA Connector Pin Definition Board Interfaces...

  • Page 48: Table 4-12: Cfast Socket Pin Definition

    CFast Socket (CN17) Pin # Signal Name Ground SATA_TX-P SATA_TX-N Ground SATA_RX-N SATA_RX-P Ground CFast_CDI Ground Ground CFast_LED1 CFast_LED2 P3V3 P3V3 Ground Ground CFast_CDO Table 4-12: CFast Socket Pin Definition Board Interfaces...

  • Page 49: Table 4-13: Db-6920Sat Sata Connector Pin Definition

    cPCI-6210 Serial ATA Connector on DB-6920SAT Pin # Signal Signal Power P13~P15 Table 4-13: DB-6920SAT SATA Connector Pin Definition Board Interfaces...

  • Page 50: Table 4-14: Db-6920Sat Connector Pin Definition

    DB-6920SAT Connector (CN12) Signal Name Pin # Pin # Signal Name P3V3 P3V3 P3V3 P3V3 P1V8 P1V8 P1V8 SATA-TXN0 SATA-TXP0 SATA-RXN0 SATA-RXP0 RESET# Table 4-14: DB-6920SAT Connector Pin Definition Board Interfaces...

  • Page 51: Table 4-15: Pmc Connector Pin Definitions

    cPCI-6210 PMC Connectors on DB-6210L2 (JN1, JN2) Pin# JN1 Signal JN2 Signal PMC_TCK P12V N12V* PMC_TRST-L PMC_TMS PCIX_INTA-L NC (PMC_TDO) PCIX_INTB-L PMC_TDI PCIX_INTC-L PMC_MOD-L1 PCIX_INTD-L PMC_MOD-L2 P3V3_PMCAUX P3V3 CLK66_PCIX_PMC PMC_RST-L PMC_MOD-L3 P3V3 PCIX_GNT-L0 PMC_MOD-L4 PCIX_REQ-L0 PMC_PME-L PMC_VIO PCIX_AD30 PCIX_AD31 PCIX_AD29 PCIX_AD28 PCIX_AD27 PCIX_AD26...
  • Page 52 Pin# JN1 Signal JN2 Signal PCIX_FRAME-L PCIX_TRDY-L PCIX_IRDY-L P3V3 PCIX_DEVSEL-L PCIX_STOP-L PCIX_PCIXCAP PCIX_PERR-L PCIX_LOCK-L P3V3 PCIX_SERR-L PCIX_PAR PCIX_CBE-L1 PMC_VIO PCIX_AD14 PCIX_AD15 PCIX_AD13 PCIX_AD12 PCIX_M66EN PCIX_AD11 PCIX_AD10 PCIX_AD9 PCIX_AD8 P3V3 PCIX_AD7 PCIX_CBE-L0 PCIX_AD6 P3V3 PCIX_AD5 PCIX_AD4 PMC_VIO PCIX_AD3 PCIX_AD2 PCIX_AD1 PCIX_AD0 PCIX_ACK64-L P3V3 PCIX_REQ64-L...

  • Page 53: Table 4-16: Xmc Connector Pin Definition

    cPCI-6210 XMC Connector on DB-6210L2 Pin# 3.3V VPWR Not used PCIE_RST-L 3.3V VPWR Not used Not used 3.3V VPWR Not used +12V 3.3V VPWR Not used -12V Not used VPWR Not used Not used VPWR Not used 3.3V VPWR Not used Not used VPWR Not used...

  • Page 54: Table 4-17: Db-6210L2 Connector (Cn9) Pin Definition

    DB-6210L2 Connector (CN9) Signal Name Pin # Pin # Signal Name PCIE_A_RXP0 PCIE_A_TXP0 PCIE_A_RXN0 PCIE_A_TXN0 PCIE_A_RXP1 PCIE_A_TXP1 PCIE_A_RXN1 PCIE_A_TXN1 PCIE_A_RXP2 PCIE_A_TXP2 PCIE_A_RXN2 PCIE_A_TXN2 PCIE_A_RXP3 PCIE_A_TXP3 PCIE_A_RXN3 PCIE_A_TXN3 CLK-P PCIE_RST-L CLK-N SML_DAT XMC1_RST-L SML_CLK +12V P5V_STB +12V P5V_STB +12V -12V -12V +3.3V +3.3V +3.3V...

  • Page 55: Table 4-18: Db-6210L2 Connector (Cn10) Pin Definition

    cPCI-6210 DB-6210L2 Connector (CN10) Signal Name Pin # Pin # Signal Name PCIE_B_RXP0 PCIE_B_TXP0 PCIE_B_RXN0 PCIE_B_TXN0 PCIE_B_RXP1 PCIE_B_TXP1 PCIE_B_RXN1 PCIE_B_TXN1 PCIE_B_RXP2 PCIE_B_TXP2 PCIE_B_RXN2 PCIE_B_TXN2 PCIE_B_RXP3 PCIE_B_TXP3 PCIE_B_RXN3 PCIE_B_TXN3 PCIE_B_RXP4 PCIE_B_TXP4 PCIE_B_RXN4 PCIE_B_TXN4 PCIE_B_RXP5 PCIE_B_TXP5 PCIE_B_RXN5 PCIE_B_TXN5 PCIE_B_RXP6 PCIE_B_TXP6 PCIE_B_RXN6 PCIE_B_TXN6 PCIE_B_RXP7 PCIE_B_TXP7 PCIE_B_RXN7...

  • Page 56: Table 4-19: Compactpci J1 Connector Pin Definition

    CompactPCI J1 Connector Pin Assignment REQ64# ENUM# +3.3V V(I/O) ACK64# P3V3 CPCI_AD4 CPCI_AD3 CPCI_AD2 CPCI_AD7 P3V3 CPCI_AD6 CPCI_AD5 P3V3 CPCI_AD9 CPCI_AD8 CPCI_M66EN CPCI_CBE-L0 GND CPCI_AD12 CPCI_AD11 CPCI_AD10 P3V3 CPCI_AD15 CPCI_AD14 CPCI_AD13 CPCI_SERR-L P3V3 CPCI_PAR CPCI_CBE-L1 GND P3V3 IPMB_CLK IPMB_DAT CPCI_PERR-L GND GND CPCI_DEVSEL-L CPCI_STOP-L CPCI_LOCK-L GND P3V3...

  • Page 57: Table 4-20: Compactpci J2 Connector Pin Definition

    cPCI-6210 CompactPCI J2 Connector Pin Assignment CLK6 CLK5 RSTBTN# REQ6# GNT6# DEG# FAL# REQ5# GNT5# AD35 AD34 AD33 AD32 AD38 V(I/O) AD37 AD36 AD42 AD41 AD40 AD39 AD45 V(I/O) AD44 AD43 AD49 AD48 AD47 AD46 AD52 V(I/O) AD51 AD50 AD56 AD55 AD54 AD53...

  • Page 58: Table 4-21: Compactpci J3 Connector Pin Definition

    CompactPCI J3 Pin Assignment Pin Z 19 GND P12V 18 GND LAN3_D0+ LAN3_D0- LAN3_D2+ LAN3_D2- 17 GND LAN3_D1+ LAN3_D1- LAN3_D3+ LAN3_D3- 16 GND LAN4_D0+ LAN4_D0- LAN4_D2+ LAN4_D2- 15 GND LAN4_D1+ LAN4_D1- LAN4_D3+ LAN4_D3- 14 GND USB-OC4# USB-OC5# USB-OC6# USB-OC7# USB-OC8# 13 GND USB-P7+ USB-P7-...

  • Page 59: Table 4-22: Compactpci J5 Connector Pin Definition

    cPCI-6210 CompactPCI J5 Pin Assignment LAN4_LINK_ACT# +3.3V LAN3_LINK_ACT# +3.3V GND LVDS_DATA2- LVDS_DATA2+ LVDS_CLK- LVDS_CLD+ GND LVDS_DATA0- LVDS_DATA0+ LVDS_DATA1- LVDS_DATA1+ GND DSKCHG# HDSEL# RDATA# WRPORT# TRK0# WGATE# DETECT# WDATA# STEP# DIR# GPIO8 DRVA# MTR0# INDEX# GPIO7 DENSEL# GPIO6 SATA-RX5+ SATA-RX5- SATA-TX5+ SATA-TX5- LAN4_100# LAN3_100#...

  • Page 60: Switch And Jumper Settings

    4.5 Switch and Jumper Settings Refer to “cPCI-6210(D) Series Board Layout” on page 23 for switch locations. Load BIOS Default Switch (SW2) Press switch SW2 to load the default BIOS settings. Front/Rear VGA/LAN Selection Switch (SW3) Switch SW3 sets the VGA and LAN3 outputs to the front panel or to the rear panel of the RTM.

  • Page 61: Table 4-24: Mode Switch Settings

    cPCI-6210 Mode Switch (SW6) Switch SW6 is a multi purpose switch that allows users to define the board operating mode. Four pins independently con- trol the mode setting. All are set to OFF by default. Pin# Status Description Not used. Not used.

  • Page 62: Table 4-25: Com1/Debug Switch Settings

    COM1/Debug Switch (SW8) Switch SW8 sets the COM1 serial port as a standard RS-232 serial port or as an IPMI debugging port. Mode RS-232 COM port (default) IPMI debugging port Table 4-25: COM1/Debug Switch Settings COM1 Mode Selection Switches (SW9,SW10) Switch SW9 sets the COM1 serial port to RS-232 or RS-422/485 mode and SW10 sets COM1 to RS-422 or RS-485 mode.

  • Page 63: Getting Started

    2.5” SATA hard drive PMC/XMC module installation 5.1 CPU and Heatsink The cPCI-6210 Series comes with CPU and heatsink pre-installed. Removal of heatsink/CPU by users is not recommended. Please contact your ADLINK service representative for assistance. 5.2 CFast Card Installation Installing a CFast card –...
  • Page 64 2. Turn the board over (solder side up) and remove the two screws securing the CFast card retention bracket as indicated below. 3. Remove the CFast card retention bracket from the board. Getting Started...
  • Page 65 cPCI-6210 4. Turn the board over (component side up), then align and insert the CFast card into the slot until it is properly seated. 5. Align the CFast card retention bracket with the screw holes as indicated. Getting Started...
  • Page 66 6. Turn the board over (solder side up) and secure CFast card retention bracket to the board with two screws. 7. The CFast card installation is now complete. Getting Started...

  • Page 67: Compactflash Card Installation

    5.3 CompactFlash Card Installation A CompactFlash card can be installed on the cPCI-6210 Series using the DB-6920CF CompactFlash adapter (ordering code "DB-CF-SA"). Note that the CompactFlash adapter occupies the same space as the 2.5” SATA drive and both cannot be installed at the same time.
  • Page 68 2. Align the CompactFlash adapter with the onboard SATA connector (CN12) and press down firmly until it is prop- erly seated. 3. Turn the board over (solder side down) and secure adapter with two screws as shown. Getting Started...
  • Page 69 cPCI-6210 4. Turn the board over (component side up) and insert a CompactFlash card into the slot on the adapter. Install the CF retention bracket with two screws as shown. Getting Started...

  • Page 70: Sata Drive Installation

    5.4 2.5” SATA Drive Installation The cPCI-6210D provides space to install a slim type 2.5” SATA drive. Installing a SATA Drive 1. Locate the DB-6920SAT daughter board in the package contents and connect it to 2.5” slim type drive. Mount the SATA drive onto the bracket as shown.
  • Page 71 cPCI-6210 2. Secure the SATA drive onto the bracket with the four screws provided in the package. This unit is now referred to as the “drive assembly”. 3. Locate the board-to-board SATA connector (CN12) on the cPCI-6210 as indicated below. To install the drive assembly on the cPCI-6210D, the DB-6210L2 must first be removed as described in Step 1 of “Installing a PMC/XMC Module”...
  • Page 72 4. Align the drive assembly so that the connector on the DB-6920SAT mates with the board-to-board connector (CN12) on the cPCI-6210 as shown. Press down on the DB-6920SAT until it is properly seated. 5. Secure the top side of the drive assembly with two screws shown as below.
  • Page 73 cPCI-6210 6. Secure the bottom side of the drive assembly with four screws shown as below. 7. The SATA drive installation is now complete. Getting Started...

  • Page 74: Pmc/Xmc Module Installation

    5.5 PMC/XMC Module Installation The 8HP width cPCI-6210D provides space to install a PMC or XMC module. Installing a PMC/XMC Module 1. Remove the four screws indicated below to disassemble the DB-6210L2 daughter board from the cPCI-6210D. 2. Mount the PMC/XMC module to the DB-6210L2 and secure it using four screws provided by PMC/XMC sup- plier from the solder side of the DB-6210L2.
  • Page 75 cPCI-6210 3. Mount the PMC/XMC assembly onto the cPCI-6210D and secure the PMC/XMC assembly with the four screws removed in Step 1 as shown below. Getting Started...
  • Page 76 This page intentionally left blank. Getting Started...

  • Page 77: Driver Installation

    cPCI-6210 Driver Installation The cPCI-6210 drivers can be found on the ADLINK All-In-One DVD at X:\cPCI\cPCI-6210\ or from the ADLINK website (http://www.adlinktech.com). ADLINK provides validated driv- ers for Windows XP Professional and Windows 7. We recommend using these drivers to ensure compatibility. The VxWorks BSP can be downloaded from the cPCI- 6210 product page on the ADLINK website.
  • Page 78 7. Install the TPM driver by extracting and running the program in …\TPM\Infineon_Trusted_Platform_Module_2.1.1.0.zip. 8. Install the audio driver and utilities by extracting and running the program in …\Audio\RealTek_High_Definition_Audio _WINXP_5.10.0.6029.zip. 9. Install the Intel® Management Engine Interface driver by fol- lowing the steps below: R-click on My Computer, select Manage, and open the Device Manager.
  • Page 79 cPCI-6210 Select "Install from a list or specific location (Advanced)" and click Next. Extract the contents of …\cPCI-6210\Chipset\Intel _Management_Engine_Interface_AllOS_7.0.0.1144.zip. Select "Search for the best driver in these locations" and "Include this location in the search". Click Browse and navi- gate to the folder "MEI" where you extracted the contents of the zip file, and then click OK.
  • Page 80 This page intentionally left blank. Driver Installation...

  • Page 81: Utilities

    cPCI-6210 Utilities 7.1 Watchdog Timer This section describes the operation of the cPCI-6210’s watchdog timer (WDT). The primary function of the WDT is to monitor the cPCI-6210's operation and to reset the system if a software appli- cation fails to function as programmed. The following WDT func- tions may be controlled using a software application: enabling and disabling reloading timeout value...

  • Page 82: Sample Code

    For a detailed programming sample, refer to the sample code pro- vided on the ADLINK All-In-One CD. You can find it in the following directory: X:\cPCI\cPCI-6210\WDT. Sample Code The sample program written in C shown below offers an interactive way to test the Watchdog Timer under DOS. #include<stdio.h>...
  • Page 83 cPCI-6210 //Exit index port void Exit_IT8783_Config(unsigned int flag) if(flag) IT8783_ioPort = 0x4e; outportb(IT8783_ioPort, 0x02); outportb(IT8783_ioPort+1, 0x02); //Check chip void Get_IT8783_ID(unsigned int &ID1, unsigned int &ID2) outportb(IT8783_ioPort, 0x20); ID1 = inportb(IT8783_ioPort+1); outportb(IT8783_ioPort, 0x21); ID2 = inportb(IT8783_ioPort+1); //WDT and LED program void IT8783_3_WDTRun(unsigned int count_value, unsigned int PLEDflag) //for cPCI-6510 unsigned long tempCount;...
  • Page 84 outportb(IT8783_ioPort, 0xC5); registerValue = inportb(IT8783_ioPort + registerValue &= 0xfe; // set GP60 is alternate function outportb(IT8783_ioPort+1, registerValue); outportb(IT8783_ioPort, 0xCD); registerValue = inportb(IT8783_ioPort + registerValue |= 0x01; // set GP60 is output outportb(IT8783_ioPort+1, registerValue); outportb(IT8783_ioPort, 0xf8); outportb(IT8783_ioPort+1, 0x30); / PLED mapping to GP60 outportb(IT8783_ioPort, 0xf9);...
  • Page 85 cPCI-6210 registerValue &= 0x8f; registerValue |= 0x10; //enable WDT output through PowerOK! outportb(IT8783_ioPort+1, registerValue); // set WDT count is minute tempCount = count_value / 60; if((count_value%60) > 30) tempCount++; if(tempCount > 65535) tempCount = 65535; printf("WDT timeout in %d minutes.\n", tempCount);...

  • Page 86: Using The Trusted Platform Module

    7.2 Using the Trusted Platform Module This section describes the operation of the cPCI-6210’s Trusted Platform Module (TPM). Enabling TPM in BIOS The TPM is set to "Disabled" by default. Users wishing to use the TPM must first enable it in BIOS as follows: TPM is not supported by default.
  • Page 87 cPCI-6210 3. Set "TPM State" Enabled. Save settings and exit BIOS. Using the TPM Utility A utility for managing the TPM settings, the Infineon Security Plat- form Settings Tool, is provided with the TPM driver located on the All-In-One following directory: X:\cPCI\cPCI-6210\TPM.
  • Page 88 2. The Infineon Security Platform Settings Tool is shown in the screen capture below. 3. Click on the "User Settings" tab, then follow the on screen instructions to build a security platform. Utilities...
  • Page 89 cPCI-6210 4. Prepare a removable media to store important pass- words and data and follow the on screen instructions. Utilities...

  • Page 90: Bios Recovery

    7.3 BIOS Recovery The cPCI-6210 Series features AMI® EFI BIOS with BIOS recov- ery. If the BIOS becomes corrupted and you are unable to boot your system, the system will sound 4 beeps. Follow the instruc- tions below to re-flash the BIOS and recover the system.
  • Page 91 cPCI-6210 6. During the BIOS recovery process, you will see the following: 7. After the flash update is completed, power down the system and restart. The system should now boot up normally. After BIOS recovery, follow the instructions in Section 7.4 or Section 7.5 to restore your original BIOS version.

  • Page 92: Bios Update - Dos Method

    7.4 BIOS Update - DOS Method Follow the instructions below to update the BIOS or restore a pre- vious BIOS version using a DOS bootable storage device. 1. Download the required BIOS file from the product website: www.adlinktech.com/PD/web/PD_detail.php?cKind=&pid=1013 2. Prepare a DOS bootable floppy disk or USB flash drive and unzip the contents of the BIOS file to the disk 3.
  • Page 93 cPCI-6210 2. The BIOS Updater will display the contents of the selected storage device. Navigate to the desired BIOS ROM file and press <Enter>. If the file has been saved in a subdirectory, select the subdirectory and press <Enter> to view its contents. 3.
  • Page 94 4. After the update process is complete, system will auto- matically reboot. Utilities...

  • Page 95: Bios Setup Utility

    cPCI-6210 BIOS Setup Utility The following chapter describes basic navigation for the AMIBIOS®8 BIOS setup utility. 8.1 Starting the BIOS To enter the setup screen, follow these steps: 1. Power on the motherboard 2. Press the < Delete > key on your keyboard when you see the following text prompt: <...
  • Page 96 Setup Menu The main BIOS setup menu is the first screen that you can navi- gate. Each main BIOS setup menu option is described in this user’s guide. The Main BIOS setup menu screen has two main frames. The left frame displays all the options that can be configured.
  • Page 97 cPCI-6210 Navigation Note: There is a hot key legend located in the right frame on most setup screens. Keyboard Commands Enter Selects the highlighted option or submenu. < > The Left and Right "Arrow" keys allow you to select a setup screen.

  • Page 98: Main Setup

    8.2 Main Setup When you first enter the Setup Utility, you will enter the Main setup screen. You can always return to the Main setup screen by select- ing the Main tab. There are two Main Setup options. They are described in this section.
  • Page 99 cPCI-6210 System Time/System Date Use this option to change the system time and date. Highlight Sys- tem Time or System Date using the < Arrow > keys. Enter new val- ues using the keyboard. Press the < Tab > key or the < Arrow > keys to move between fields.

  • Page 100: Advanced Bios Setup

    8.3 Advanced BIOS Setup Select the Advanced tab from the setup screen to enter the Advanced BIOS Setup screen. You can select any of the items in the left frame of the screen, such as SuperIO Configuration, to go to the sub menu for that item. You can display an Advanced BIOS Setup option by highlighting it using the <...
  • Page 101 cPCI-6210 8.3.1 PCI Subsystem Settings PCI Latency Timer Value to be programmed into PCI Latency Timer Register. Options: 32 PCI Bus Clocks, 64 PCI Bus Clocks, 96 PCI Bus Clocks, 128 PCI Bus Clocks, 160 PCI Bus Clocks, 192 PCI Bus Clocks, 224 PCI Bus Clocks, 248 PCI Bus Clocks.
  • Page 102 8.3.2 Trusted Computing Trusted computing is an industry standard to make personal com- puters more secure through a dedicated hardware chip, called a Trusted Platform Module (TPM). This option allows you to enable or disable the TPM support. BIOS Setup Utility...
  • Page 103 cPCI-6210 8.3.3 CPU Configuration Hyper-Threading Enables/disables Hyper-Threading Technology. Active Processor Cores Number of cores to enable in each processor package. Options: All, 1, 2. Intel Virtualization Enables/disables Intel Virtualization Technology. BIOS Setup Utility...
  • Page 104 8.3.4 SATA Configuration SATA Controllers This item specifies enables/disables the SATA Controllers. SATA Mode The SATA interface can be configured as a legacy IDE, RAID and AHCI mode. BIOS Setup Utility...
  • Page 105 cPCI-6210 8.3.5 PCH-FW Configuration The setup screen reports “Management Engine Technology Parameters” information. BIOS Setup Utility...
  • Page 106 8.3.6 AMT Configuration Intel AMT Enable/Disable the Intel® Active Management Technology BIOS extension. BIOS Setup Utility...
  • Page 107 cPCI-6210 8.3.7 USB Configuration Legacy USB Support Legacy USB Support refers to USB mouse and keyboard sup- port. Normally if this option is not enabled, any attached USB mouse or keyboard will not become available until a USB com- patible operating system is fully booted with all USB drivers loaded.
  • Page 108 Device Reset Timeout USB mass storage device Start Unit command timeout. Device Power-up Delay Maximum time the device will take before it properly reports itself to the Host Controller. "Auto" uses these default values: for a Root port it is 100ms, for a Hub port the delay is taken from the Hub descriptor.
  • Page 109 cPCI-6210 8.3.8 Super IO Configuration Serial Port 1/2/3/5/6 Configuration Each sub-menu allows you to Enable/Disable and set the parameters of Serial Ports 1, 2 (RTM), 3 (RTM), 5 (Front Panel), 6 (IPMI). BIOS Setup Utility...
  • Page 110 8.3.9 H/W Monitor BIOS Setup Utility...
  • Page 111 cPCI-6210 8.3.10 Serial Port Console Redirection The settings specify how the host computer and the remote computer will exchange data. Both computers should have the same or compatible settings. Console Redirection Enable or disable Console Redirection. BIOS Setup Utility...
  • Page 112 Console Redirection Settings Terminal Type VT-UTF8 is the preferred terminal type for out-of-band man- agement. The next best choice is VT100+ and then VT100. Options: VT100, VT100+, VT-UTF8, ASNI. Bits per Second Select the bit rate (bits/second) you want the serial port to use for console redirection.
  • Page 113 cPCI-6210 Communication with slow devices may require more than 1 stop bit. Set this value to 1 or 2. Flow Control Set this option to select Flow Control for console redirection. The settings for this value are Noneand Hardware RTS/CTS. Flow control can prevent data loss from buffer overflow.
  • Page 114 8.3.11 Sandy Bridge PPM Configuration (Processor Power Management) EIST Enables/disables Enhanced Intel SpeedStep® Technology (EIST) Turbo Mode Enables/disables Turbo Mode. BIOS Setup Utility...

  • Page 115: Chipset Configuration

    cPCI-6210 8.4 Chipset Configuration Select the Chipset tab from the setup screen to enter the Chipset BIOS Setup screen. You can select any of Chipset BIOS Setup options by highlighting it using the < Arrow > keys. The Chipset BIOS Setup screen is shown below. BIOS Setup Utility...
  • Page 116 8.4.1 System Agent (SA) Configuratio VT-d Enables/disables Intel® Virtualization Technology for Directed I/O (VT-d). Graphics Configuration Primary Display Allows you to select which graphics controller to use as the pri- mary boot device. Options: Auto, IGFX, PEG, PCI. Internal Graphics Allows you to select enable/disable.the internal graphics.
  • Page 117 cPCI-6210 DVMT Pre-Allocated Select DVMT 5.0 Pre-Allocated Graphics Memory size (fixed) used by the internal graphics device. DVMT Total Gfx Mem Select DVMT5.0 Total Graphic Memory size used by internal graphics device. Options: 128MB, 256MB, Maximum. Memory Information PCH-IO Configuration PCH LAN Controller Enable or disable onboard NIC (Intel 82579).
  • Page 118 Azalia HD Audio The onboard HDA Controller. Set this value to Enabled, Dis- abled, Auto (enabled if present, disabled otherwise). Azalia Docking Support Enable or disable Azalia Docking Support of Audio Controller. Azalia Internal HDMI Codec Enable or disable internal HDMI codec for Azalia. USB Configuration EHCI1/2 Controller 1 USB 2.0 (EHCI) support.
  • Page 119 cPCI-6210 PCI Express Configuration Use these submenus to enable/disable PCI Express Root Port 1 (Rear), PCI Express Root Port 5 /7/8 (GbE Intel 82574L). BIOS Setup Utility...

  • Page 120: Boot Configuration

    8.5 Boot Configuration Select the Boot tab from the setup screen to enter the Boot Con- figuration screen. You can select any of the items in the left frame of the screen to go to the sub menu for that item. You can display a Boot Configuration option by highlighting it using the <...

  • Page 121: Security Setup

    cPCI-6210 8.6 Security Setup Administrator Password Use this option to set a password for administrators with full con- trol of the BIOS setup utility. User Password Use this option to set a password for users with limited access to the BIOS setup utility. BIOS Setup Utility...

  • Page 122: Save & Exit

    8.7 Save & Exit Select the Save & Exit tab from the setup screen to enter the Save & Exit setup screen. You can display a Save & Exit BIOS setup option by highlighting it using the < Arrow > keys. The Save & Exit BIOS setup screen is shown below.
  • Page 123 cPCI-6210 Save Changes Save changes made so far to any of the setup options. Discard Changes Discard changes made so far to any of the setup options. Restore Defaults Restore/Load Defaults values for all the setup options. Save as User Defaults Save changes made so far as User Defaults.
  • Page 124 This page intentionally left blank. BIOS Setup Utility...

  • Page 125: Ipmi User Guide

    cPCI-6210 IPMI User Guide 9.1 Introduction This chapter is written for those who already have a basic under- standing of the newest implementation of the baseboard manage- ment controller (BMC) of the Intelligent Platform Management Interface (IPMI) specification rev. 2.0. It also describes the OEM extension IPMI command usages which are not listed in the IPMI specification.
  • Page 126 Description IPMI Command NetFn CMD Spec (Required by PICMG 3.0/2.9) This command returns a GUID (Globally Unique ID), also referred to as a UUID Get Device GUID 20.8 (Universally Unique IDentifier), for the management controller. (Optional/Optional) This is a broadcast version of the ‘Get Broadcast "Get Device ID’...
  • Page 127 cPCI-6210 Description IPMI Command NetFn CMD Spec (Required by PICMG 3.0/2.9) This global command is used to retrieve the present setting for the Event Receiver Slave Address and LUN. This command Get Event Receiver 29.2 is only applicable to management controllers that act as IPMB Event Generators.
  • Page 128 Description IPMI Command NetFn CMD Spec (Required by PICMG 3.0/2.9) This command provides the ability to disable or enable Event Message Set Sensor Event Generation for individual sensor events. 35.10 Enable The command is also used to enable or disable sensors in their entirety using the disable scanning bit.

  • Page 129: Oem Commands Summary Table

    cPCI-6210 9.3 OEM Commands Summary Table Command NetFn Code Cmd Code OemShowRevision OEM (C0h) OemRescanGaInput OEM (C0h) OemTestFunction OEM (C0h) OemSetBlueLEDLongBlinking OEM (C0h) OemReportGeoAddress OEM (C0h) OemEnableSmbus OEM (C0h) OemDisableSmbus OEM (C0h) OemDispDebugVariable OEM (C0h) OemResetHost OEM (C0h) OemPowerOff OEM (C0h) OemPowerOn OEM (C0h) OemShowRevision...
  • Page 130 OemRescanGaInput This command is used to rescan the geo-address input pins and reset the IPMB address according to the input value. Action Byte Value Description NetFn/LUN for OEM Request OEM defined command Complete Code 00h means OK Response New IPMB address New IPMB address value OemTestFunction Internal test purposes only.
  • Page 131 cPCI-6210 OemReportGeoAddress This command can report the IPMB address, the GA pin input sta- tus, and the event forwarding control value. Action Byte Value Description NetFn/LUN for OEM Request OEM defined command Complete Code 00h means OK IPMB address IPMB address value Response GA value GA pin input status...
  • Page 132 OemDispDebugVariable This command can report up to 5 interval values for debug pur- poses. For developers only. Action Byte Value Description NetFn/LUN for OEM Request OEM defined command Complete Code 00h means OK *Debug variable 1 *Debug variable 2 Response *Debug variable 3 *Debug variable 4 *Debug variable 5...

  • Page 133: Compactpci Address Map

    cPCI-6210 OemPowerOn This command is implemented to control the system’s status if power-on is required. Operators can control the system remotely. Action Byte Value Description NetFn/LUN for OEM Request OEM defined command Response Complete Code 00h means OK 9.4 CompactPCI Address Map Since more than one system may be installed in a single chassis, we allocate each IPMB address based on GA input as peripheral cards.

  • Page 134: Communications With Ipmc

    9.5 Communications with IPMC Operating systems need to use a serial port to communicate with the IPMC. The resource setting of the serial port must be IO: 0x2F0 and IRQ: 7. The communication setting of the serial port must be BaudRate: 9600, DataBit: 8, ParityCheck: None, StopBit: 1, and FlowControl: None.

  • Page 135: Relevant Documents

    cPCI-6210 9.7 Relevant Documents Document Title Revision Source Intelligent Platform Document Revision 1.0 Intel Corp. Management Interface February 12, 2004 http://www.intel.com/design/ Specification v2.0 servers/ipmi/spec.htm PICMG 2.9 D1.0 January 21, 2000 CompactPCI System Management Specification Intelligent Platform Document Revision 0.15 Intel Corp. Management Bus June 24, 1997 http://www.intel.com/design/...
  • Page 136 This page intentionally left blank. IPMI User Guide...

  • Page 137: Important Safety Instructions

    cPCI-6210 Important Safety Instructions For user safety, please read and follow all instructions, WARNINGS, CAUTIONS, and NOTES marked in this manual and on the associated equipment before handling/operating the equipment. Read these safety instructions carefully. Keep this user’s manual for future reference. Read the specifications section of this manual for detailed information on the operating environment of this equipment.
  • Page 138 Never attempt to fix the equipment. Equipment should only be serviced by qualified personnel. A Lithium-type battery may be provided for uninterrupted, backup or emergency power. Risk of explosion if battery is replaced with one of an incorrect type. Dispose of used batteries appropriately. WARNING: Equipment must be serviced by authorized technicians when:...

  • Page 139: Getting Service

    San Jose, CA 95138, USA Tel: +1-408-360-0200 Toll Free: +1-800-966-5200 (USA only) Fax: +1-408-360-0222 Email: info@adlinktech.com ADLINK Technology (China) Co., Ltd. Address: (201203) 300 Fang Chun Rd., Zhangjiang Hi-Tech Park Pudong New Area, Shanghai, 201203 China Tel: +86-21-5132-8988 Fax: +86-21-5132-3588 Email: market@adlinktech.com...
  • Page 140 84 Genting Lane #07-02A, Cityneon Design Centre Singapore 349584 Tel: +65-6844-2261 Fax: +65-6844-2263 Email: singapore@adlinktech.com ADLINK Technology Singapore Pte. Ltd. (Indian Liaison Office) Address: #50-56, First Floor, Spearhead Towers Margosa Main Road (between 16th/17th Cross) Malleswaram, Bangalore - 560 055, India Tel: +91-80-65605817, +91-80-42246107 Fax:...

Table of Contents
