Table 1.1:Mic-3321 Switch Descriptions; Figure 1.3:Mic-3321 S1 Location (1F); Switch Locations - Advantech 3U Compact PCI User Manual

1.5.1 Switch Locations

Table 1.1 lists the switch functions of MIC-3321 (be sure that the switch
is white one). Figure 1.3 and Figure 1.4 show the locations of S1 and S2,
respectively.
Table 1.1: MIC-3321 Switch Descriptions
DIP-SW Mode
1F-S1 Mode
2F-S2 Mode
MIC-3321 User Manual
Setting

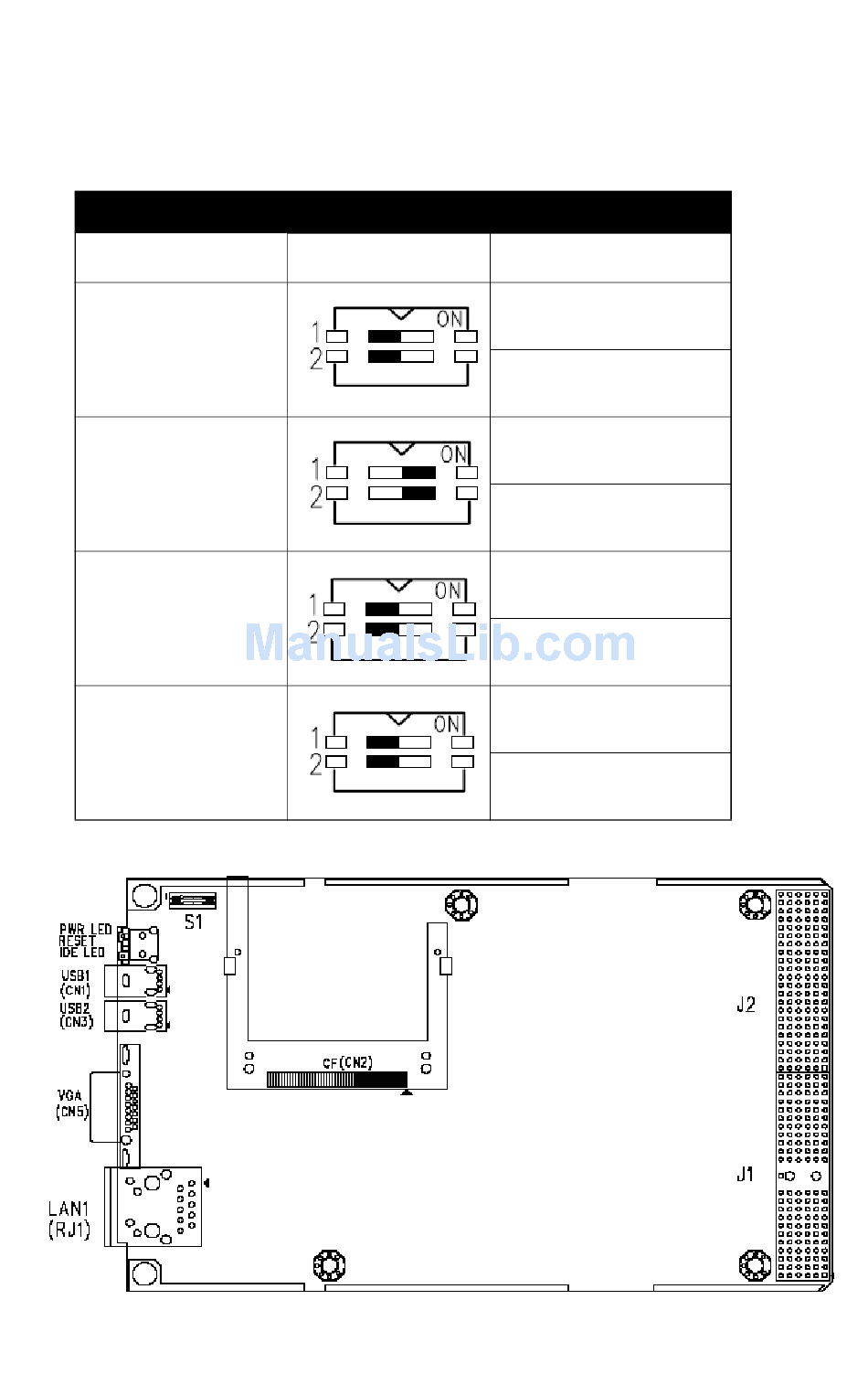

Figure 1.3: MIC-3321 S1 Location (1F)
Function
Bit-1 : ON
LAN1 on Rear I/O
Bit-2 : OFF
CF : Slave
Bit-1 : OFF
LAN1 on Front I/O
Bit-2 : ON
CF : Master
Bit-1 : ON
LAN2 on Rear I/O
Bit-2 : OFF
N/C
Bit-1 : OFF
LAN2 on Front I/O
Bit-2 : ON
N/C
