Advantech MIC-3321 Startup Manual

MIC-3321 Series
3U CompactPCI Pentium M 760 2.0G High-performance Con-
troller
Packing List
Before installation, please make sure that you have:
• MIC-3321 Series CPU Board
• Driver CD
• Quick Start User Manual
If anything is missing or damaged, contact your
distributor or sales representative immediately.
User Manual
For detailed information on this product, refer to:
CD:MIC-3321\Manual\MIC-3321.pdf
Declaration of Conformity
FCC Class A
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reason-
able protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residen-
tial area is likely to cause interference in which case the
user is required to correct interference at his own expense.
CE
This product has passed the CE test for environmental spec-
ifications when shielded cables are used for external wiring.
We recommend the use of shielded cables. This kind of
cable is available from Advantech. Please contact your local
supplier for ordering information.
Overview

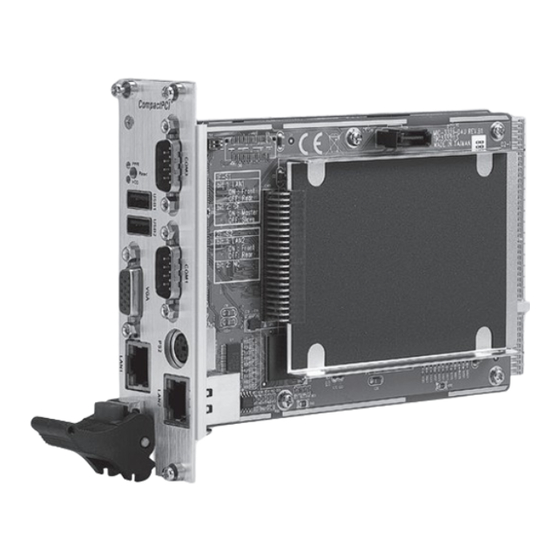

MIC-3321 is a 3U, all-in-one, controller board, compliant
with PICMG 2.0 R3.0 CompactPCI specifications. For high
computing performance, MIC-3321 uses an Intel Pentium
M 760 2.0GHz CPU and Intel 915GM chipset. This CPU
provides high performance with its on-chip 2 MB L2 cache
and is delivered in a Micro-FCBGA 479 package.
MIC-3321 offers powerful functions on a 3U-sized board
for performance-demanding applications like real-time
machine control and industrial automation.
Notes
For more information on this and other Advantech
products, please visit our websites at:
http://www.advantech.com/eAutomation
For technical support and service:
http://www.advantech.com/support/
This startup manual is for MIC-3321 Series
Part No. 2003332112
1 Startup Manual
Specifications
Standard SBC Functions
CPU: MIC-3321 supports Intel Pentium M 2.0 GHz
Optional: Celeron M 1.0GHz/ Celeron M 800MHz
BIOS:
Chipset: Intel 915GM Graphics and Memory
System Memory:
Directed Soldered 512MB DDR2 533 SDRAM
(MIC-3321/3321S)
Directed Soldered 512MB DDR2 400 SDRAM
(MIC-3321C/3321CS)
Directed Soldered 256MB DDR2 400 SDRAM
(MIC-3321LS)
Max:1GB
P-IDE: One Channel IDE CompactFlash socket
SATA: One external SATA Connector
Serial Ports: Two RS-232 ports with
16C550UARTs (or compatible) with 16-byte FIFO
buffer. One Front I/O, the other Rear I/O
Keyboard and PS/2 Mouse Connector:
One 6-pin mini-DIN connector is located on the
mounting bracket for easy connection to a keyboard
or PS/2 mouse
USB Port: Four USB2.0 Channels up to 480MB,
PCI-to-PCI Bridge: PERICOM P17C8150-32-bit/
Ethernet channels with LED: 1COM port, 1 VGA-
CRT Channel, 1 PS/2 keyboard/mouse channel
(MIC-3321D-DE Only and must be used with MIC-
3521)
Watchdog Timer: Provides system reset and soft-
ware control. Time interval is programmable from 1
to 255 seconds/minutes
Ethernet LAN:
10/100/1000Base-TX Gigabit Ethernet
Controller Chips:
Two Intel 825723E/L PCI Express Gigabit
3rd Edition
Ethernet Controllers support Pre-boot
May 2011
Award 4 Mb flash memory
Controller Hub (GMCH) Intel
82801FBM I/O Controller Hub (ICH6M)
type II*1 (select master/slave DIP-SW)
UltraDMA/100/66/33*a (2.5"HDD)
2 front I/O, 2 rear I/O
33MHz CompactPCI interface
