Figure 1.1:Mic-3321 Function Block Diagram; Display; Mechanical And Environmental Specifications; Function Block Diagram - Advantech 3U Compact PCI User Manual

1.2.2 Display

• Controller: Intel Graphics Media Accelerator 900
• VRAM: DVMT3.0 128MB
• Resolution: Up to 2048x1536 with 32-bit color at 75Hz

1.2.3 Mechanical and Environmental Specifications

• Board Size (W x H) : 160 x 100 mm (3U)
• Operating Temperature:0 ~ 50° C (MIC-3321 Pentium M 2.0GHz)
• Storage Temperature: -40 ~ 80° C
• Board Weight: 0.6 kg

1.3 Function Block Diagram

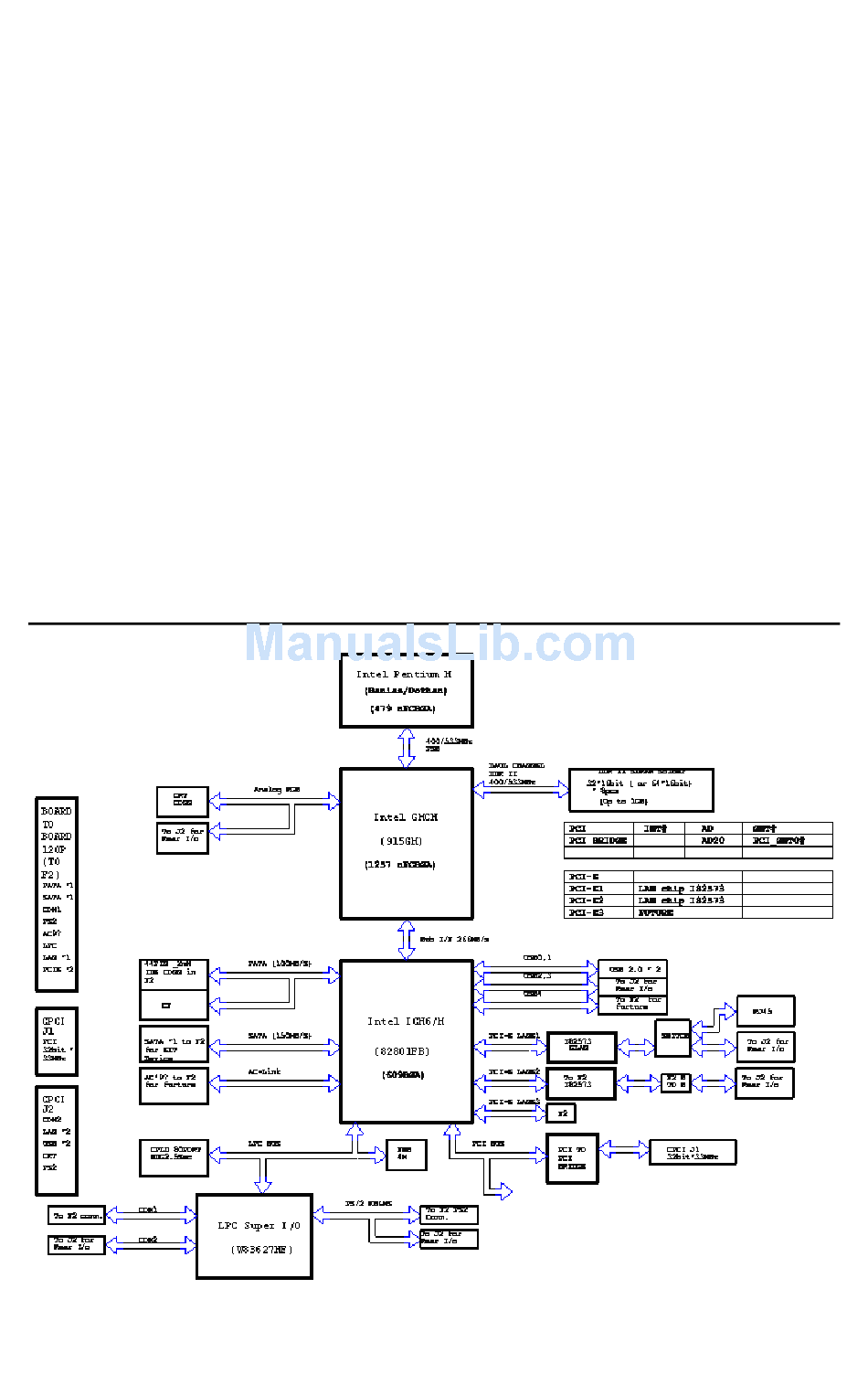

Figure 1.1: MIC-3321 Function Block Diagram
MIC-3321 User Manual
0~50° C (MIC-3321LS Celeron M 800MHz)
-25 ~ 70° C (MIC-3321C Celeron M 1.0G)
