4.2.5 PNP/PCI Configuration Setup

This section describes configuring the PCI bus system. PCI, or Personal
Computer Interconnect, is a system that allows I/O devices to operate at
speeds nearing the speed the CPU itself uses when communicating with
its own special components. This section covers some very technical
items and it is strongly recommended that only experienced make any
changes to the default settings.

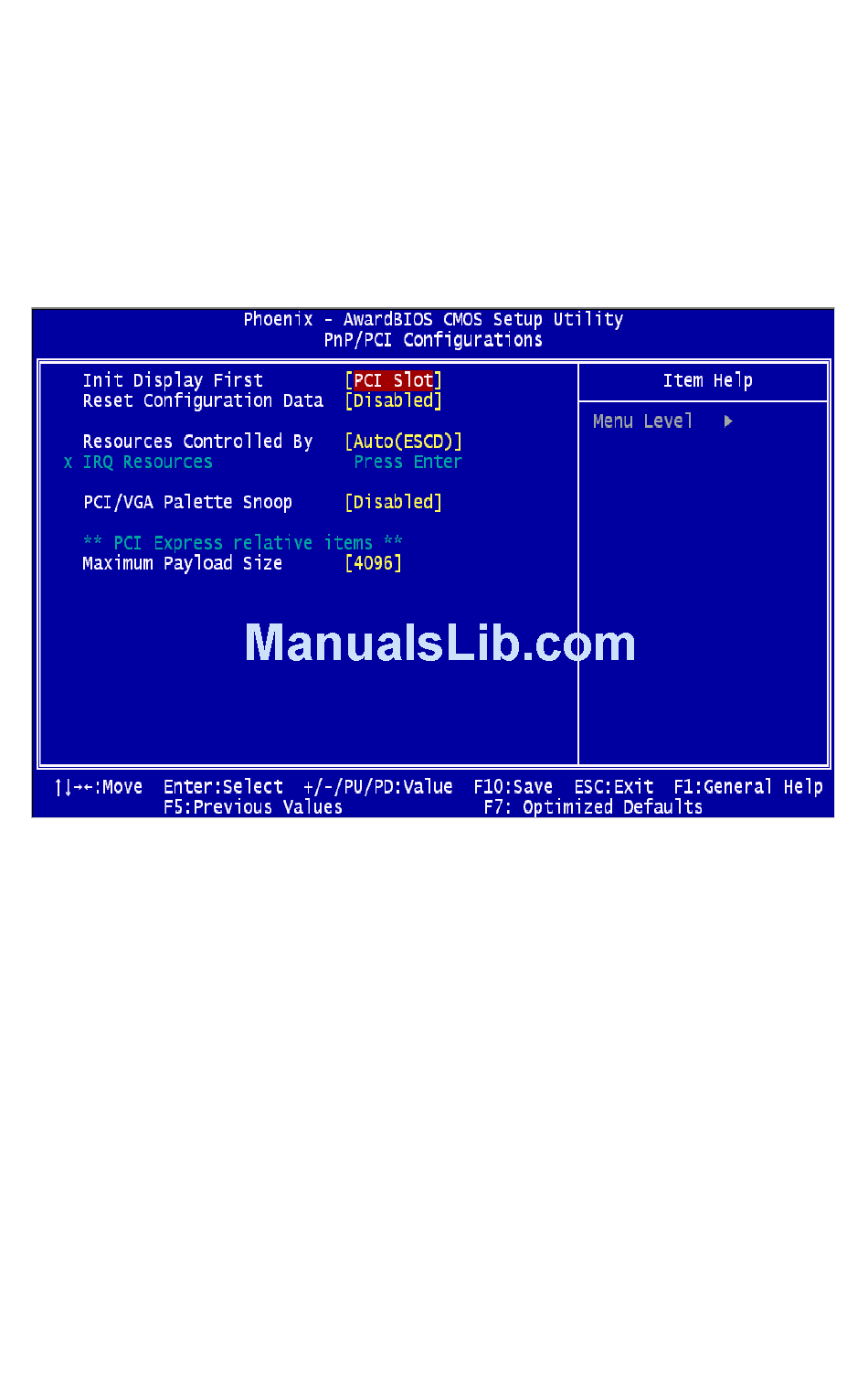

Figure 4.6: PNP/PCI configuration screen
Init Display Fiest
The Default is PCI Slot.Select PCI Slot to boot VGA in extended VGA
Card.
Reset Configuration Data
The default is Disabled. Select Enabled to reset Extended System Config-
uration Data (ESCD) if you have installed a new add-on card, and system
configuration is in such a state that the OS cannot boot.
29 Chapter 4
