4.4.13 Motor (Flatbed) Removal

1. Remove the Document cover. (See subsection 4.5.2)
2. Remove the ADF unit. (See subsection 4.5.3 and subsection 4.5.4)
3.
Remove the upper housing. (See subsection 4.5.6)
4.
Remove the flatbed optical chassis. (See subsection 4.5.7)
5.
Disconnect the motor cable.
6.
Remove the ring on the gear indicated.
7.
Remove motor screws.

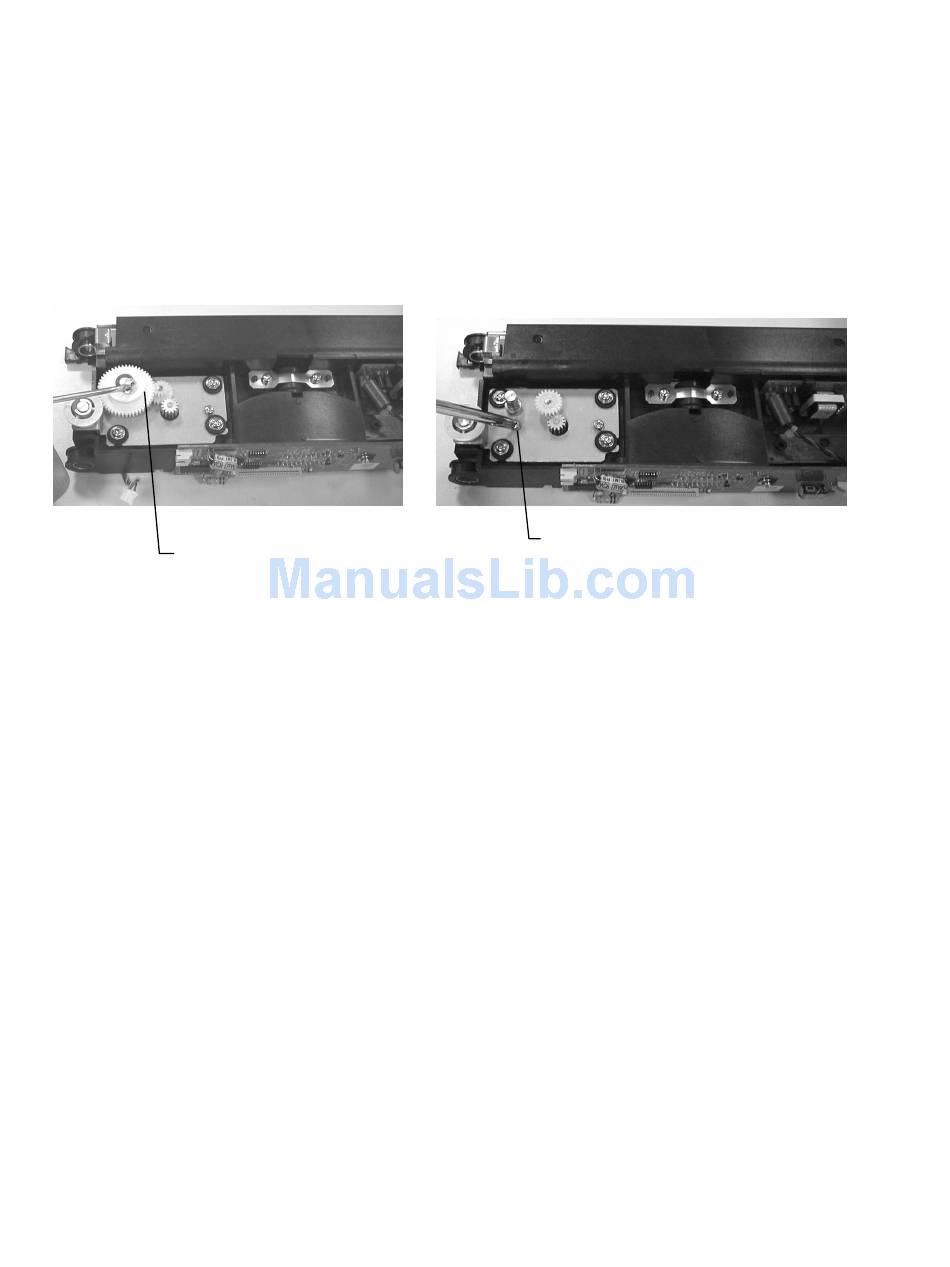

Ring on Gear
Figure 4.24 Motor Removal (Flatbed)
4-22
Fixing
Screws
