4.4.14 The Control Panel PCBA Removal

1. Place the scanner on its side as shown in Figure 4.25.
2. Loosen the control panel from the scanner.
3. Disconnect the flat cable.
4. Remove the control panel cover gently.
Flat Cable

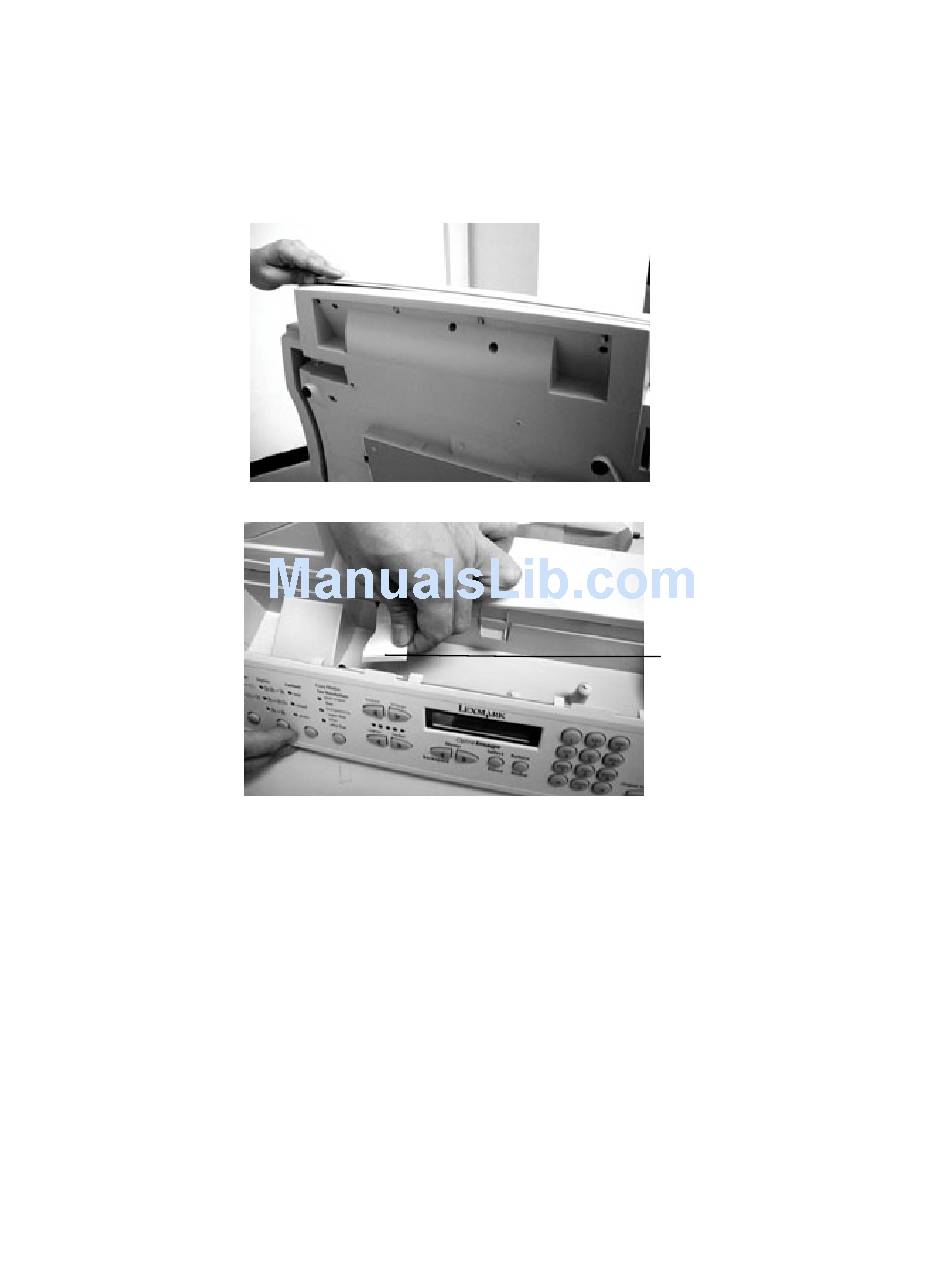

Figure 4.25 The Control Panel PCBA Removal
4-23
