2.4

Cable Connection

Two cables are required to operate the scanner: the 1394 signal cable and the power cable. The
power cable connects the scanner to the power source. The 1394 signal cable connects the
scanner to the host for image transfer.
2.4.1

Power Cable Connection

1. Remove the power cable from the PVC bag.
2. Turn the power switch to the "off" position ("0" depressed).
3. Connect the female plug of the power cable to the scanner connector, and press it firmly
into place. (See Figure 2.4)
4. Connect the other end of the power cable to the power outlet, and press it firmly into
place.

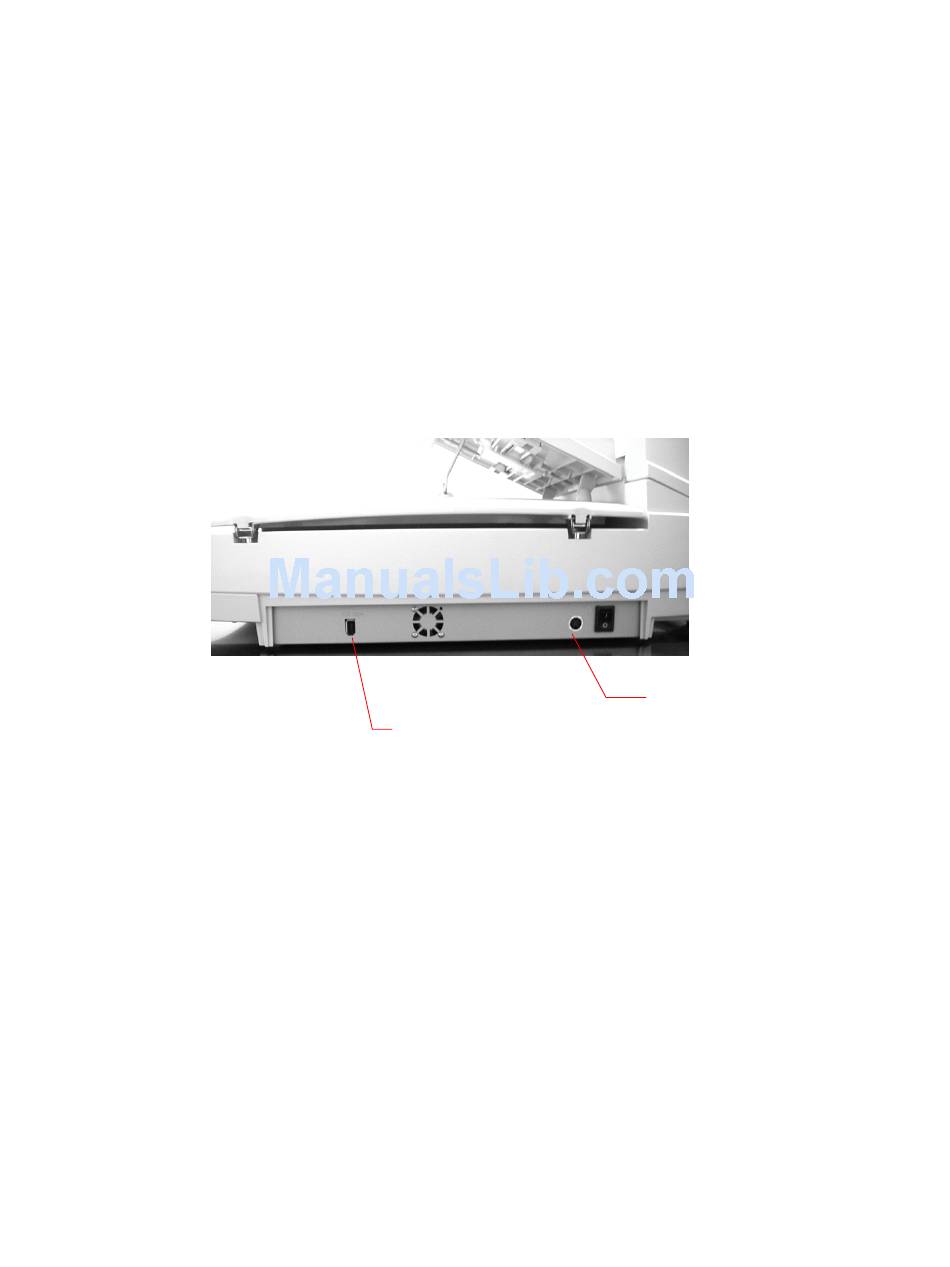

1394 Port
Figure 2.4 Cable connection
2-3
Power Jack
