4.4.9 Upper Housing Removal
1. Remove the Document cover. (See subsection 4.4.3)
2. Remove the ADF unit. (See subsection 4.4.4 and subsection 4.4.5)
3. Remove the rubber pad with a flat screwdriver.
4. Remove the fixing screws beneath the rubber pad.
5. Loosen the attachment on the side of the document cover to remove the upper housing.
Rubber Pad
Attachment

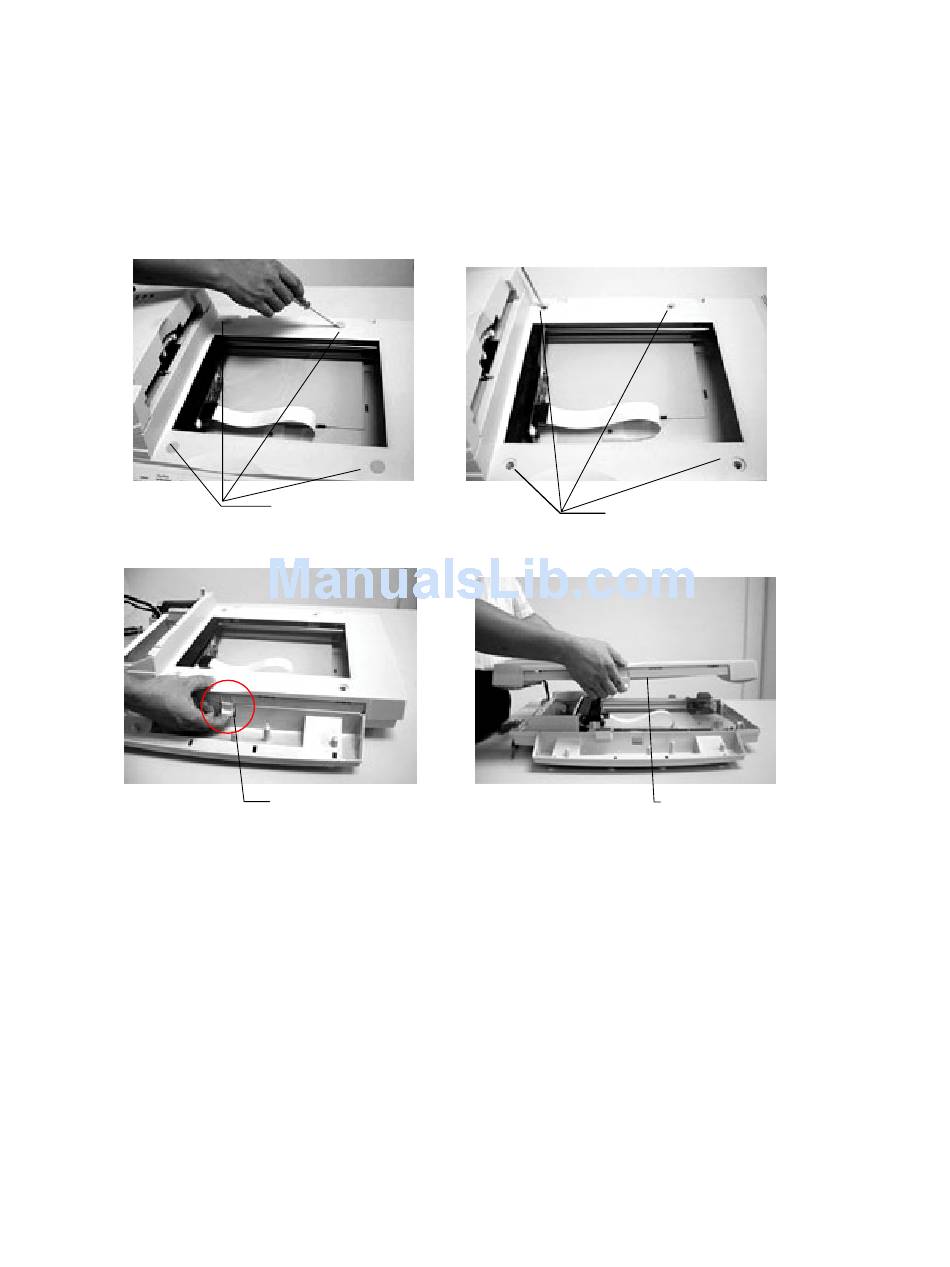

Figure 4.20 Upper Housing Removal
4-18
Fixing Screws
Upper
Housing
