4.4.5
ADF Optical Chassis Removal
1. Remove the ADF cover. (See subsection 4.4.4)
2. Remove the ADF fixing screws to pull the ADF optical chassis as shown in Figure 4.16a.
3. Use a flat screwdriver to remove the inverter board.
4. Disconnect the ADF motor board cable as shown in Figure 4.16b.
Fixing Screws

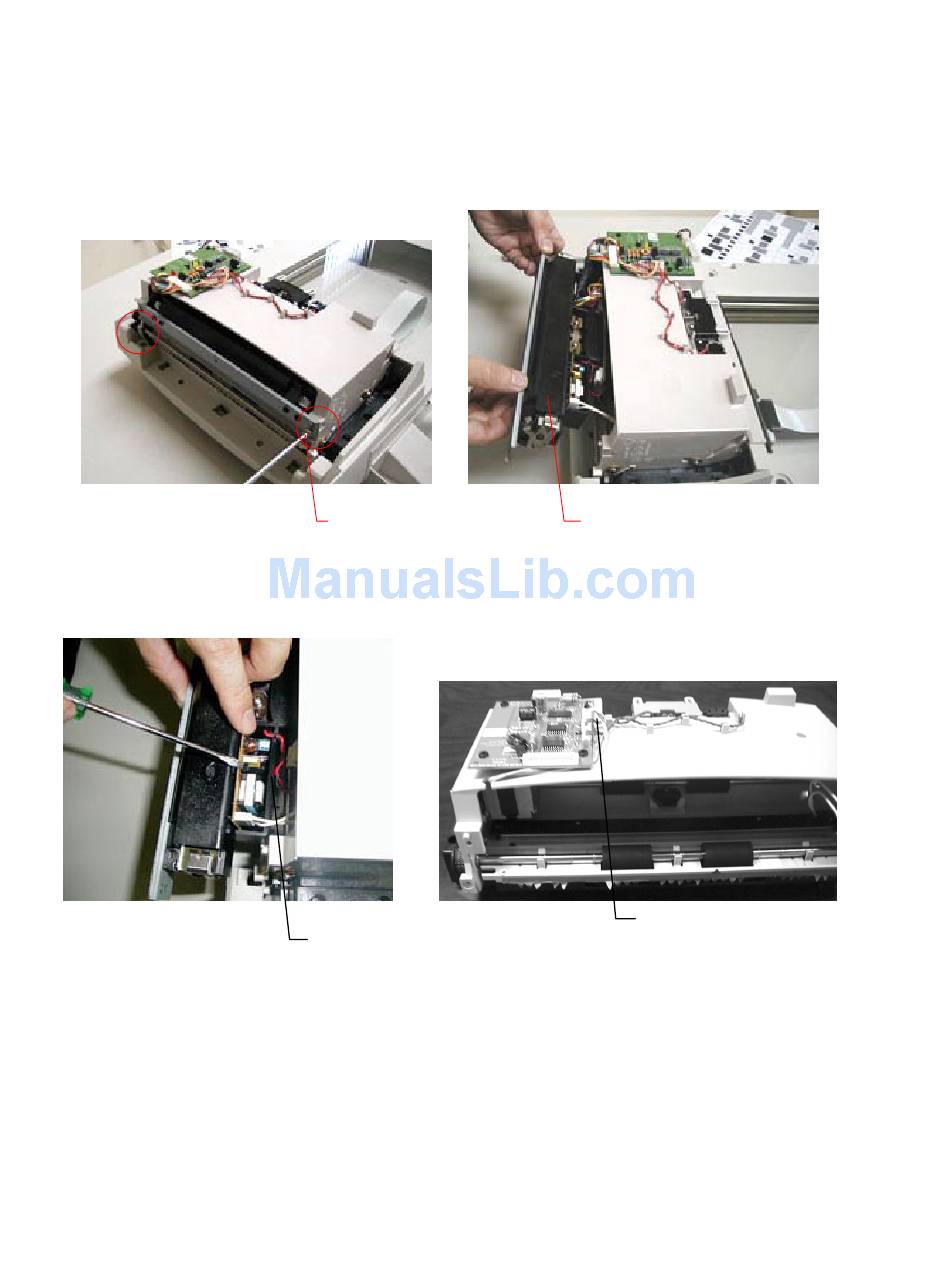

Figure 4.16a Removing the ADF Optical Chassis (1)
Inverter
Figure 4.16b Removing the ADF Optical Chassis (2)
ADF Optical Chassis
4-14
ADF Motor
Board Cable
