2
PANEL DESCRIPTION

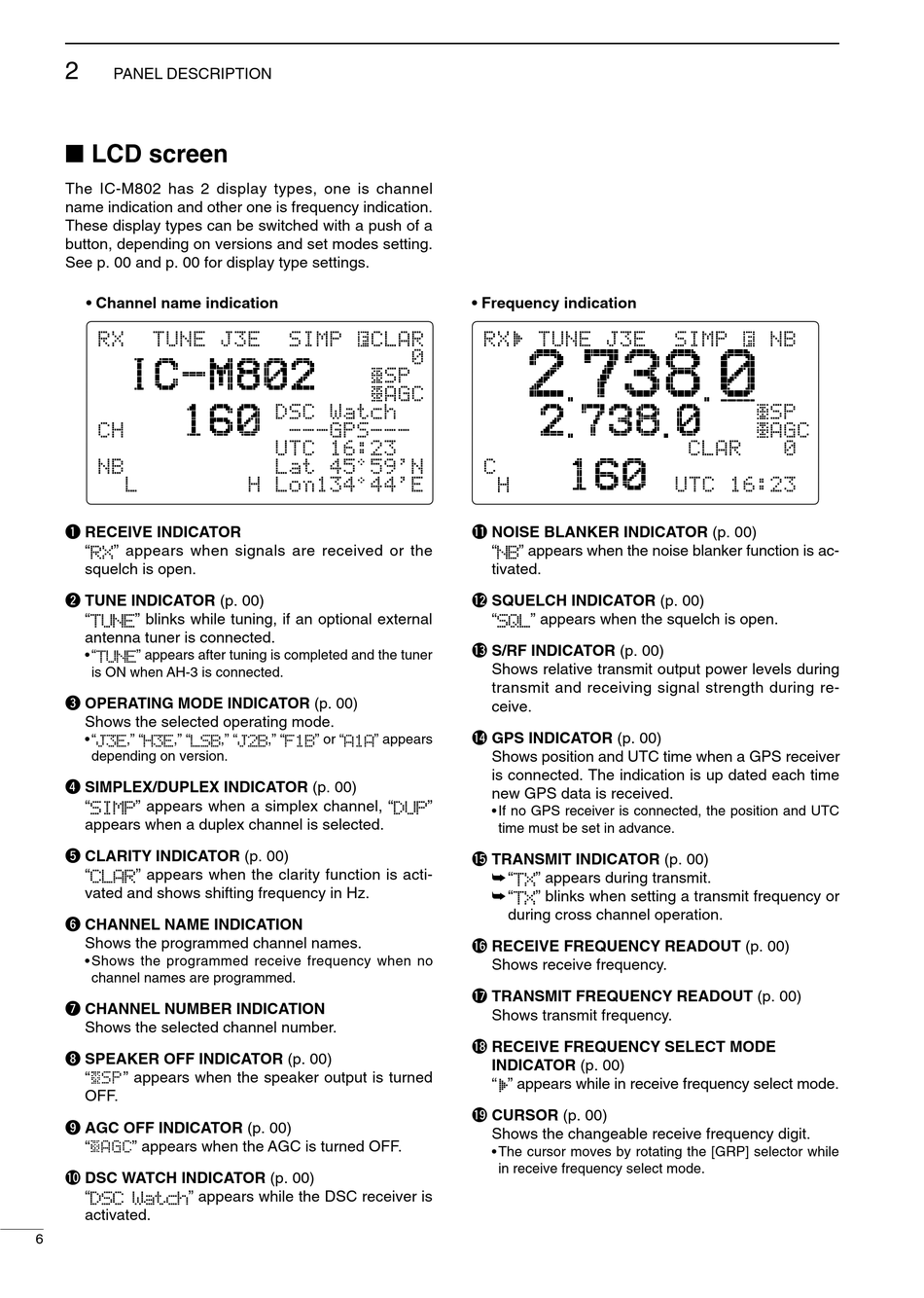

I LCD screen

The IC-M802 has 2 display types, one is channel
name indication and other one is frequency indication.
These display types can be switched with a push of a
button, depending on versions and set modes setting.
See p. 00 and p. 00 for display type settings.
• Channel name indication
R X T U N E J 3 E
C H
N B
L
q RECEIVE INDICATOR
"RX" appears when signals are received or the
squelch is open.
w TUNE INDICATOR (p. 00)
"TUNE" blinks while tuning, if an optional external
antenna tuner is connected.
• "TUNE" appears after tuning is completed and the tuner
is ON when AH-3 is connected.
e OPERATING MODE INDICATOR (p. 00)
Shows the selected operating mode.
• "J3E," "H3E," "LSB," "J2B," "F1B" or "A1A" appears
depending on version.
r SIMPLEX/DUPLEX INDICATOR (p. 00)
"SIMP" appears when a simplex channel, "DUP"
appears when a duplex channel is selected.
t CLARITY INDICATOR (p. 00)
"CLAR" appears when the clarity function is acti-
vated and shows shifting frequency in Hz.
y CHANNEL NAME INDICATION
Shows the programmed channel names.
• Shows the programmed receive frequency when no
channel names are programmed.
u CHANNEL NUMBER INDICATION
Shows the selected channel number.
i SPEAKER OFF INDICATOR (p. 00)
" S P " appears when the speaker output is turned
OFF.
o AGC OFF INDICATOR (p. 00)
" A G C " appears when the AGC is turned OFF.
!0 DSC WATCH INDICATOR (p. 00)
"DSC Watch" appears while the DSC receiver is
activated.
6
S I M P C L A R
0
S P
A G C
D S C W a t c h
- - - G P S - - -
U T C 1 6 : 2 3
L a t 4 5 5 9 ' N
H L o n 1 3 4 4 4 ' E
• Frequency indication
R X å T U N E J 3 E
C
H
!1 NOISE BLANKER INDICATOR (p. 00)
"NB" appears when the noise blanker function is ac-
tivated.
!2 SQUELCH INDICATOR (p. 00)
"SQL" appears when the squelch is open.
!3 S/RF INDICATOR (p. 00)
Shows relative transmit output power levels during
transmit and receiving signal strength during re-
ceive.
!4 GPS INDICATOR (p. 00)
Shows position and UTC time when a GPS receiver
is connected. The indication is up dated each time
new GPS data is received.
• If no GPS receiver is connected, the position and UTC
time must be set in advance.
!5 TRANSMIT INDICATOR (p. 00)
➥ "TX" appears during transmit.
➥ "TX" blinks when setting a transmit frequency or
during cross channel operation.
!6 RECEIVE FREQUENCY READOUT (p. 00)
Shows receive frequency.
!7 TRANSMIT FREQUENCY READOUT (p. 00)
Shows transmit frequency.
!8 RECEIVE FREQUENCY SELECT MODE
INDICATOR (p. 00)
"å" appears while in receive frequency select mode.
!9 CURSOR (p. 00)
Shows the changeable receive frequency digit.
• The cursor moves by rotating the [GRP] selector while
in receive frequency select mode.
S I M P N B
S P
A G C
C L A R 0
U T C 1 6 : 2 3
