8.2 Network

8.2.1 IP Settings

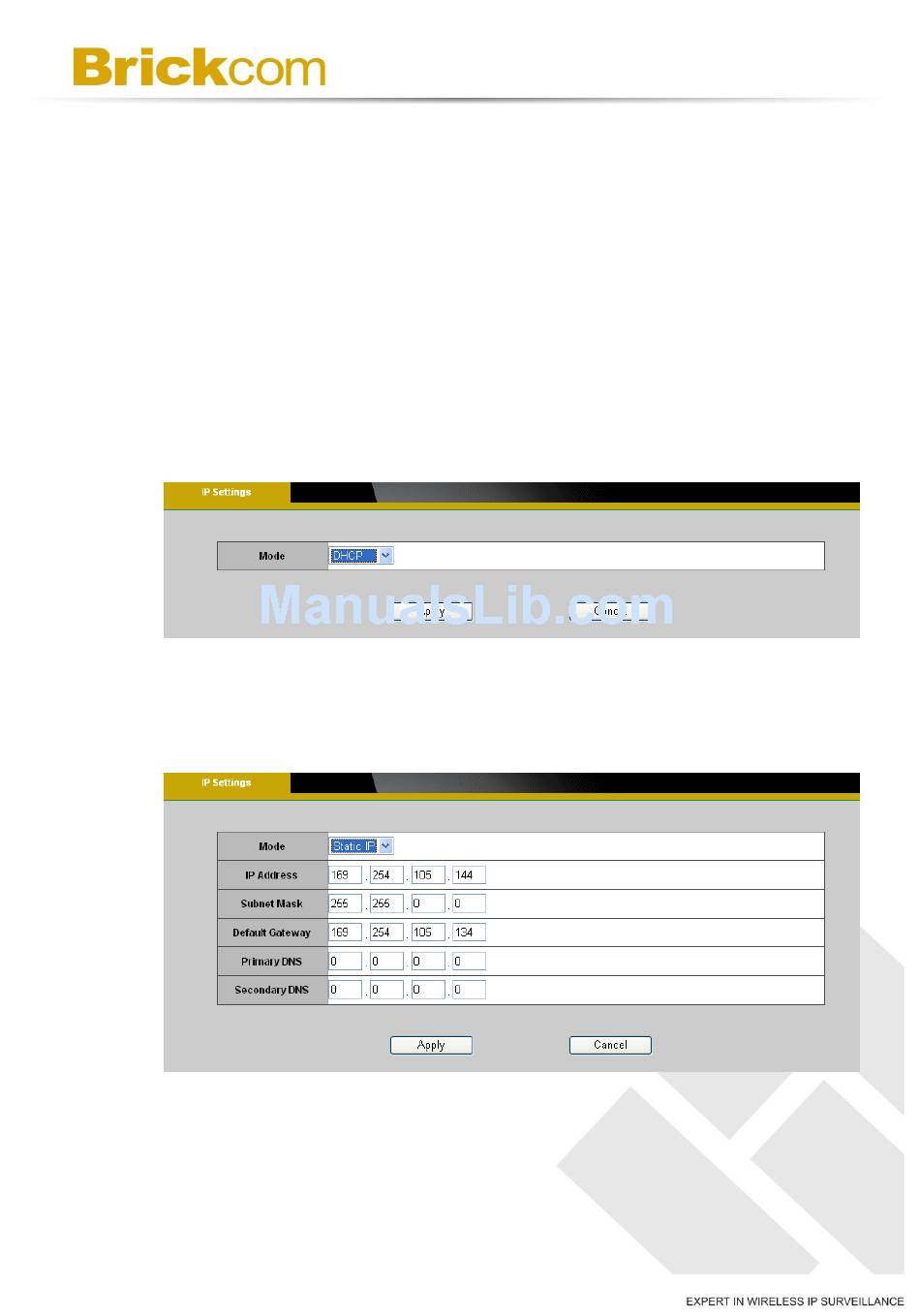

This section explains how to configure a wired network connection for the
camera. There are several ways to setup the camera over the Internet: (1)
obtain an available dynamic IP address assigned by a DHCP server, (2) use a
static IP, or use PPPoE (Point-to-point over Ethernet). Select the desire setup
mode from the IP settings drop-down menu.
a. DHCP – If this option is selected, the camera will automatically obtain
an available dynamic IP address from the DHCP server each time it
connects to the LAN.
b. Static IP - Select this option to manually assign a static IP address to
the camera. Enter the static IP address, Subnet mask, Default Gateway,
Primary and Secondary DNS provided by the ISP.
