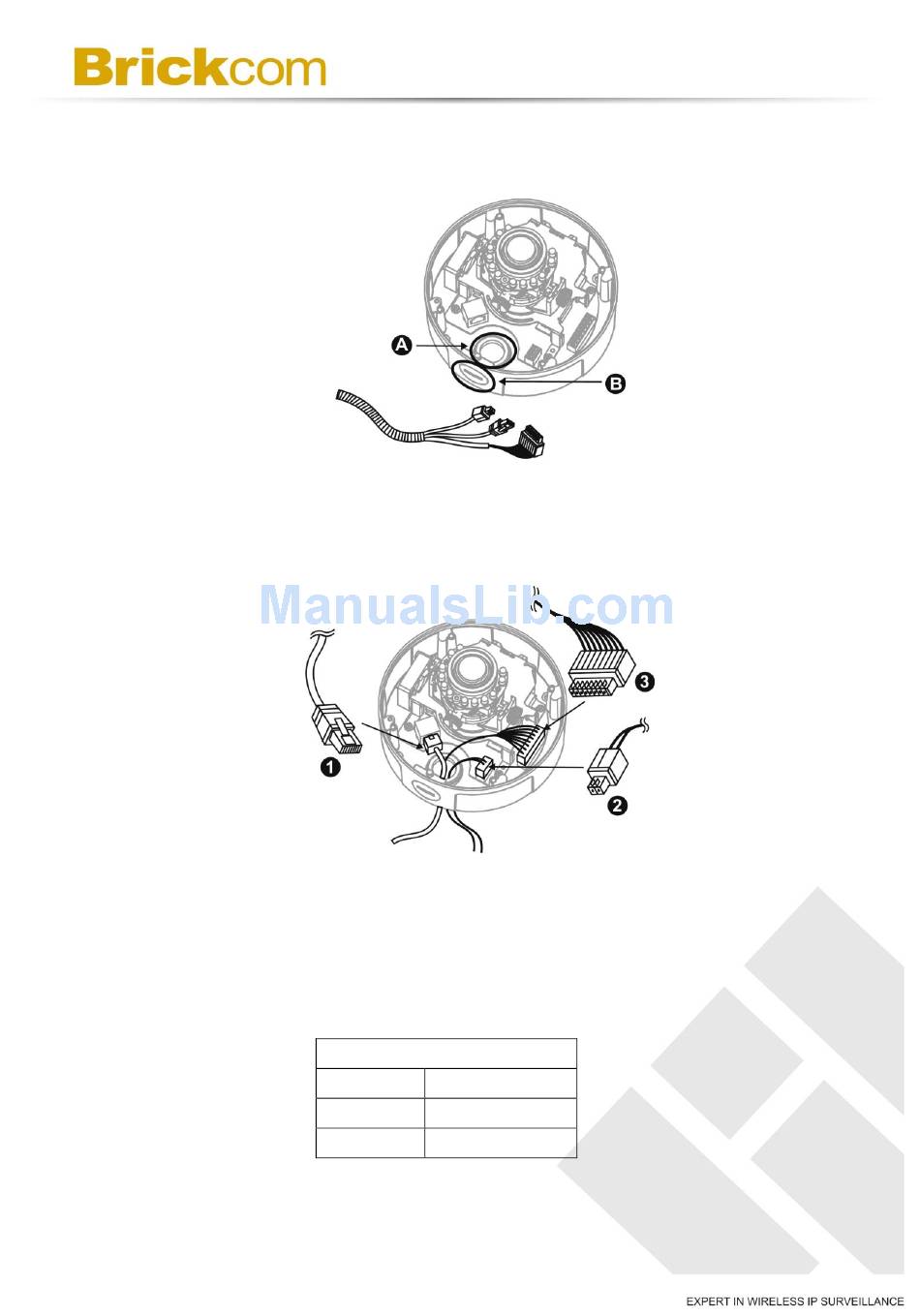

g. POE, Power, DIDO, Audio Connection:
i. Insert the PoE, DIDO, and Audio cable through conduit hole A or B.
ii. Connect the PoE (1), DIDO (2), and Audio (3) Cables to their
respective terminals. See the next page for more details regarding
the DIDO and Audio connection.
1) Power over Ethernet (PoE) Connection
2) Power Adapter Connection
Please refer to the definition of the terminal blocks below. It is
also printed on the motherboard.
Terminal Block
Pin No.
Pin 1
Pin 2
Function
48V
GND
11
