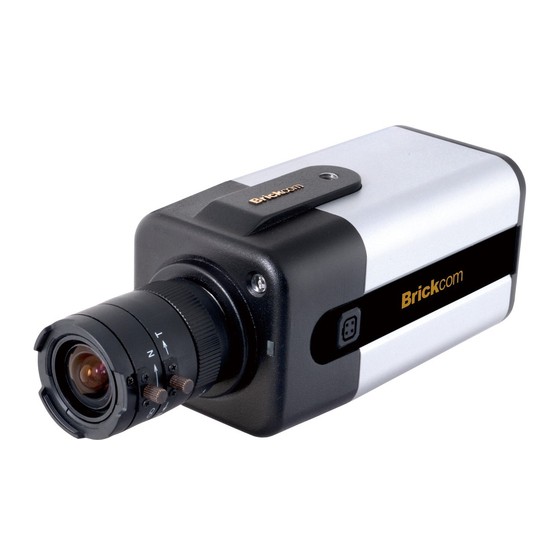

Brickcom FB-100A Quick Installation Manual
Hide thumbs Also See for FB-100A:

Advertisement

Megapixel Day & Night
Fixed Box Network Camera
FB-100A/FB-130A/FB-131A/FB-300A
Series

Quick Installation Guide

Quality Service Group

Advertisement

loading

Summary of Contents for Brickcom FB-100A

  • Page 1: Quick Installation Guide

    Megapixel Day & Night Fixed Box Network Camera FB-100A/FB-130A/FB-131A/FB-300A Series Quick Installation Guide Quality Service Group...
  • Page 2 Read Before You Use Power camera device immediately if it starts smoking or smells unusual. Power camera device immediately camera exposed to rain or liquid. Do not set the camera device near any heat sources. (Ex: television and oven) Keep the camera device away from direct sunlight.
  • Page 3 Do not set the camera device in any wet and humid environments. Do not set the camera device on unsteady surfaces. Do not attempt to dismantle the camera device. Do not drop or hit the camera device. 10. Do not use the camera device when there is lightning.
  • Page 4 1. Check Package Contents a. Network Camera b. CS mount Lens (Optional) (FB-100A/FB-130A/FB-131A/FB-300A) c. Product CD d. Camera Stand e. Warranty Card f. Easy Installation Guide g. Detachable Antenna (Optional) h. Power Adapter (Optional) BNC Adapter (FB-130A only) j. Allen Key...
  • Page 5 2. Device Description <Front Panel> Light Sensor Status LED WPS LED (*) Built-in Microphone <Rear Panel> Ethernet RJ45 10/100 Socket (Link/Power LED embedded) Power Connector (AC24V in) (*) Power Connector Detachable Antenna (*) (DC12V in) Auto Iris Connector (*) WPS Button (*) SD/SDHC Card Slot (*) Extension I/O...
  • Page 6 < Side View > Monitor Output Connector (FB-130A only) (*) These are optional features. Please refer to the Product List for the full list of optional features that are available for this product.
  • Page 7 3. Optional for CS Mount Lens <Optional Lens> <Vari-focal Lens with Manual Iris> --- CS Mount Iris Controller (*) Focus Controller Zoom Controller (*) <Optional Lens> <Vari-focal Lens with Auto Iris (DC Drive)> --- CS Mount Zoom Controller Focus Controller...
  • Page 8 4. Connecting the CS-Mount Lens to the Camera <Vari-focal Lens with Manual Iris> --- Optional Lens Connect the CS-mount lens to the camera by turning it clockwise onto the camera mount until it stops. If necessary, adjust the iris controller, focus controller, and zoom controller to get the best resolution.
  • Page 9 <Vari-focal Lens with Auto Iris> --- Optional Lens Connect the CS-mount lens to the camera by turning it clockwise onto the camera mount until it stops. If necessary, adjust the iris controller, focus controller, and zoom controller to get the best resolution. Connect the lens cable plug (DC Iris control cable) to the camera side connector.
  • Page 10 To adjust the CS-ring: If the fixed box is still not focusing correctly on the target, use an Allen Key to adjust the location of the CS-ring, then try focusing again. NOTE - For further information of vari-focal lens with auto iris, please refer to the supplied lens’...
  • Page 11 <Connect a Monitor to the Camera: (FB-130A only)> Use a BNC adapter to view the camera’s video feed and manually adjust the lens iris, focus, and zoom to get the desired image quality. Connect the BNC adapter to the side of the camera. Connect the monitor to the BNC adapter.
  • Page 12 5. Camera Connection Basic Connection (Without PoE) To attach external devices, such as sensors and alarms, connect them to the extension I/O terminal block. Connect the camera to a switch using an Ethernet cable. Connect the supplied power cable to the camera and plug it into a power outlet.
  • Page 13 Power over Ethernet (PoE) Connection The FB-100A is PoE compliant, so there are two options for connecting the camera to a power and Ethernet source. The camera can either be connected to a PoE-enabled switch or a non-PoE switch. A. If using a PoE-enabled switch: Use a single Ethernet cable to connect the camera to the PoE-enabled switch.
  • Page 14 1. Insert the Installation CD into the CD-ROM driver. Run Auto-Run Tool directly from the CD-ROM to start the installation. When installing the Brickcom software kit for the first time, select a desired language for the interface. The available languages are listed in the scroll box. Click <Install>...
  • Page 15 2. To launch EasyConfig or PC-NVR Standard, select the application and click <Finish>. When launching the PC-NVR program, please refer to the PC-NVR user manual.
  • Page 16 If Custom Setup type was used in the software installation and an EasyConfig icon was not installed on the desktop, the program will be installed under C:\Program Files\Brickcom\EasyConfig unless the program was saved to a preferred directory. 1. Click <Start> to continue. The program will automatically search for the camera in the intranet.
  • Page 18 2. Select either “Simple Mode” or “Professional Mode” to obtain the camera’s IP settings. If “Simple Mode” is selected, EasyConfig will set up the connection automatically. If “Professional Mode” is selected, the user will need to configure the IP settings manually. 3.
  • Page 19 4. Enter the username and password of the camera. For first time use, the default username and password are “admin/admin.” 5. For configuring the IP address settings, select either <Settings remain the same>, <Automatically obtain an IP Address (DHCP)> or <Set IP Address configuration manually>. The DHCP setting is recommended.
  • Page 20 a. If <Set IP Address configuration manually> is selected, the following pages will be displayed.
  • Page 21 *If desired, click <Skip> to skip this setting. EasyLink is a unique Brickcom function which allows users to assign a unique EasyLink name to their network camera’s IP address. There is no need to configure the router to open up ports or remember hard-to-memorize IP addresses.
  • Page 22 7. When the IP address settings have been configured, the screen will either display a successful or failed connection message. If the connection failed, either try again or quit the installation. a. If “DHCP IP address settings” was selected, the failure page will be displayed as below: b.
  • Page 23 c. If the connection was successful, the user will see the message: “Congratulations. The installation of the camera is complete.” When this window is displayed, click <PC-NVR> to start the PC-NVR program, <Live View> to view the live video from the connected IP camera, or <X>...
