- Page 1 Hardware User’s Manual Megapixel Day & Night Fixed Dome Network Camera Quality Service Group Fixed Dome Series...
- Page 2 1. Separate User Manual into HW and SW. 2. Merge FD-300Ap/ FD-130Np/ FD-502A series into this User Manual. Product name: Network Camera (Fixed Dome series) Release Date: 2011/09 Manual Revision: Web site: www.brickcom.com technical@brickcom.com Email: info@brickcom.com © 2011 Brickcom Corporation. All Rights Reserved...
-
Page 3: Table Of Contents
Table of Contents Before You Use This Product ..................1 Regulatory Information ....................2 Chapter 1 - Package Contents ..................3 Chapter 2 - Fixed Dome Network Camera Overview........... 4 Chapter 3 - Device Appearance Description ............... 5 Chapter 4 - LED Behavior ..................... 6 Chapter 5 - Installation .................... -
Page 4: Before You Use This Product
Before You Use This Product In many countries, there are laws prohibiting or restricting the use of surveillance devices. This Network Camera is a high-performance, web-ready camera which can be part of a flexible surveillance system. It is the user’s responsibility to ensure that the operation of this camera is legal before installing this unit for its intended use. -
Page 5: Regulatory Information
Regulatory Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 6: Chapter 1 - Package Contents
Chapter 1 - Package Contents a. Network Camera b. Terminal Block (Fixed Dome series) c. Product CD d. Location Sticker e. Warranty Card f. Screw Bag g. Easy Installation Guide h. L-WM-01(Optional) -
Page 7: Chapter 2 - Fixed Dome Network Camera Overview

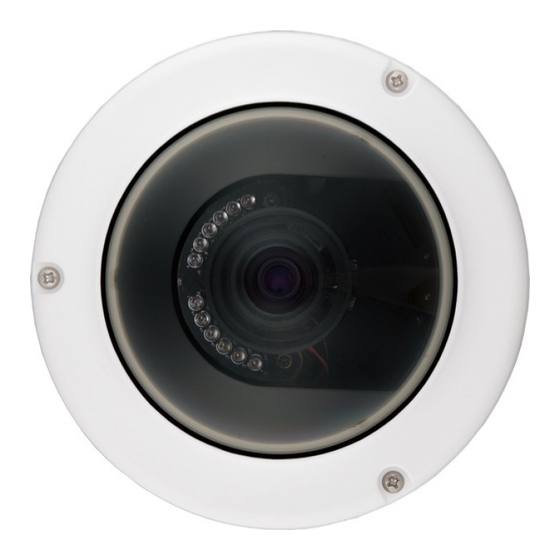

Chapter 2 - Fixed Dome Network Camera Overview The FIXED DOME SERIES is a full-featured, 3-axis, fixed-dome, network camera. With a megapixel progressive sensor and built-in IR-cut filter/ IR illuminator LEDs/ Auto Light sensor, it can provide 24-hour, indoor surveillance. The FIXED DOME SERIES features a wide-angle and vari-focal lens, which offers wide view coverage of all angles. -
Page 8: Chapter 3 - Device Appearance Description
Chapter 3 - Device Appearance Description 1. Below “ Device Appearance Description” is for FD-130Np/FD-502A-series 2. Below “ Device Appearance Description” is for FD-300Ap... -
Page 9: Chapter 4 - Led Behavior
Chapter 4 - LED Behavior Function LED Behavior Description Power LED Continuous illumination Power on Power LED Unit Power off Link LED Continuous illumination (Orange) Link Link LED Blinking (Orange) Connecting < Extension I/O Terminal Block > The Network Camera provides an extension I/O terminal block which is used to connect the camera with external input/output devices. - Page 10 < Hardware Reset > Reset Button The Reset Button can be used to reboot the camera or restore it to factory default settings. If the camera experiences a problem, rebooting the camera may correct the problem. If the problem remains, please restore the camera to factory default settings and reinstall the software.
-
Page 11: Chapter 5 - Installation
Chapter 5 - Installation 5.1 Hardware Installation A.Remove the dome cover from the camera device PoE, Power, DIDO, Audio Connection Insert the PoE(1) / DC12V(2), DIDO and Audio cable(3) through conduit hole A or B. - Page 12 a. PoE, Power, DIDO, Audio Connection Connect the PoE (1)/ DC 12V (2), DIDO and Audio (3) Cables to their respective terminals. See the next page for more details regarding the DIDO and Audio connection. 1) Power over Ethernet (PoE) Connection 2) Power Adapter Connection Please refer to the definition of the terminal blocks below.
- Page 13 ll. For SD/SDHC card (*) installation: NOTE – The SD/SDHC card is not included in the product package and needs to be purchased separately. B.For wall installation: 1) Chose the location on the wall to place the camera. Attach the location sticker to the desired spot.
- Page 14 4) Mount the camera on the wall and position to two screw slots over the plastic anchors. Insert the screams into the holes and use the screwdriver to tighten the screws clockwise until they are secure. 5) Place the dome cover back on the camera device.
- Page 15 C. For ceiling installation: The user needs the two screws which are included in the product package and a screwdriver. Mount the camera on the desired location and use the screwdriver to tighten the screws clockwise through the two holes on each side of the device as shown below.
- Page 16 ii. Release the tilt screw on both side of the device and then rotate the lens to up or down. After completion, tighten the tilt screw. iii. Release the video adjustment screw and then adjust the lens direction. After completion, tighten the video adjustment screw.
- Page 17 b. How to adjust the view angle and focus range i. Release the view angle controller and then moving the controller bar left or right to adjust the view angle. After completion, tighten the view angle controller. ii. Release the focus controller and then moving the controller bar left or right to adjust the focus range.
-
Page 18: Camera Connection
5.2 Camera Connection F. Basic Connection (Without PoE) a. Connect the power adaptor to the camera device. b. Connect the camera to the Ethernet hub using a RJ45 Ethernet cable. G. Power over Ethernet (PoE) Connection a. Connect the camera to a PoE-enabled hub via single Ethernet cable. b. -
Page 19: System Requirements
5.3 System Requirements Operating System: Microsoft Windows XP Home Edition SP2 Microsoft Windows XP Professional SP2 Computer: IBM PC/AT Compatible CPU: Pentium 3GHz or faster Memory: 1024 MB or more Monitor: 1024 x 768 pixels or more, 24-bit True color or better Network Interface: 10/100Mbps Network interface card must be installed Web Browser:... -
Page 20: Software Installation
A. Insert the Installation CD into the CD-ROM driver. Run Auto-Run Tool directly from the CD-ROM to start the installation. When installing the Brickcom software kit for the first time, select a desired language for the interface. The available languages are listed in the scroll box. Click <Install>... - Page 21 B. In the Install Shield Wizard dialog box, click <Next> to continue. C. Read the End-User License Agreement and check the option “I accept the terms of the license agreement”. Click <Next> to continue.
- Page 22 D. Select either “Complete” setup or “Custom” setup to install the system. a. If COMPLETE SETUP is selected: i. All program features will be installed into the default directory. Check the option “Complete” and then click <Next>. ii. Click <Change> to change the appointed folder where installation and program files will be stored.
- Page 23 iii. Select to create shortcuts. Click <Next> to continue. iv. The installation information will be displayed. Click <Next> to continue.
- Page 24 v. To launch EasyConfig or PC-NVR Standard, select the application and click <Finish>. When launching the PC-NVR program, please refer to the PC-NVR user manual. b. If CUSTOM SETUP is selected: i. This option is recommended for advanced users. It can be used to install the system to a preferred directory or to select specific program feature(s).
- Page 25 iii. Select the features to install. Click <Next> to continue. iv. Click <Change> to change the appointed folder where installation and program files will be stored. Click <Next> to continue.
- Page 26 v. Select programs to create shortcuts. Click <Next> to continue. vi. The installation information will be displayed. Click <Next> to continue.
- Page 27 E. To launch EasyConfig or PC-NVR Standard, select the application and click <Finish>. When launching the PC-NVR program, please refer to the PC-NVR user manual.
-
Page 28: Easyconfig
If Custom Setup type was used in the software installation and an EasyConfig icon was not installed on the desktop, the program will be installed under C:\Program Files\Brickcom\EasyConfig unless the program was saved to a preferred directory. A. Click <Start> to continue. The program will automatically search for the camera in the intranet. - Page 30 B. Select either “Simple Mode” or “Professional Mode” to obtain the camera’s IP settings. If “Simple Mode” is selected, EasyConfig will set up the connection automatically. If “Professional Mode” is selected, the user will need to configure the IP settings manually.
- Page 31 C. There may be many cameras in the local network. Differentiate the cameras using their UPnP name. Double click on the camera from the survey list to connect. D. For configuring the IP address settings, select either <Settings remain the same>, <Automatically obtain an IP Address (DHCP)>...
- Page 32 If <Set IP Address configuration manually> is selected, the following pages will be displayed.
- Page 33 Otherwise, this page will not be shown. *If desired, click <Skip> to skip this setting. EasyLinkTM is a unique Brickcom function which allows users to assign a unique EasyLink name to their network camera’s IP address. There is no...
- Page 34 F. When the IP address settings have been configured, the screen will either display a successful or failed connection message. If the connection failed, either try again or quit the installation. a. If “DHCP IP address settings” was selected, the failure page will be displayed as below: b.
- Page 35 c. If the connection was successful, the user will see the message: “Congratulations. The installation of the camera is complete.” When this window is displayed, click <PC-NVR> to start the PC-NVR program, <Live View> to view the live video from the connected IP camera, or <X>...
