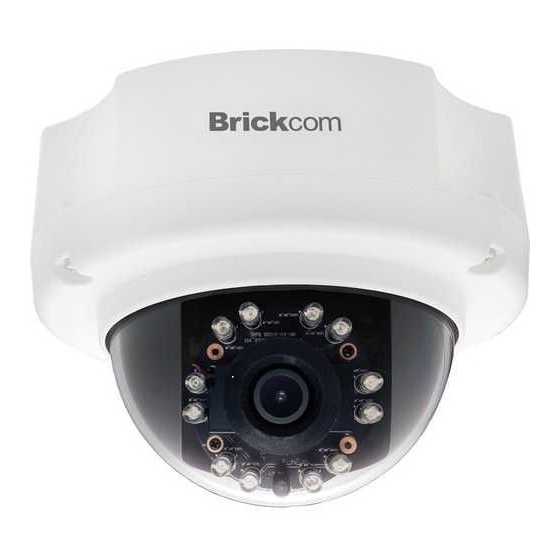

- Page 1 Easy Installation Guide Megapixel Day & Night Vandal Dome Network Camera VD-E200Af VD-E200Nf English...
-
Page 2: Package Contents
Package Contents Please check to make sure the product package contains all the accessories listed below. A. Network Camera B. Product CD C. Allen Key D. Screw Bag Easy Installation Guide Alignment Sticker... -
Page 3: Hardware Installation
Hardware Installation WARNING: Do not mount the camera on a soft material. The camera may fall and be damaged. Step 1. Camera Installation Use the enclosed Allen key to detach the dome cover from the camera device. Hammer the three plastic anchors which are provided in the product package into the three location holes. - Page 4 Step 2. Camera Connection The camera is DC12V and PoE compliant, so there are two options for connecting the camera to a power and Ethernet source. The camera can either be connected to a PoE-enabled switch or a non-PoE switch. A.
- Page 5 Use an RJ-45 cable to connect the camera to a PoE Injector. Use an RJ-45 cable to connect the PoE Injector to the non-PoE switch. iii. Use a standard power cable to connect the PoE Injector to a power outlet. C.
-
Page 6: Software Installation
Software Installation Step 1. Install the EasyConfig Software Insert the CD into the CD-ROM, and follow the instructions of the InstallShield Wizard to finish installation. Step 2. Launch the EasyConfig Software Launch the EasyConfig software, and click on the camera from the survey list to connect. - Page 7 Follow the EasyConfig software to configure the camera’s IP address and EasyLink settings. Step 3. Installation Completed Click to view the live video feed of the network camera.
