Hardware User's Manual
Megapixel Day & Night
Vandal Dome Network Camera
VD-E200Af/VD-E200Nf Series
Product name:
Release Date:
Version:
Web Site:
Email:
Editor:
Network Camera (VD-E200Af / VD-E200Nf)
2014/9
V1.0
www.brickcom.com
support@brickcom.com
info@brickcom.com
© 2014 Brickcom Corporation. All Rights Reserved
Tracy Cho
Advertisement
Table of Contents
Related Manuals for Brickcom VD-E200Af series
Summary of Contents for Brickcom VD-E200Af series
- Page 1 Hardware User’s Manual Megapixel Day & Night Vandal Dome Network Camera VD-E200Af/VD-E200Nf Series Product name: Network Camera (VD-E200Af / VD-E200Nf) Release Date: 2014/9 Version: V1.0 Web Site: www.brickcom.com support@brickcom.com Email: info@brickcom.com © 2014 Brickcom Corporation. All Rights Reserved Editor: Tracy Cho...
-
Page 2: Table Of Contents
Table of Contents Before You Use This Product ..................1 FCC Warning ........................2 Regulatory Information ....................3 Chapter 1 - Package Contents ..................4 Chapter 2 - Vandal Dome Network Camera Overview ..........5 Chapter 3 - Device Appearance Description ............... 6 Chapter 4 - LED Behavior ..................... -
Page 3: Before You Use This Product
Before You Use This Product In many countries, there are laws prohibiting or restricting the use of surveillance devices. This Network Camera is a high-performance, web-ready camera which can be part of a flexible surveillance system. It is the user’s responsibility to ensure that the operation of this camera is legal before installing this unit for its intended use. -
Page 4: Fcc Warning
FCC Warning This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operations. -
Page 5: Regulatory Information
Regulatory Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 6: Chapter 1 - Package Contents
Chapter 1 - Package Contents A. Network Camera B. Product CD C. Allen Key D. Screw Bag E. Easy Installation Guide F. Alignment Sticker NOTE - The feature or function with the asterisk (*) is optional. Please refer to the datasheet for the list of features and functions that are available for this product. -
Page 7: Chapter 2 - Vandal Dome Network Camera Overview

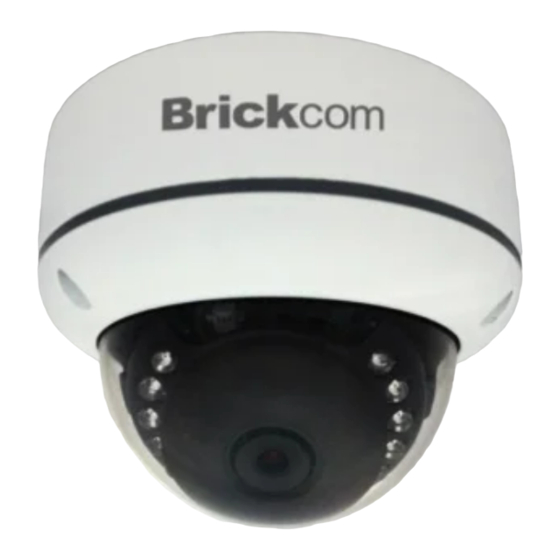

Chapter 2 - Vandal Dome Network Camera Overview The VD-E200Af / VD-E200Nf vandal dome network camera features the 2-megapixel CMOS sensor, IR-cut filter, IR LEDs, auto light sensor, and is designed to provide the 24-hour indoor and outdoor surveillance. The VD-E200Af / VD-E200Nf is designed to provide the high-quality video feed for security system. -
Page 8: Chapter 3 - Device Appearance Description
Chapter 3 - Device Appearance Description LENS Light Sensor IR LEDs RJ45 Ethernet Port DC12V Power Input NOTE The feature or function with the asterisk (*) is optional. Please refer to the datasheet for the list of features and functions that are available for this product. -
Page 9: Chapter 4 - Led Behavior
Chapter 4 - LED Behavior Function LED Behavior Description Ethernet Link Continuous illumination (Green) Ethernet Connected Data Link Blinking (Orange) Data Transmitting... -
Page 10: Chapter 5 - Hardware Reset
Chapter 5 - Hardware Reset Reset Button The Reset Button can be used to restore the camera to factory default settings. If the camera experiences a problem, rebooting the camera may correct the problem. If the problem remains, please restore the camera to factory default settings and set it up again. -
Page 11: Chapter 6 - System Requirements
Chapter 6 - System Requirements Operating System: Microsoft Windows, ONVIF Supported NVR system CPU: Pentium 3GHz or faster Network Interface: 10/100Mbps Network interface card must be installed Web Browser: Microsoft Internet Explorer, Firefox, Chrome... -
Page 12: Chapter 7 - Installation
Chapter 7 - Installation 7.1 Hardware Installation Use the enclosed Allen key to detach the dome cover from the camera device. Put the three waterproof rubbers which are provided in the product package into the location holes. Hammer the three plastic anchors which are provided in the product package into the three location holes. -
Page 13: Camera Connection
7.2 Camera Connection VD-E200Af / VD-E200Nf is DC12V and PoE compliant, so there are two options for connecting the camera to a power and Ethernet source. The camera can either be connected to a PoE-enabled switch or a non-PoE switch. If using a PoE-enabled switch: Use a single Ethernet cable to connect the camera to the PoE-enabled switch. - Page 14 If using the DC12V power supply. The RJ45 Ethernet cable will be for data transmission only.
-
Page 15: Software Installation
A. Insert the Installation CD into the CD-ROM driver. Run Auto-Run Tool directly from the CD-ROM to start the installation. When installing the Brickcom software kit for the first time, select a desired language for the interface. The available languages are listed in the scroll box. - Page 16 B. In the Install Shield Wizard dialog box, click <Next> to continue. C. Read the End-User License Agreement and check the option “I accept the terms of the license agreement”. Click <Next> to continue.
- Page 17 D. Click <Change> to change the appointed folder where installation and program files will be stored. Click <Next> to continue. E. Select to create shortcuts. Click <Next> to continue.
-
Page 18: Launch Easyconfig
Select the application and click <Finish>. When launching the PC-NVR program, please refer to the PC-NVR user manual. 7.4 Launch EasyConfig Users can search cameras by EasyConfig and configure the settings below: IP address configuration Easylink configuration Live View &... - Page 19 Files\Brickcom\EasyConfig”. NOTE - Check <Skip the hardware installation guide> to skip checking the hardware connection. To check the hardware installation settings, do not check the option box. 1. Click <Start> to continue. The program will automatically search for the camera in...
- Page 21 2. Select either <Simple Mode> or <Professional Mode> to obtain the camera’s IP settings. If <Simple Mode> is selected, EasyConfig will set up the connection automatically. If <Professional Mode> is selected, the user will need to configure the IP settings manually. 3.
- Page 22 4. Enter the username and password of the camera. For the first-time use, the default username and password are “admin/admin.” 5. For configuring the IP address settings, select either <Settings remain the same>, <Automatically obtain an IP Address (DHCP)> or <Set IP Address configuration manually>.
- Page 23 6. If <Set IP Address configuration manually> is selected, the following pages will be displayed.
- Page 24 Otherwise, this window will not be shown. *If desired, click <Skip> to skip this setting. EasyLink is a unique Brickcom function which allows users to assign a unique EasyLink name to map to the network camera’s...
- Page 25 8. When the IP address settings have been configured, the screen will either display a successful or failed connection message. If the connection failed, either try again or quit the installation. If “DHCP IP address settings” was selected, the failure window will be displayed as below.
- Page 26 If the connection was successful, the user will see the message: <Congratulations. The installation of the camera is complete.> 9. When this window is displayed, click <PC-NVR> to start the BRC64 program, <Live View> to view the live video from the connected IP camera, or <X> in the top right corner of the screen to close the installation window.
-
Page 27: Chapter 8 - Accessing The Network Camera
Chapter 8 - Accessing the Network Camera 8.1 Check Network Settings The camera can be connected either before or immediately after the software installation. The Administrator should complete the network settings on the configuration page, including entering the correct Subnet Mask, Default Gateway, primary DNS and Secondary DNS. -
Page 28: Viewing Video Streams With Internet Explorer
8.3 Viewing Video Streams with Internet Explorer Step1. Check the Video Stream Settings On the camera's web UI, please go to Configuration → Camera/Video/Audio → Video, and you will find the stream settings. Please select the desired setting from the drop-down menus to meet the application requirements. -
Page 29: Chapter 9 - Viewing Video Streams With Brc64
Chapter 9 - Viewing Video Streams with BRC64 Step1. Launch BRC64 Double click on the Windows desktop to launch BRC64, or click it on the program menu. Please make sure the version of BRC64 is v1.2.4.144 or above. Step2. Search for the Camera Click on the control panel to start searching for the cameras on the LAN. - Page 30 Step3. View Stream For each video stream you want to view, please select the camera item on the control panel. Then, drag and drop it to the video matrix for live view.
