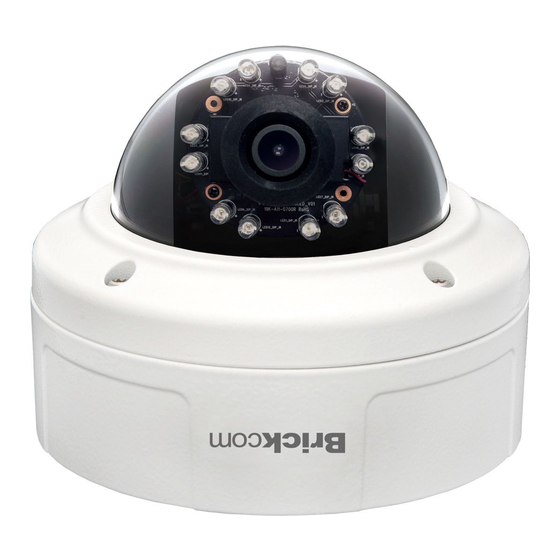

Brickcom VD-131Af Specifications

Megapixel Day & Night
Vandal Dome Network Camera
VD-131Af
Photo Indication & Dimension Diagram
d
▪ Megapixel High Resolution Outdoor Vandal Dome Camera
▪ HDTV Quality (Full HD 800p @ 25fps Streaming)
▪ Cost Effective/ Full Features Camera
▪ Easy Installation Dome Type Camera, Suitable for Project
▪ Build In IR Leds, effective up to 10 m
▪ MPEG-4, MJPEG and H.264 Triple Codec Compression
▪ Intelligent Multi-Profile Sensor Management
▪ Removable IR-cut Filter / Auto Light Sensor for Day and Night
▪ 1 DI/DO for External Alarm and Sensor Device
▪ Two-way Audio
▪ IK10 Vandal Proof and IP67 Weather Proof Outdoor Enclosure
▪ Power over Ethernet / DC 12V Power Input
LEDs
RJ45 Connector
(For Ethernet and PoE)
Conduit Plug and Hole
Fixed Lens
HDTV 800p ● Cost Effective
Profile
Management
POE
®
for Different Environments
Tilt Screw
Reset Button
Terminal Block (for Audio in/out, DIDO)
Terminal Block (for Power DC12V, 1A)
