Megapixel Day & Night

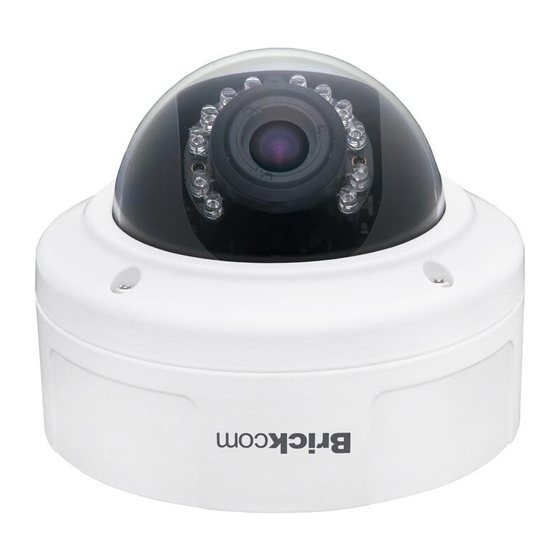

Vandal Dome Network Camera
VD-100A/VD-130A V2 Series
Quick Installation Guide
Quality Service Group
Advertisement
Related Manuals for Brickcom VD-100A
Summary of Contents for Brickcom VD-100A
-
Page 1: Quick Installation Guide
Megapixel Day & Night Vandal Dome Network Camera VD-100A/VD-130A V2 Series Quick Installation Guide Quality Service Group... - Page 2 Read Before You Use 1. Power off the camera device immediately if it starts smoking or smells unusual. 2. Power off the camera device immediately if the camera is exposed to rain or liquid. 3. Do not set the camera device near any heat sources.
- Page 3 6. Do not set the camera device in any wet and humid environments. 7. Do not set the camera device on unsteady surfaces. 8. Do not attempt to dismantle the camera device. 9. Do not drop or hit the camera device. 10.
- Page 4 1. Check Package Contents a. Network Camera b. Dry bag, Strap Tie (VD-100A/VD-130A) c. Product CD d. Location Sticker e. Warranty Card f. Screws Bag g. Terminal Block h. Allen Key i. Easy Installation Guide j. High Power PoE (Optional)
- Page 5 2. Device Description LENS IR LEDs RJ45 Connector Tilt Screw Reset Button DIDO, Audio Terminal Block DIDO, Audio Terminal Block Video Adjustment Screw Power Terminal Block Conduit Plug and Conduit Hole...
- Page 6 Focus Control Bar View Angle Control Bar SD/SDHC Card Slot (*) SD Card Capacity (*) The network camera is compatible with SD/SDHC (Maximum 32GB) cards. NOTE - (*) These are optional features. Please refer to the Product List for the full list of optional features that are available for this product.
- Page 7 3. Hardware Installation Remove the vandal dome cover: 3.1 Use the Allen Key to unscrew the four screws and remove the dome cover from the camera device. For SD/SDHC card (*) installation: 3.2 Insert the SD/SDHC card into the SD/SDHC card slot. NOTE –...
- Page 8 For dry bag installation: 3.3 Place the dry bag on the camera device and secure it using the strap tier. Open the conduit hole: 3.4 The conduit hole will allow for air to circulate through the camera device .Use a screwdriver to unscrew either the conduit plug from the side of the camera device.
- Page 9 For ceiling installation: 3.5 Mount the camera device on the desired location. Use the screwdriver from the product package to tighten the four included screws clockwise through the four holes on each side of the device as shown below. The best place to mount the camera is into a ceiling stud.
- Page 10 3.8 Hammer the four plastic anchors which are provided in the product package into the four location holes. 3.9 Mount the camera on the wall and position the four screw slots over the plastic anchors. Insert the screws into the holes and use the screwdriver to tighten the screws clockwise until they are secure.
- Page 11 4. POE, Power, DIDO, Audio Connection 4.1. Insert the PoE, DIDO, and Audio cable through conduit hole A or B. 4.2. Connect the PoE (1), DIDO (2), and Audio (3) Cables to their respective terminals. See the next page for more details regarding the DIDO and Audio connection.
- Page 12 1. Power over Ethernet (PoE) Connection Power Adapter Connection Please refer to the definition of the terminal blocks below. It is also printed on the motherboard. Terminal Block Pin No. Function Pin 1 Pin 2 DIDO and Audio Connection Please refer to the definition of the terminal blocks below. It is also printed on the motherboard.
- Page 13 5. Camera Connection 5.1 Basic Connection (Without PoE) 5.1.1 Connect the camera device to the Ethernet hub using a RJ45 Ethernet cable. 5.1.2 Connect the power adaptor to the camera device. 5.2 Power over Ethernet (PoE) Connection 5.2.1 Connect the camera to a PoE-enabled hub using a single Ethernet cable.
- Page 14 6. Adjust the Lens Focus Range and Zoom Viewing 6.1 Adjust the Lens Angle 6.1.1 The lens can be rotated to the left or right. 6.1.2 Release the tilt screw on both side of the device to rotate the lens up or down. After completion, tighten the tilt screw. 6.1.3 Release the video adjustment screw and to adjust the lens direction.
- Page 15 6.2 Adjust the Viewing Angle and Focus Range 6.2.1 Release the viewing angle controller bar and then slide it left or right to adjust the viewing angle. After completion, tighten the viewing angle controller. 6.2.2 Release the focus controller bar and slide it left or right to adjust the focus range.
- Page 16 1. Insert the Installation CD into the CD-ROM driver. Run Auto-Run Tool directly from the CD-ROM to start the installation. When installing the Brickcom software kit for the first time, select a desired language for the interface. The available languages are listed in the scroll box. Click <Install>...
- Page 17 2. To launch EasyConfig or PC-NVR Standard, select the application and click <Finish>. When launching the PC-NVR program, please refer to the PC-NVR user manual.
- Page 18 If Custom Setup type was used in the software installation and an EasyConfig icon was not installed on the desktop, the program will be installed under C:\Program Files\Brickcom\EasyConfig unless the program was saved to a preferred directory. 1. Click <Start> to continue. The program will automatically search for the camera in the intranet.
- Page 20 2. Select either “Simple Mode” or “Professional Mode” to obtain the camera’s IP settings. If “Simple Mode” is selected, EasyConfig will set up the connection automatically. If “Professional Mode” is selected, the user will need to configure the IP settings manually. 3.
- Page 21 4. Enter the username and password of the camera. For first time use, the default username and password are “admin/admin.” 5. For configuring the IP address settings, select either <Settings remain the same>, <Automatically obtain an IP Address (DHCP)> or <Set IP Address configuration manually>. The DHCP setting is recommended.
- Page 22 a. If <Set IP Address configuration manually> is selected, the following pages will be displayed.
- Page 23 *If desired, click <Skip> to skip this setting. EasyLink is a unique Brickcom function which allows users to assign a unique EasyLink name to their network camera’s IP address. There is no need to configure the router to open up ports or remember hard-to-memorize IP addresses.
- Page 24 7. When the IP address settings have been configured, the screen will either display a successful or failed connection message. If the connection failed, either try again or quit the installation. a. If “DHCP IP address settings” was selected, the failure page will be displayed as below: b.
- Page 25 c. If the connection was successful, the user will see the message: “Congratulations. The installation of the camera is complete.” When this window is displayed, click <PC-NVR> to start the PC-NVR program, <Live View> to view the live video from the connected IP camera, or <X>...
