Brickcom FD-100A Series Quick Installation Manual
Megapixel day & night fixed dome network camera
Hide thumbs
Also See for FD-100A Series:
- User manual (132 pages) ,
- Quick installation manual (29 pages)
Related Manuals for Brickcom FD-100A Series
Summary of Contents for Brickcom FD-100A Series
-
Page 1: Quick Installation Guide

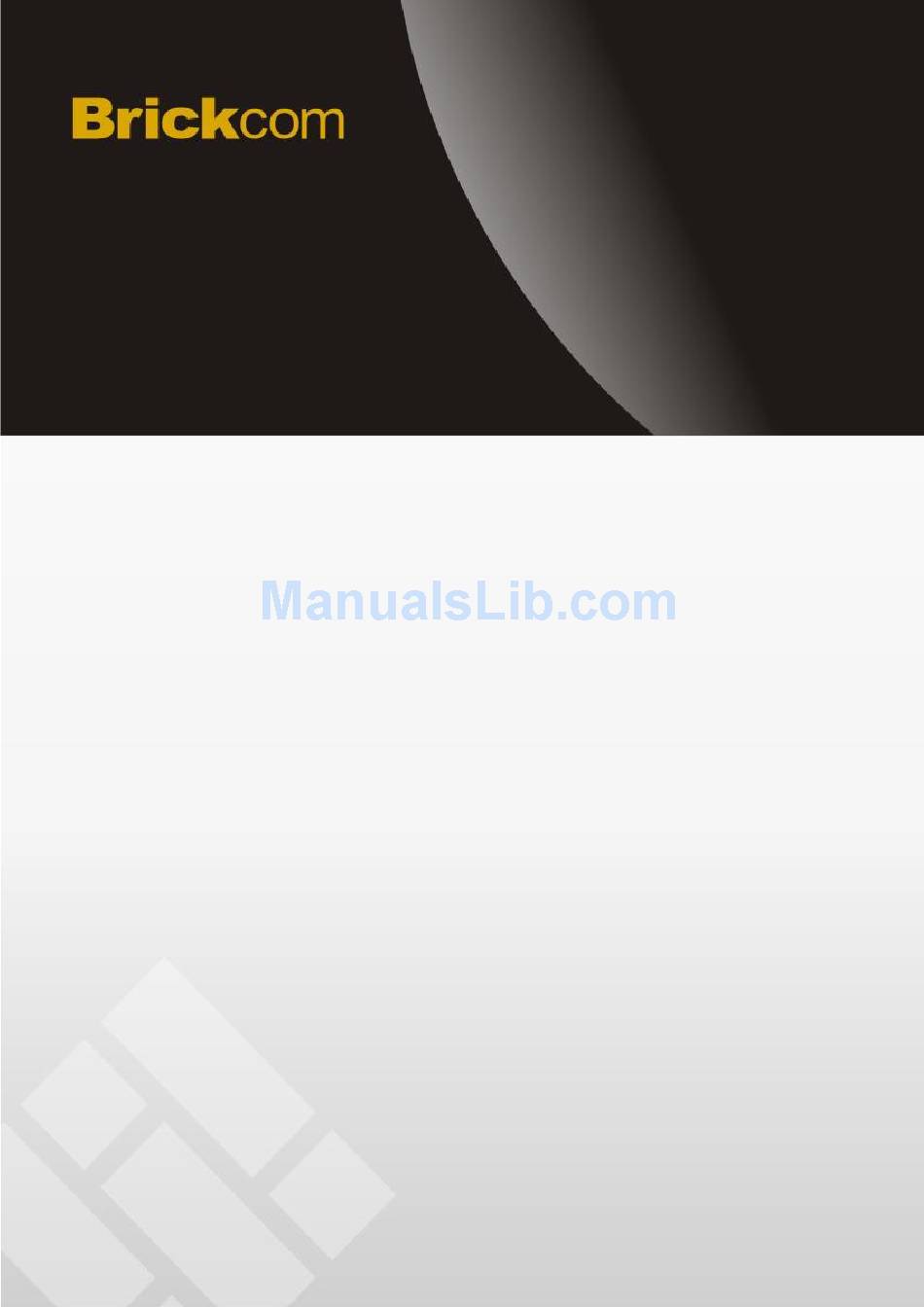

Megapixel Day & Night Fixed Dome Network Camera FD-100A/FD-130A Series Quick Installation Guide Quality Service Group... - Page 2 Read Before You Use 1. Power off the camera device immediately if it starts smoking or smells unusual. 2. Power off the camera device immediately if the camera is exposed to rain or liquid. 3. Do not set the camera device near any heat sources.
- Page 3 6. Do not set the camera device in any wet and humid environments. 7. Do not set the camera device on unsteady surfaces. 8. Do not attempt to dismantle the camera device. 9. Do not drop or hit the camera device. 10.
- Page 4 1. Check Package Contents a. FD-100A b. Power Adapter(Optional) c. Product CD d. Location Sticker e. Warranty Card f. Screws bag g. Easy Installation Guide...
- Page 5 2. Device Description...
- Page 6 3. Hardware Installation 3.1 Remove the dome cover from the camera device. For ceiling installation: 3.2 The user needs the two screws which are included in the product package and a screwdriver. Mount the camera on the desired location and use the screwdriver to tighten the screws clockwise through the two holes on each side of the device as shown below.
- Page 7 For wall installation: 3.3 Chose the location on the wall to place the camera. Attach the location sticker to the desired spot. 3.4 Drill two holes through the center of the two location holes on the sticker. 3.5 Hammer the two plastic anchors which are provided in the product package into the two location holes.
- Page 8 4. Camera Connection 4.1 Basic Connection (Without PoE) 4.1.1 Connect the power adaptor to the camera device. 4.1.2 Connect the camera to the Ethernet hub using a RJ45 Ethernet cable. 4.2 Power over Ethernet (PoE) Connection 4.2.1 Connect the camera to a PoE-enabled hub via single Ethernet cable.
- Page 9 5. Adjust the Lens focus range and zoom viewing 5.1 How to adjust the Lens angle? 5.1.1 Release the pan screw and then rotate the lens to left or right. After completion, tighten the pan screw. 5.1.2 Release the tilt screw on both side of the device and then rotate the lens to up or down.
- Page 10 5.2 How to adjust the view angle and focus range 5.2.1 Release the view angle controller and then moving the controller bar left or right to adjust the view angle. After completion, tighten the view angle controller. 5.2.2 Release the focus controller and then moving the controller bar left or right to adjust the focus range.
- Page 11 1. Insert the Installation CD into the CD-ROM driver. Run Auto-Run Tool directly from the CD-ROM to start the installation. When installing the Brickcom software kit for the first time, select a desired language for the interface. The available languages are listed in the scroll box. Click <Install>...
- Page 12 2. To launch EasyConfig or PC-NVR Standard, select the application and click <Finish>. When launching the PC-NVR program, please refer to the PC-NVR user manual.
- Page 13 If Custom Setup type was used in the software installation and an EasyConfig icon was not installed on the desktop, the program will be installed under C:\Program Files\Brickcom\EasyConfig unless the program was saved to a preferred directory. 1. Click <Start> to continue. The program will automatically search for the camera in the intranet.
- Page 15 2. Select either “Simple Mode” or “Professional Mode” to obtain the camera’s IP settings. If “Simple Mode” is selected, EasyConfig will set up the connection automatically. If “Professional Mode” is selected, the user will need to configure the IP settings manually. 3.
- Page 16 4. Enter the username and password of the camera. For first time use, the default username and password are “admin/admin.” 5. For configuring the IP address settings, select either <Settings remain the same>, <Automatically obtain an IP Address (DHCP)> or <Set IP Address configuration manually>. The DHCP setting is recommended.
- Page 17 a. If <Set IP Address configuration manually> is selected, the following pages will be displayed.
- Page 18 *If desired, click <Skip> to skip this setting. EasyLink is a unique Brickcom function which allows users to assign a unique EasyLink name to their network camera’s IP address. There is no need to configure the router to open up ports or remember hard-to-memorize IP addresses.
- Page 19 7. When the IP address settings have been configured, the screen will either display a successful or failed connection message. If the connection failed, either try again or quit the installation. a. If “DHCP IP address settings” was selected, the failure page will be displayed as below: b.
- Page 20 c. If the connection was successful, the user will see the message: “Congratulations. The installation of the camera is complete.” When this window is displayed, click <PC-NVR> to start the PC-NVR program, <Live View> to view the live video from the connected IP camera, or <X>...
